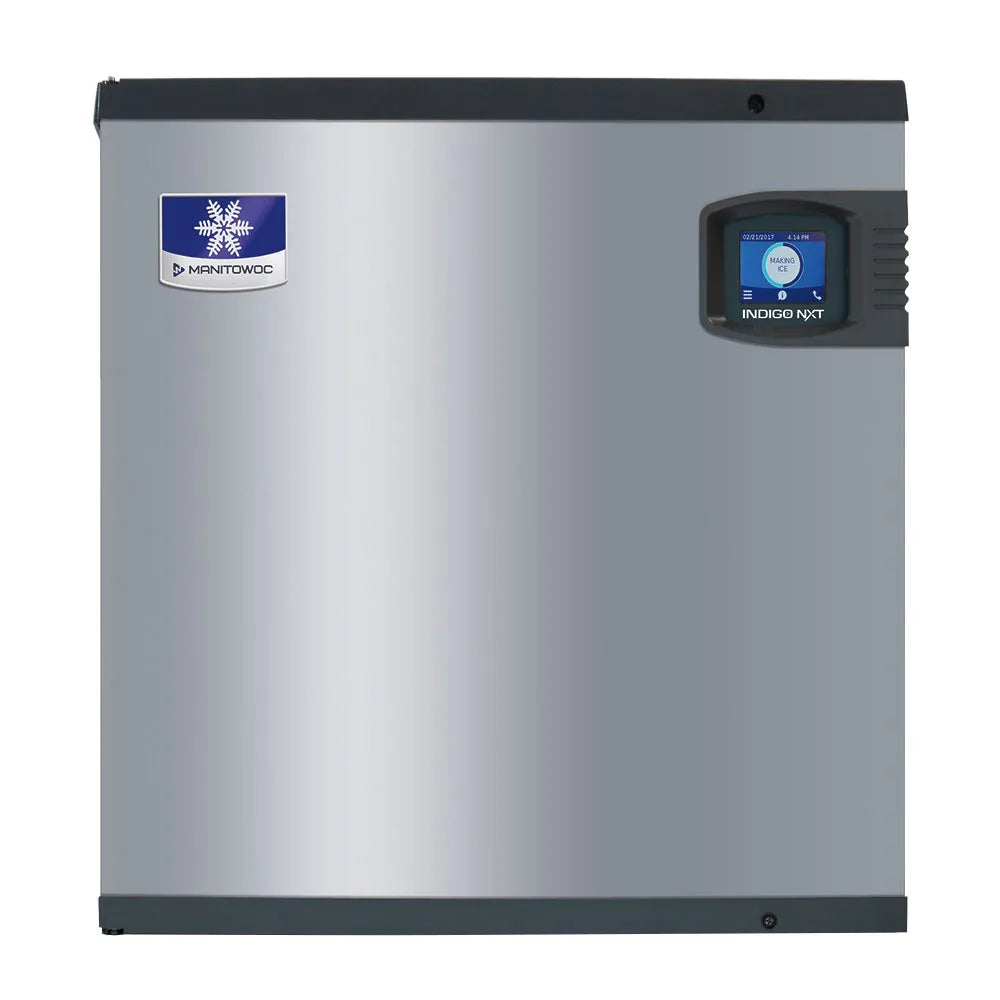

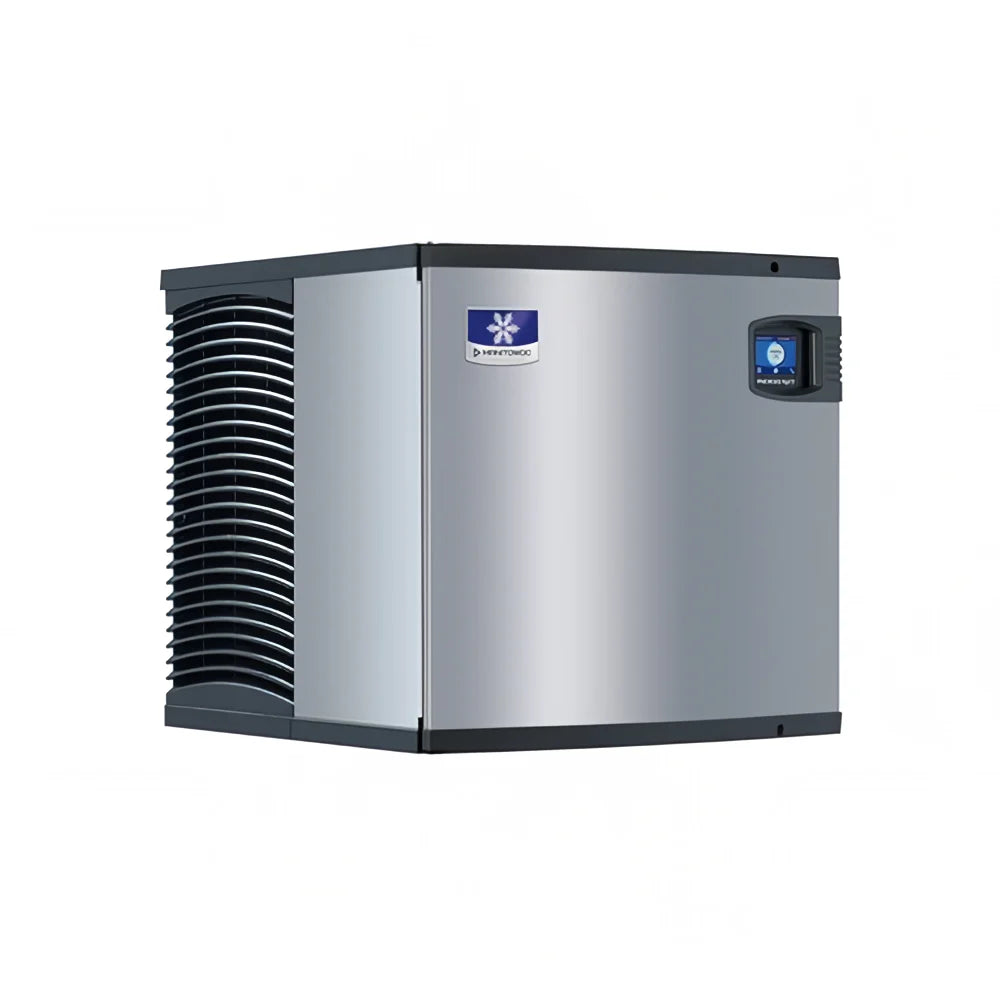

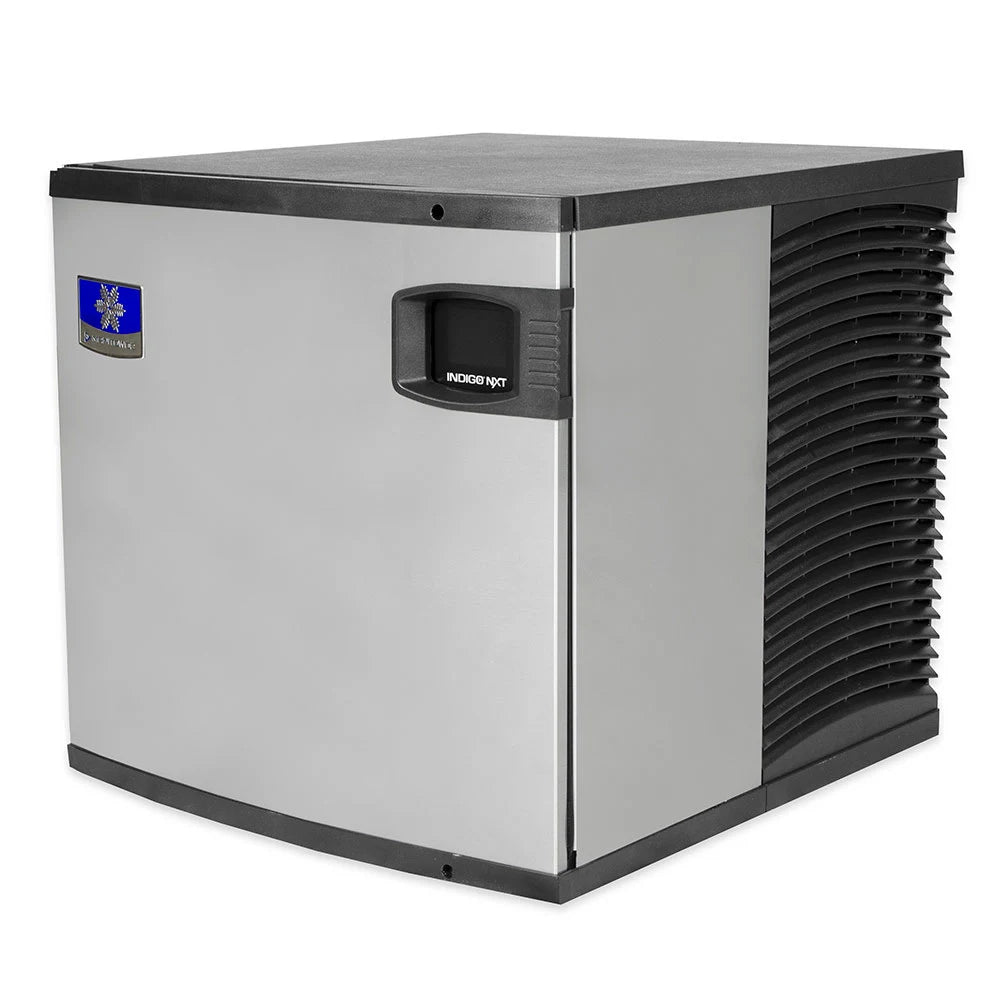

Manitowoc Ice IDT0420A Description
The Manitowoc Ice IDT0420A ice maker can produce 470 pounds of ice in 24 hours. This maximum amount can only be achieved if ambient air and incoming water conditions are at an ideal level. It makes full-cube ice, which is often used for soft drinks and other fountain beverages. This unit uses air to cool the refrigerant, and when it is cold, it removes heat from the evaporator plate so water will freeze and make cubes.
This Manitowoc Ice IDT0420A full-cube ice machine head is operated through an icon-based touch screen and can be programmed to turn on and off at certain times of the day or by ice production amount. Featuring R410A refrigerant and self-diagnosis for preventative measures, this head utilizes an acoustical sensing probe to gauge how thick ice is before dispensing. With a quick-cleaning DuraTech® exterior, this unit includes a removable water trough, distribution tube, curtain, water probe, and water pump.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 470-lb. maximum daily ice production
- 375-lb. AHRI-certified daily ice production
- Makes full-size cube ice
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Energy efficient for low ownership cost
- Operated with easyTouch® touchscreen display
- Programmable by time and ice volume
- 24-hr. preventative maintenance and diagnosis
- Acoustical ice sensing probe detects ice density
- Removable water-trough, distribution tube, curtain, water probe, and water pump
- Foodzone accessible through swinging door
- Clear-coated, fingerprint-resistant DuraTech exterior
- R140A refrigerant
- Air-cooled, self-contained condenser
- 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
- 22 in. W x 24.5 in. D x 21.5 in. H
- 11.3 A, 5.6 kW
- 115 V/60 Hz/1 ph
Best for venues that need large-scale ice production paired with separate bin flexibility, such as banquet halls, stadiums, and hotels with high drink service demands.
*Image may not depict product color, inclusions or accessories.
Hardwired
Product does not come with plug and must be hardwired to operate
Full Cube Ice
This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.
Air Cooled
Also called self-contained, this compressor type uses air for cooling
ENERGY STAR
This product meets energy efficiency standards set by ENERGY STAR
NSF
Certified by NSF International to meet applicable sanitation & food safety standards
cULus
Tested by UL to meet applicable safety standards for the Canadian & U.S. markets
CE
Assessed by the manufacturer & deemed to meet EU safety, health, & environmental protection standards
AHRI
Independently tested & verified by AHRI to meet stated efficiency & performance levels
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 470 lb./24 hours at 70°/50° (375 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®
Manitowoc Ice IDT0420A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 470 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.5 |
| Height (in) | 21.5 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R410A |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 137.00 |
