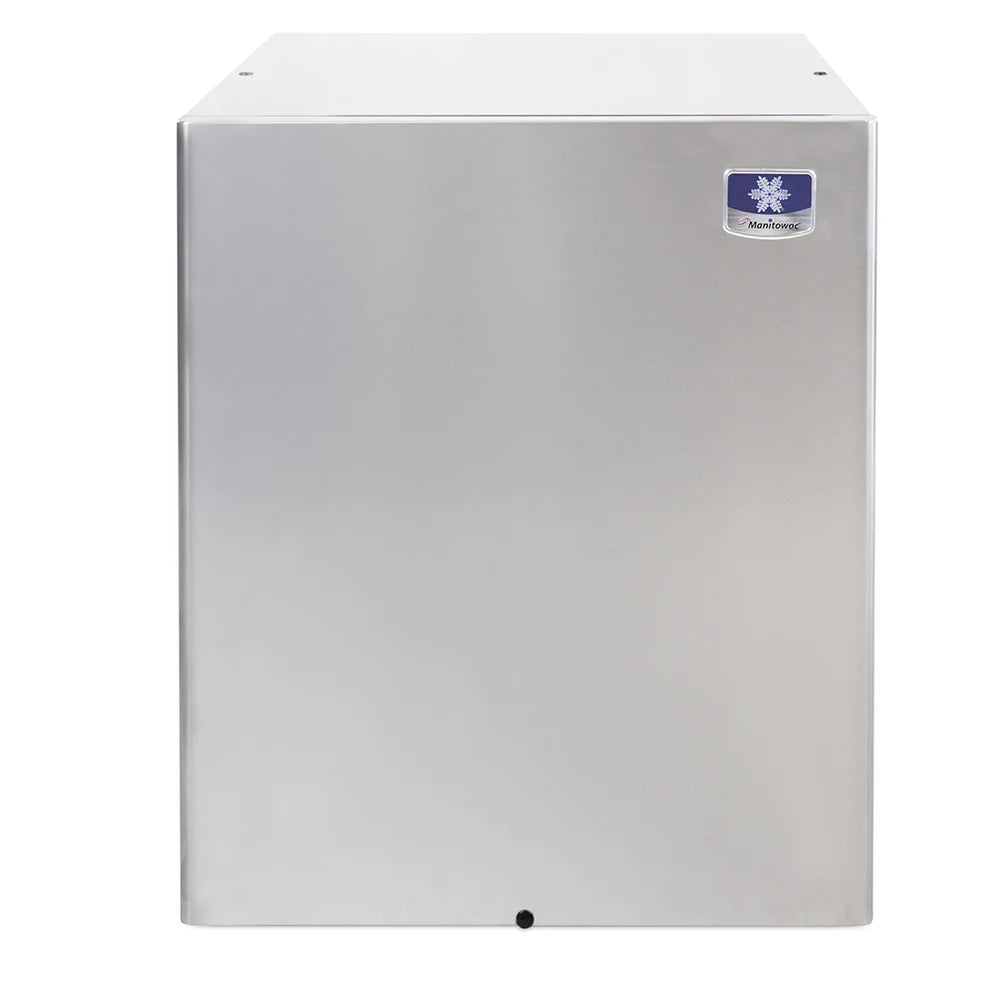

Manitowoc Ice RNF1100A Description
The Manitowoc RNF1100A ice machine head produces nugget ice, which is ideal for use in beverages because its compact design reduces available space for costly drinks. It can be attached to virtually any 30-inch-wide Multiplex beverage dispenser to set up a drink station, but dispensers and bins are sold separately. Running on eco-friendly R404A refrigerant, this unit has an air-cooled system that simplifies installation and maintenance. Air comes in through the rear and out the side vents.
In ideal conditions, the Manitowoc RNF1100A ice maker produces as much as 1,078 pounds of ice. If the operating temperatures are too high, it makes closer to 825 pounds of ice per day. The exterior is made of strong stainless steel to hold up against dents and scratches, and its high-load bearings require virtually no maintenance. To streamline installation, this unit is operated with a self-contained condenser.
- 1,078-lb. maximum daily ice production
- 825-lb. AHRI-certified daily ice production
- Makes nugget ice
- Air cooled
- Self-contained condenser cools with R404A refrigerant
- Corrosion-resistant stainless steel finish
- High-load stainless steel bearings
- Durable evaporator for high-volume use
- Rear air intake
- Bin sold separately
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 20-70 PSI
- 7,500-BTU heat transfer capacity
- 30 in. W x 23.62 in. D x 27.4 in. H
- 14.2 A, 5.41 kW, 1.5 HP
- 208-230 V/60 Hz/1 ph
Best for venues that need large-scale ice production paired with separate bin flexibility, such as banquet halls, stadiums, and hotels with high drink service demands.
*Image may not depict product color, inclusions or accessories.
Hardwired
Product does not come with plug and must be hardwired to operate
Nugget Ice
This unit produces nugget ice perfect for soft drinks, blended drinks, filling coolers, and dispensing.
Air Cooled
Also called self-contained, this compressor type uses air for cooling
NSF
Certified by NSF International to meet applicable sanitation & food safety standards
cULus
Tested by UL to meet applicable safety standards for the Canadian & U.S. markets
From The Manufacturer
Ice Maker, nugget style, air-cooled, self-contained condenser, 30"W x 23-5/8"D x 27-3/8"H, production capacity up to 1078 lb/24 hours at 70°/50° (825 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R404A, 1-1/2 HP, NSF, cULus
Manitowoc Ice RNF1100A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 1078 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.63 |
| Height (in) | 27.38 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 275.00 |
