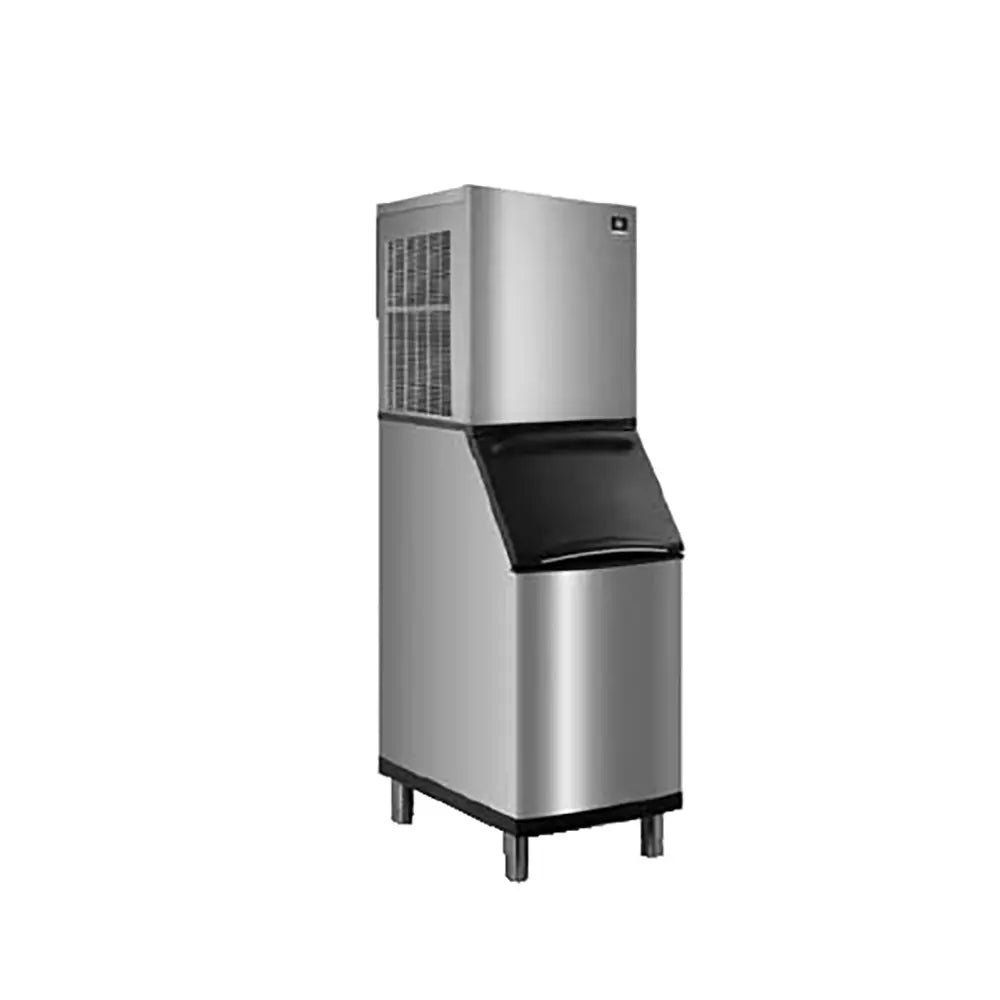

Manitowoc Ice RNP0320A/D420 Description
With its 308-pound maximum daily ice production, the Manitowoc Ice RNP0320A-161/D420 nugget ice maker creates nugget ice—a soft, chewable ice ranging from 3⁄8 of an inch to 1⁄2 an inch in width and length. This ice type displaces liquid to save on cost and cool drinks without diluting them. To reduce maintenance requirements, its stainless steel bearings withstand high loads. This air-cooled, self-contained unit can operate in ambient air temperatures from 50 to 110 degrees Fahrenheit and incoming water temperatures of 37 to 90 degrees Fahrenheit.
The Manitowoc Ice RNP0320A-161/D420 nugget ice machine's bin has a 383-pound ice capacity and is insulated with foam to reduce melting. The unit's side grips enable operators to open the door from the left, right, or center with one hand, while the side-hinged, front-opening door configuration stays open during scooping for operator safety. This 22-inch-wide by 34-inch-deep by 50-inch-high bin is finished with smooth, corrosion- and smudge-resistant Duratech metal that can simply be wiped clean.
- 308-lb. daily ice production
- 236-lb. AHRI-certified daily ice production
- Produces nugget ice
- Ice measures between 3⁄8 and 1⁄2 in. (length and width)
- Air-cooled, self-contained condenser
- R290 refrigerant
- Low-maintenance stainless steel bearings
- Stainless steel finish
- Operating ambient temperature range: 50-110 degrees F
- Operating water temperature range: 37-90 degrees F
- Ideal incoming water pressure: 14-80 PSI
- 7,511 BTU
- Capacity: 383 lbs.
- AHRI-certified interior capacity: 12.9 cu. ft.
- Corrosion- and smudge-resistant Duratech exterior
- Side-hinged, front-opening door
- Side grips enable opening from any angle
- Foam insulated
- Ice maker head: 22 in. W x 23 63⁄100 in. D x 26 in. H
- Ice bin: 22 in. W x 34 in. D x 50 in. H
- Overall: 22 in. W x 34 in. D x 76 in. H
- 7.5 A, 3⁄4 HP
- 115 V/60 Hz/1 ph
Perfect for bars, cafes, and hotels requiring ice production and storage in a single compact footprint.
*Image may not depict product color, inclusions or accessories.
Hardwired
Product does not come with plug and must be hardwired to operate
Natural Refrigerant
Product made with Hydrocarbon Refrigerants
Nugget Ice
This unit produces nugget ice perfect for soft drinks, blended drinks, filling coolers, and dispensing.
Air Cooled
Also called self-contained, this compressor type uses air for cooling
ENERGY STAR
This product meets energy efficiency standards set by ENERGY STAR
NSF
Certified by NSF International to meet applicable sanitation & food safety standards
CE
Assessed by the manufacturer & deemed to meet EU safety, health, & environmental protection standards
C ETL US Listed
Tested by Intertek & found compliant with applicable U.S. & Canadian safety standards
AHRI
Independently tested & verified by AHRI to meet stated efficiency & performance levels
ETL-Sanitation
Meets applicable ANSI/NSF sanitation standards in testing by Intertek
From The Manufacturer
Ice Maker, nugget-style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 308 lb/24 hours at 70°/50° (236 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel finish, 1/2 HP, R-290A, ETL-Sanitation, cETLusIce Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Manitowoc Ice RNP0320A/D420 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 308 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 383 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 76 |
| Hertz | 60 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 282.00 |
