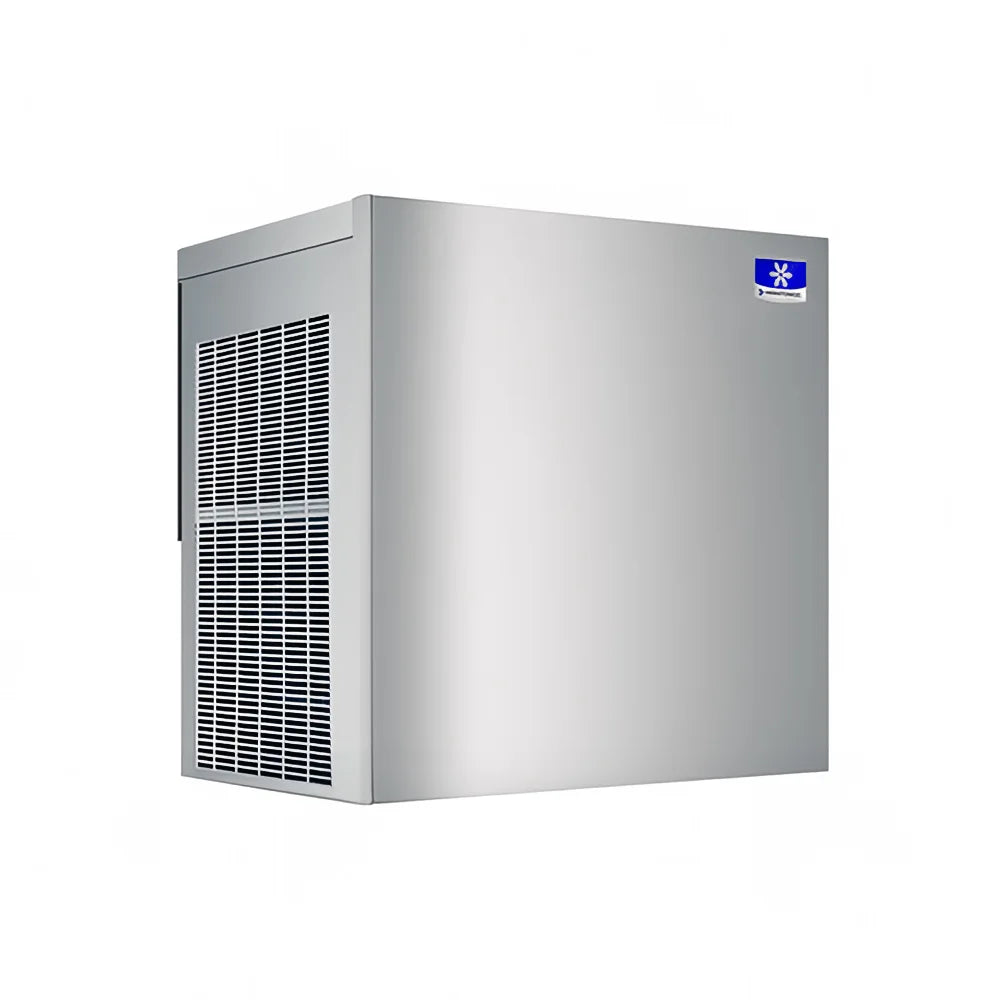

Manitowoc Ice RNP0620A Description
The Manitowoc RNP0620A nugget ice machine produces 591 pounds of ice when ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. This unit dispenses chewable nugget-style ice, which is ideal for cooling soft drinks or crafting smoothies. For keeping internal conditions optimal, this nugget machine utilizes R290 refrigerant to minimize impact to the ozone layer. It flaunts a stainless steel exterior that's durable and corrosion resistant, and to extend its product life, it features high-load stainless steel bearings.
Overall, the Manitowoc RNP0620A ice machine head measures 22 inches wide by 23 5⁄8 inches deep by 26 inches high. It has a 3⁄8-in. water inlet and 1⁄2-inch drain to dispose of melted ice. When users install this unit, it requires a top and side clearance of 8 inches and back clearance of 5 inches. Because its condenser is self-contained, installation is simplified.
- Produces 591 lbs./24 hours
- Makes nugget-style ice
- High-load stainless steel bearings
- Stainless steel exterior
- Self-contained, air-cooled condenser
- R290A hydrocarbon refrigerant
- Can be paired with the Manitowoc D-420 ice bin
- Ambient temperature range: 50-110 degrees F
- Water temperature range: 37-90 degrees F
- Pressure range: 14-80 PSI
- Must be paired with dispenser or bin (sold separately)
- 22 in. W x 23 5⁄8 in. D x 26 in. H
- 1⁄2-in. ice drain connection
- 3⁄8-in. ice water inlet connection
- 13.5 A, 6.36 kW
- 115 V/60 Hz/1 ph
Best for venues that need large-scale ice production paired with separate bin flexibility, such as banquet halls, stadiums, and hotels with high drink service demands.
*Image may not depict product color, inclusions or accessories.
Hardwired
Product does not come with plug and must be hardwired to operate
Natural Refrigerant
Product made with Hydrocarbon Refrigerants
Nugget Ice
This unit produces nugget ice perfect for soft drinks, blended drinks, filling coolers, and dispensing.
Air Cooled
Also called self-contained, this compressor type uses air for cooling
NSF
Certified by NSF International to meet applicable sanitation & food safety standards
cULus
Tested by UL to meet applicable safety standards for the Canadian & U.S. markets
CE
Assessed by the manufacturer & deemed to meet EU safety, health, & environmental protection standards
C ETL US Listed
Tested by Intertek & found compliant with applicable U.S. & Canadian safety standards
ETL-Sanitation
Meets applicable ANSI/NSF sanitation standards in testing by Intertek
From The Manufacturer
Ice Maker, nugget style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 591 lb/24 hours at 70°/50° (451 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R290A, 1 HP, NSF, cULus, CE, cETLus
Manitowoc Ice RNP0620A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 591 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.63 |
| Height (in) | 26 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 210.00 |
