*SOLD*

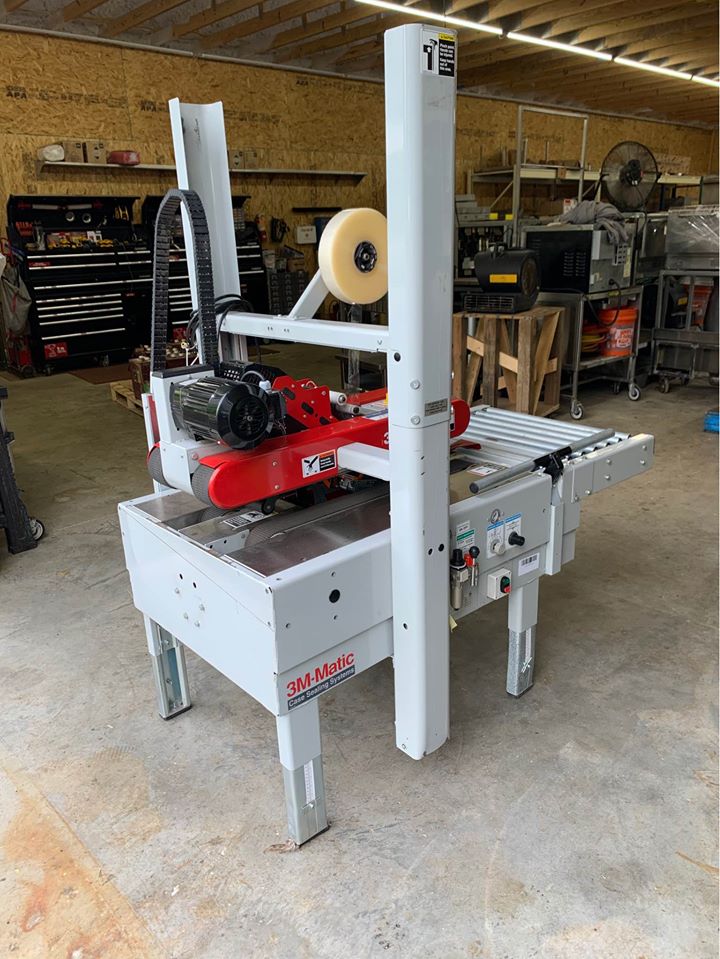

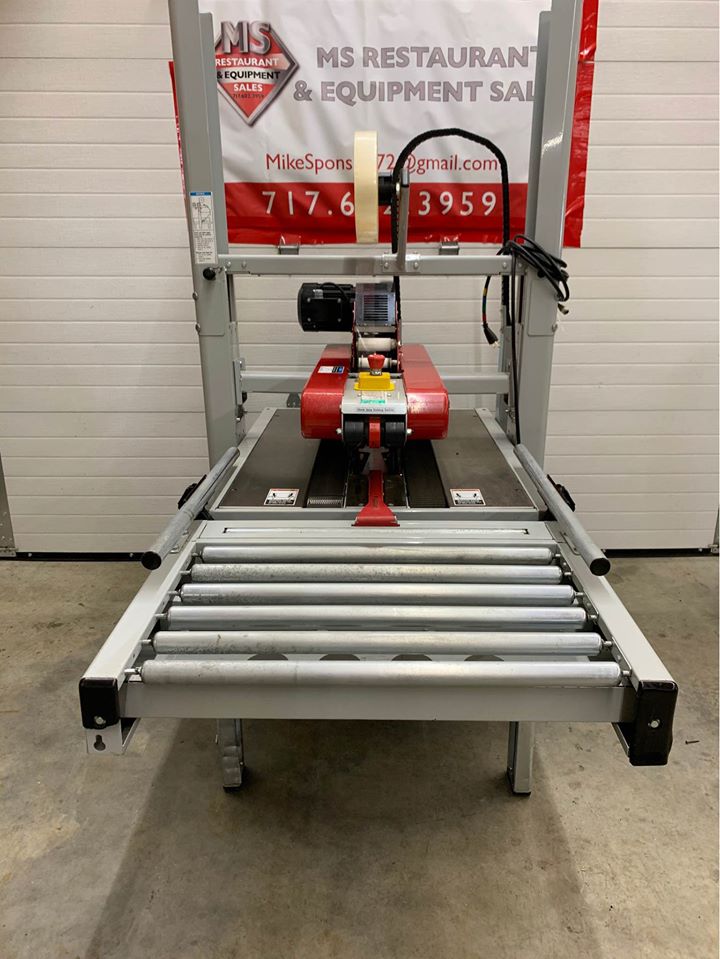

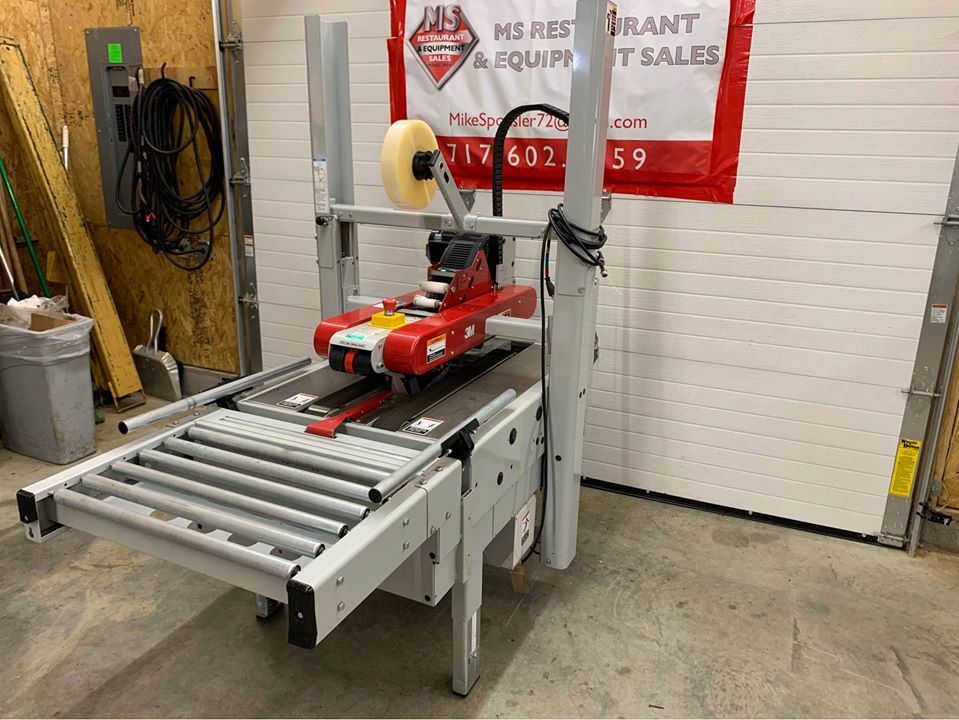

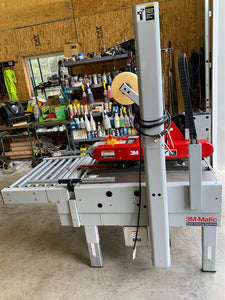

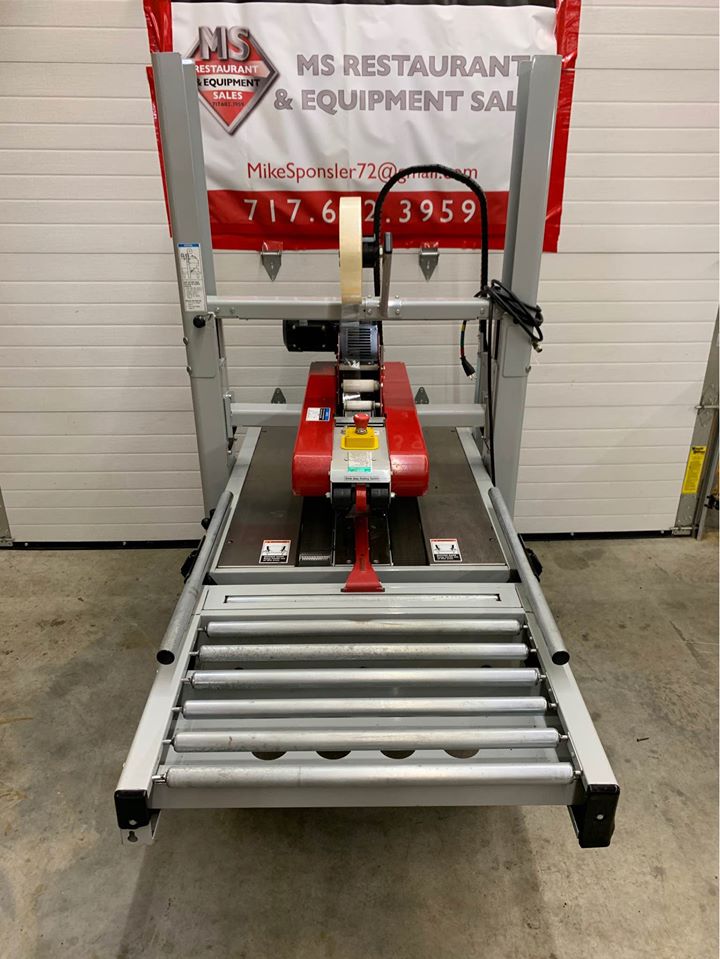

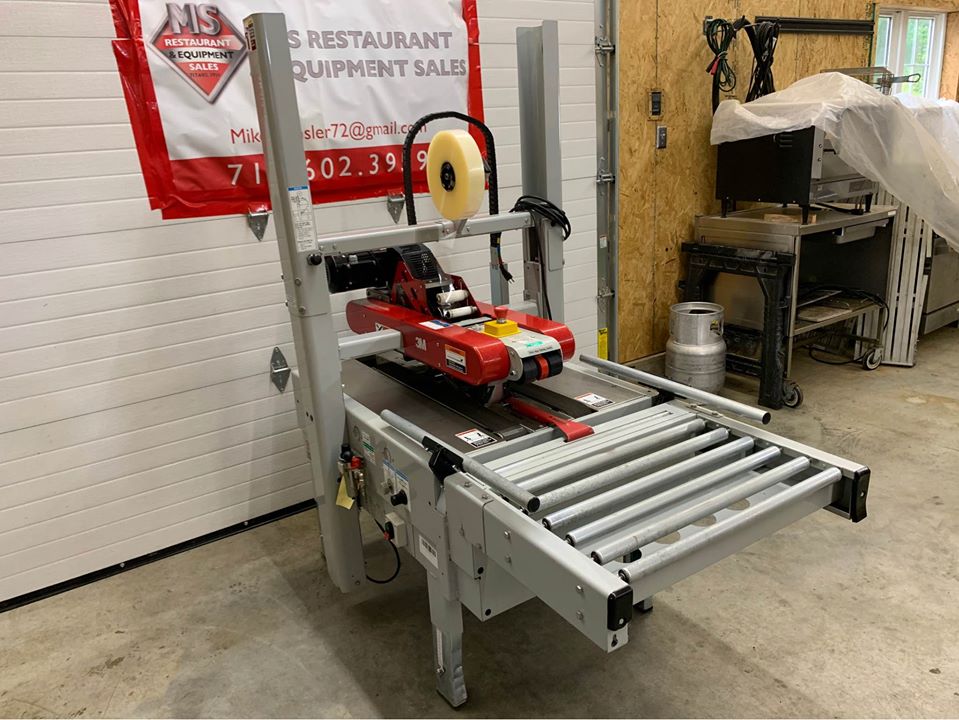

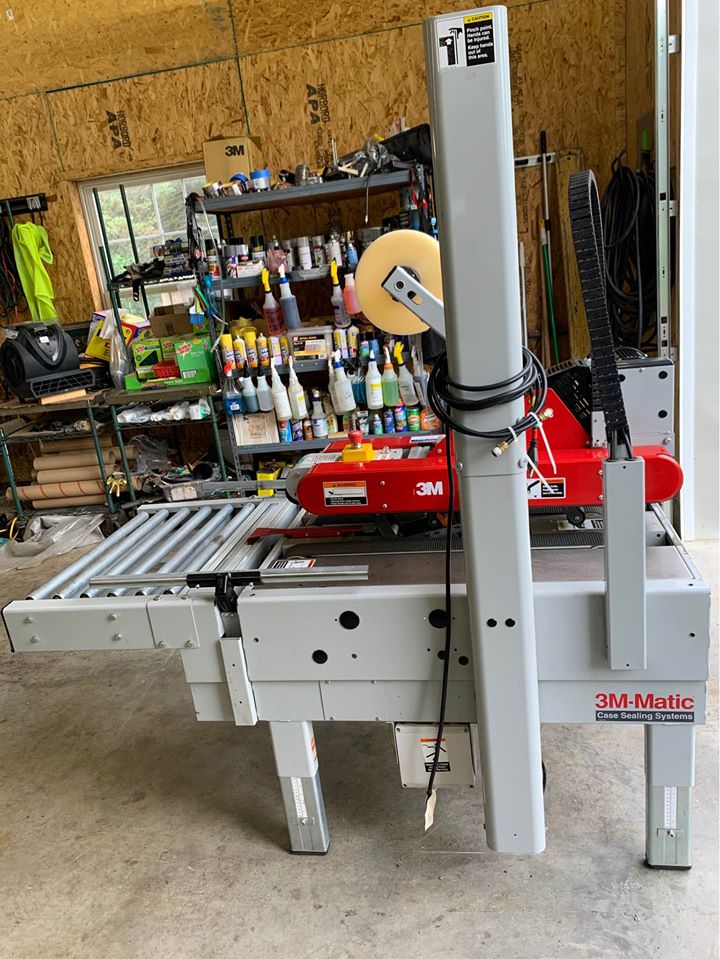

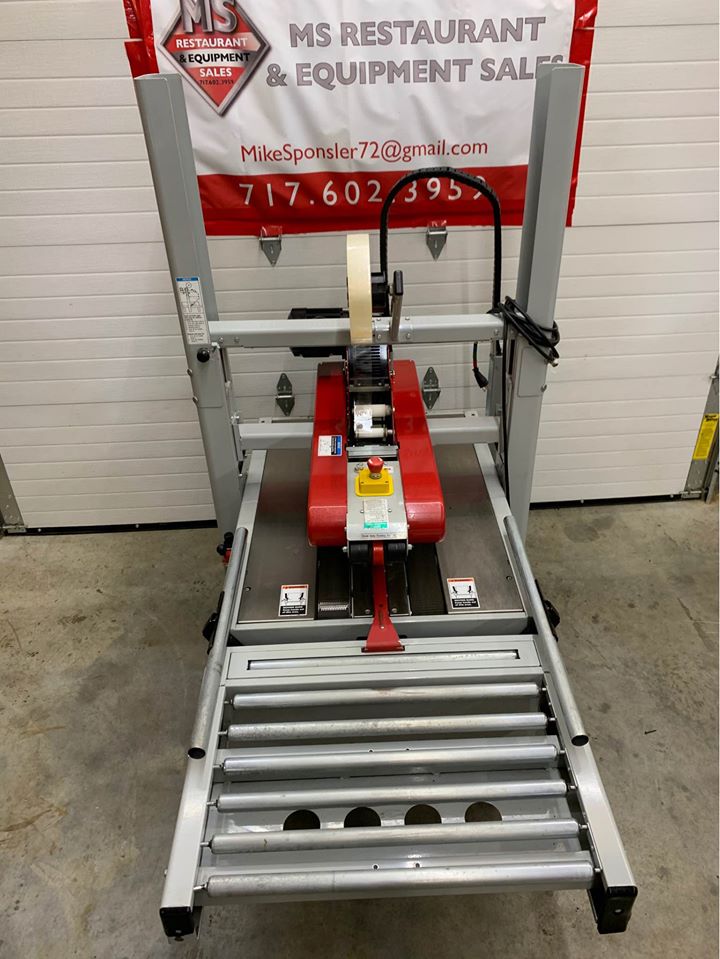

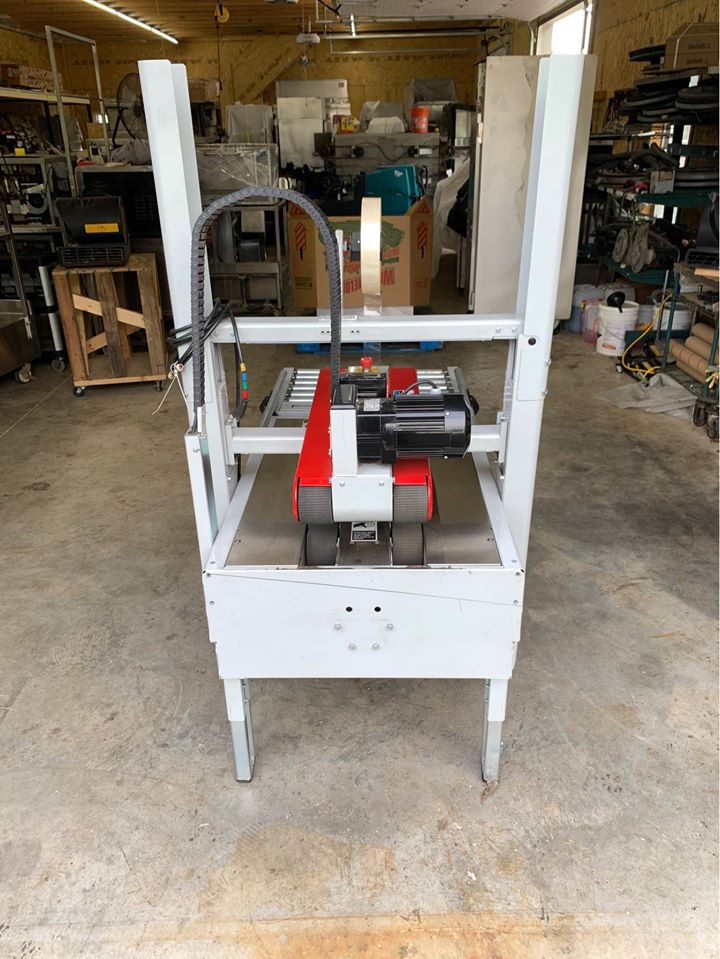

3M-Matic Random Case Sealer 700RKS Electric With Air System. Top & Bottom Sealer
$319 shipping
*used*

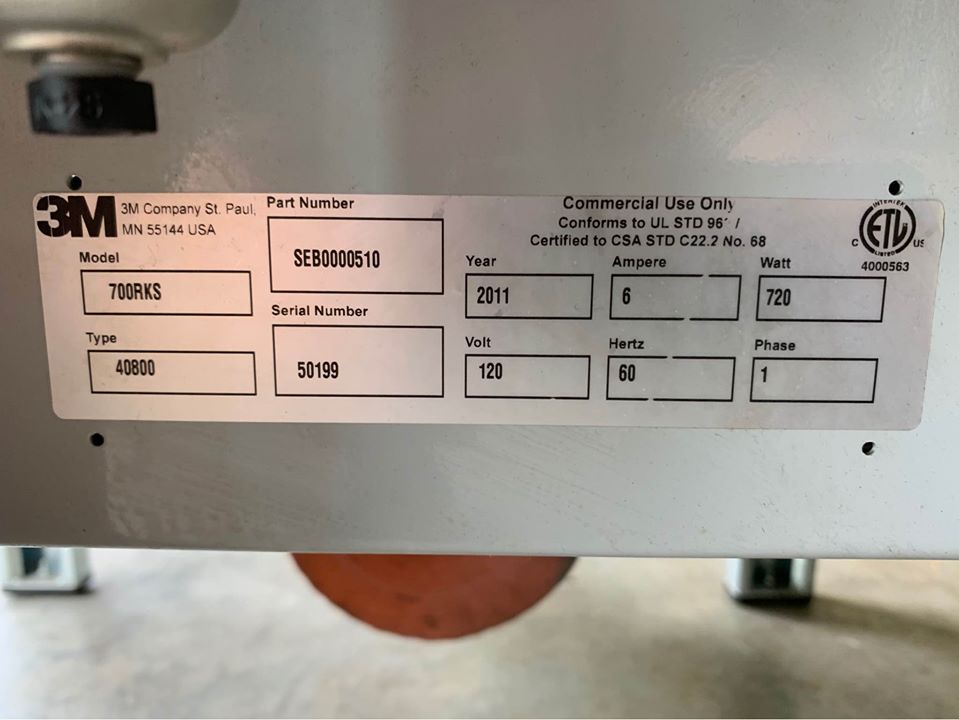

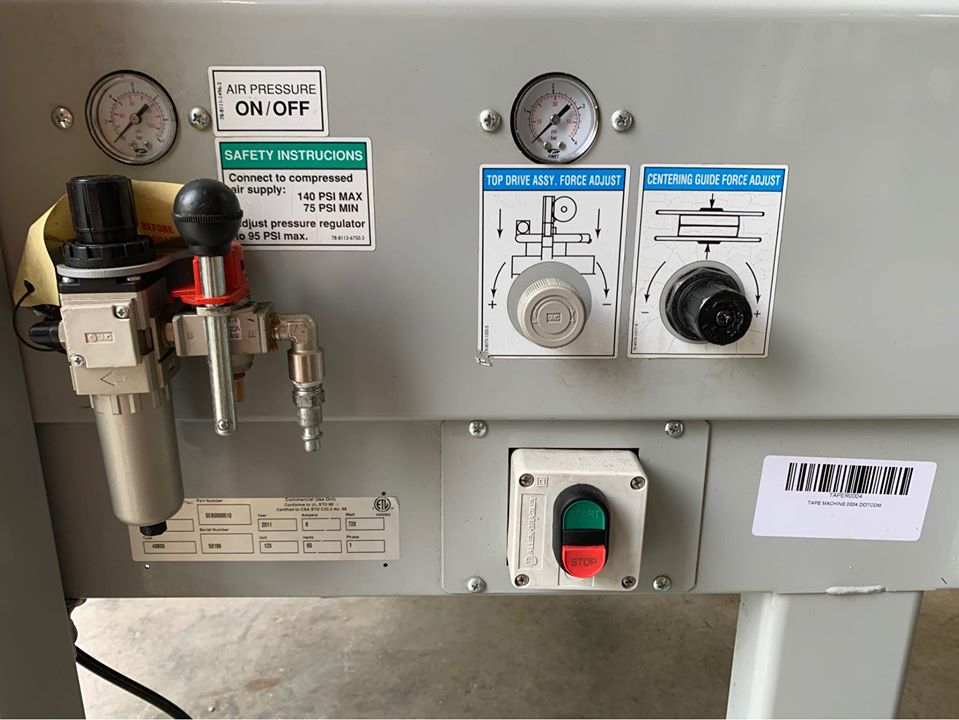

SPECIFICATIONS 1. Power Requirements Electrical: 115 VAC, 60 Hz, 6.4 A (675 watts) Pneumatic: 85 PSIG [6 bar pressure], 2.5 SCFM [70 liter/minute @ 2PC, 1.01 bar] maximum at maximum random cycle rate. A pressure regulator/filter is included The machine is equipped with a 2.4m [8 foot] standard neoprene covered power cord and a grounded plug. Contact your 3M Representative for power requirements not listed above. 2. Operating Rate Box drive belt speed is approximately 0.5 m/s [100 feet per minute]. IMPORTANT SAFEGUARD 3. OperatingConditions Use in dry, relatively clean environments at 4.4o C to 48.9o C [40o F to 120o F] with clean, dry boxes. Note: Machine should not be washed or subjected to conditions causing moisture condensation on components. 4. Tape Scotch® pressure-sensitive film box sealing tapes. 5. Tape Width 50mm [2 inches] minimum to 72mm [3 inches] maximum 14 WARNING • To reduce the risk associated with fire and explosion hazards: − Do not operate this equipment in poten- tially flammable or explosive environments. 4-SPECIFICATIONS (continued) Specifications 6. Tape Roll Diameter Up to 405 mm [16 inch] maximum on a 76.2mm [3 inch] diameter core. (Accommodates all system roll lengths of Scotch® film tapes.) 7. Tape Application Leg Length – Standard 70mm ± 6 mm [2.75 inch ±. 25 inch ] Tape Application Leg Length – Optional 50mm ± 6mm [2 inch ±. 25 inch] (See "Removing Taping Heads Procedure – Changing the Tape Leg Length") 8. Box Board Style – regular slotted containers – RSC 125 to 275 P.S.I. bursting test, single wall or double wall B or C flute. 23-44 lbs. per inch of width Edge Crush Test (ECT) 9. Box Weight and Size Capacities A. Box Weight, filled: 5 lbs.–65 lbs. [2.3 kg–29.5 kg]. Contents must support flaps. B.BoxSize:Minimum Maximum Length: Width: Height: 150mm [6.0 inch] 175mm [7.0 inch]* 120mm [4.75 inch]** Unlimited 645mm [25.5 inch] 645mm [25.5 inch]
*Boxes narrower than 200mm [8 inches] may require more frequent belt replacement because of limited contact area. ** Minimum/maximum box height dimensions are with machine at factory setting. To accommodate smaller or larger boxes, machine upper taping head frame and/or outer column assemblies can be re- positioned as described in the "Special Set-Up Procedure" section of this manual.
$199 shipping to any commercial address.
$75 extra for liftgate and residential delivery
NO EXCEPTIONS! SORRY THIS CHANGE IS FROM THE TRUCKING COMPANY.
