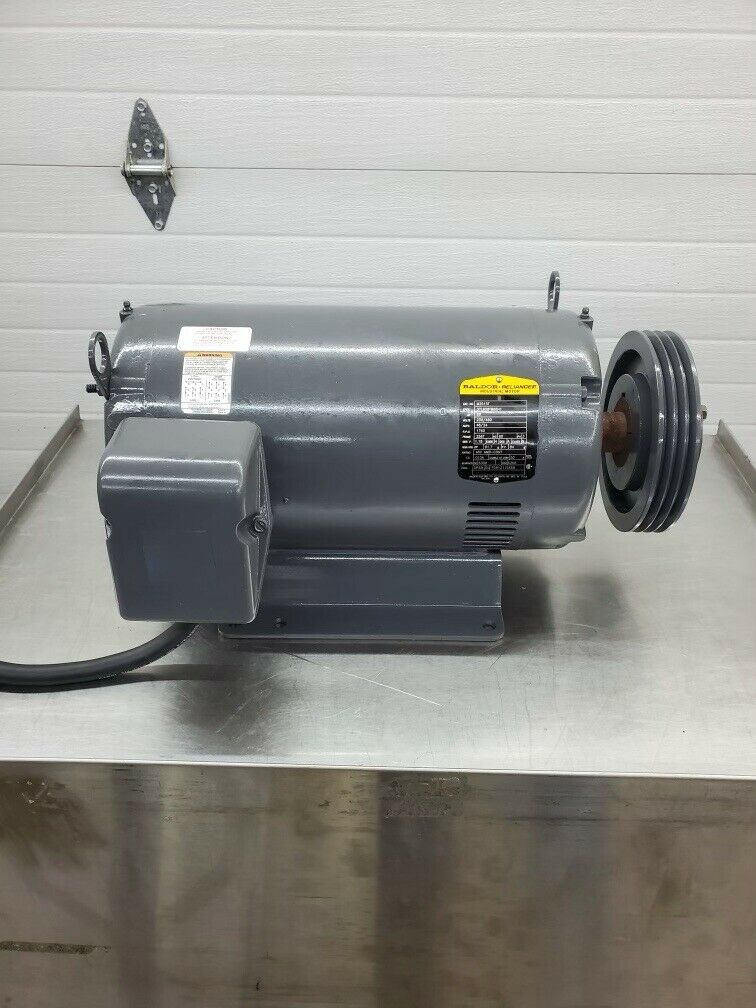

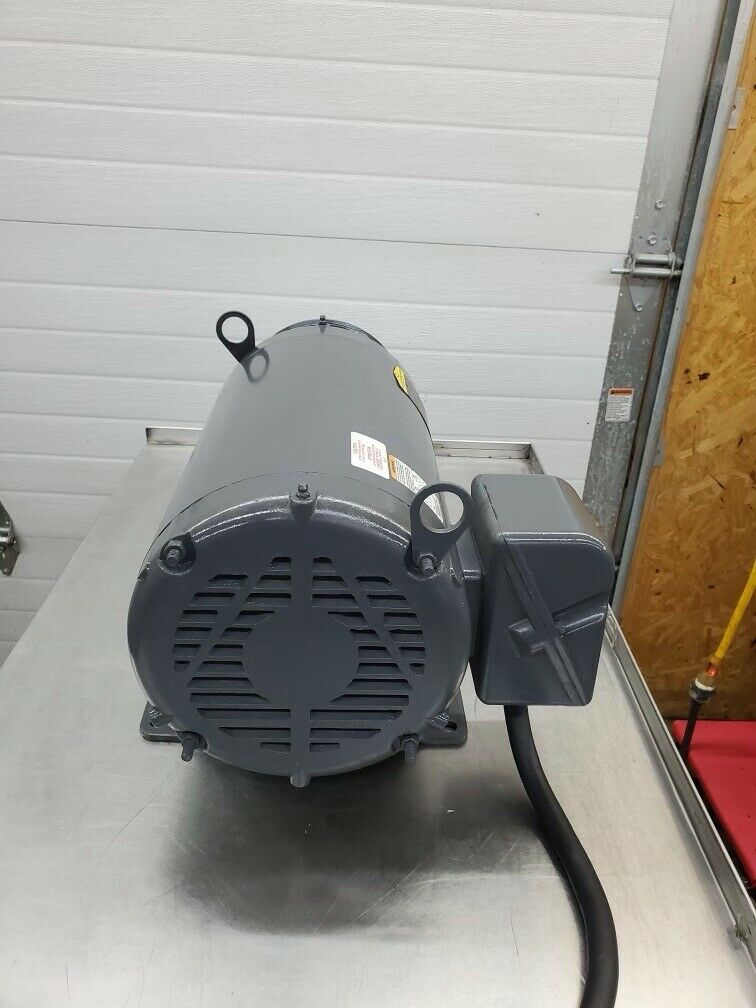

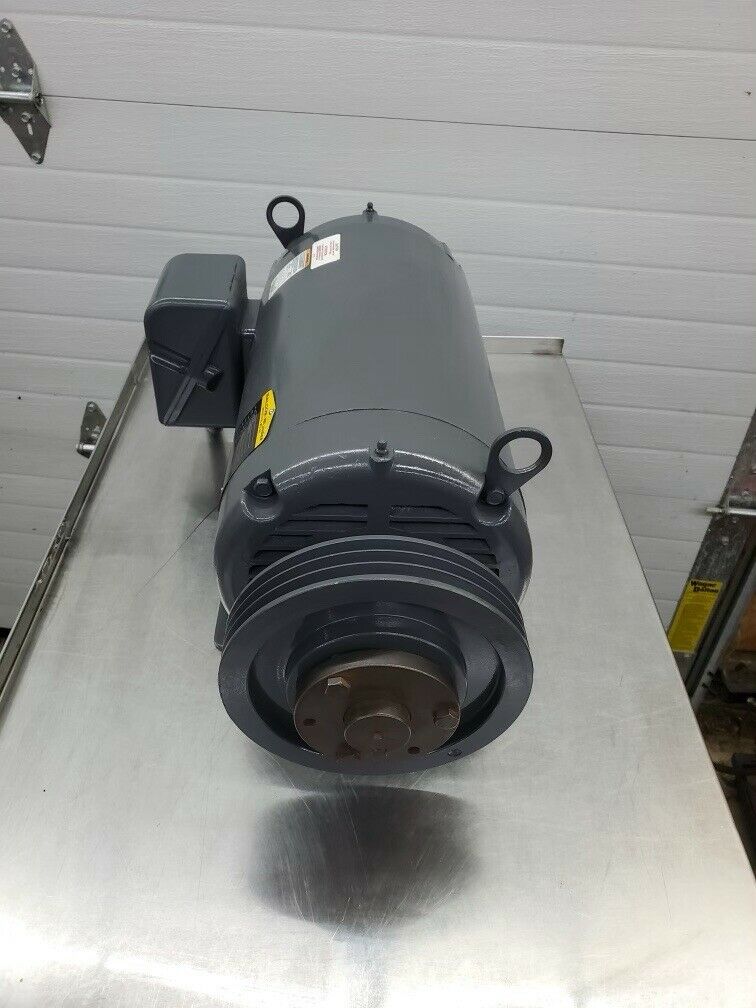

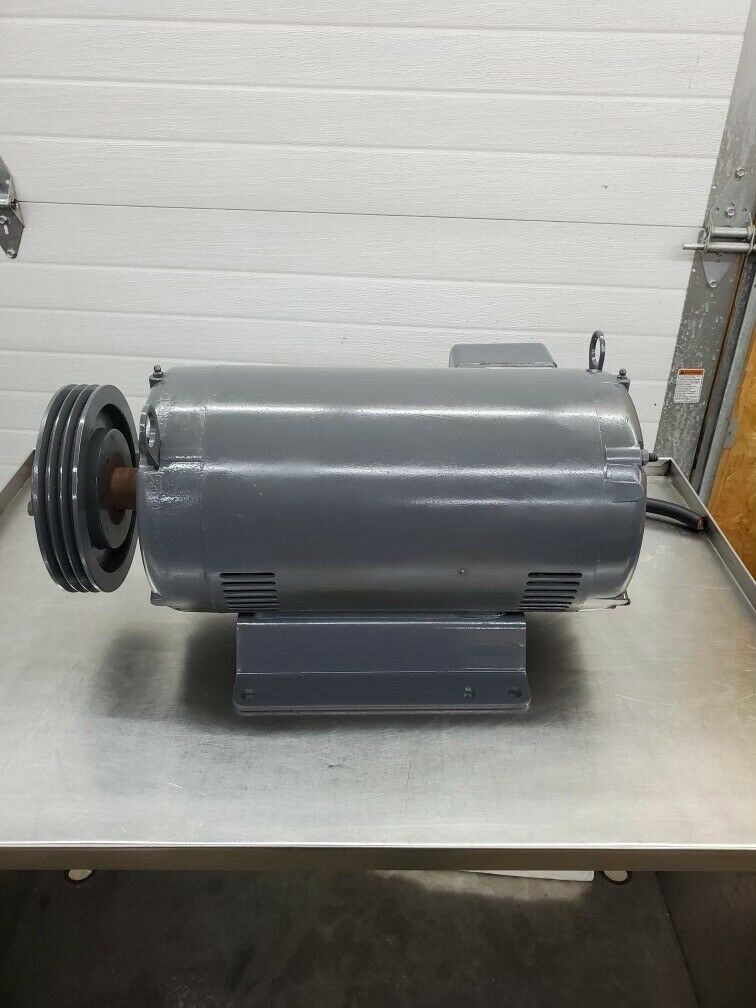

BALDOR M2515T 20HP 1760RPM,3PH,60HZ, TESTED & WORKING!
** Used
Motor Detail
Type: AC Elec.
Spec: Mech. Spec: 37L628 Layout: Base: RG
PRD/A 37WGT868 37LYL628 11-25-2020

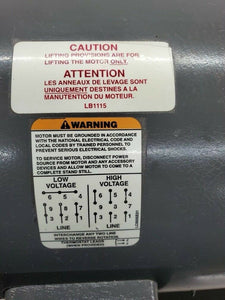

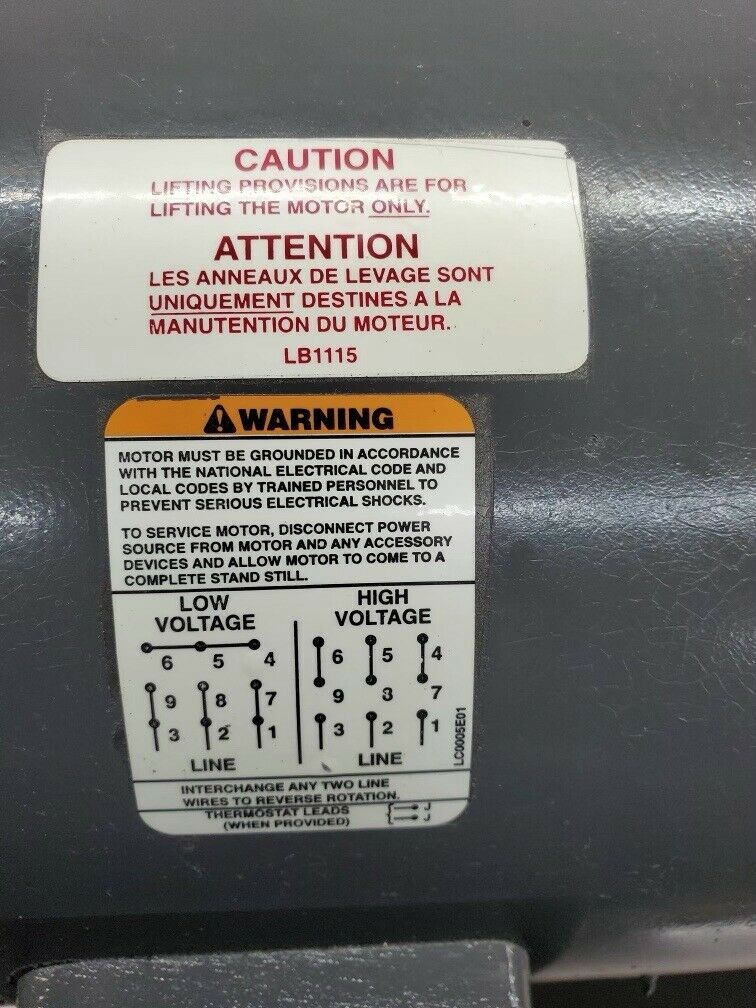

Change #: CD Diagram: Poles: Leads:
CD0005 04
9#12
Proprietary: No
Specs

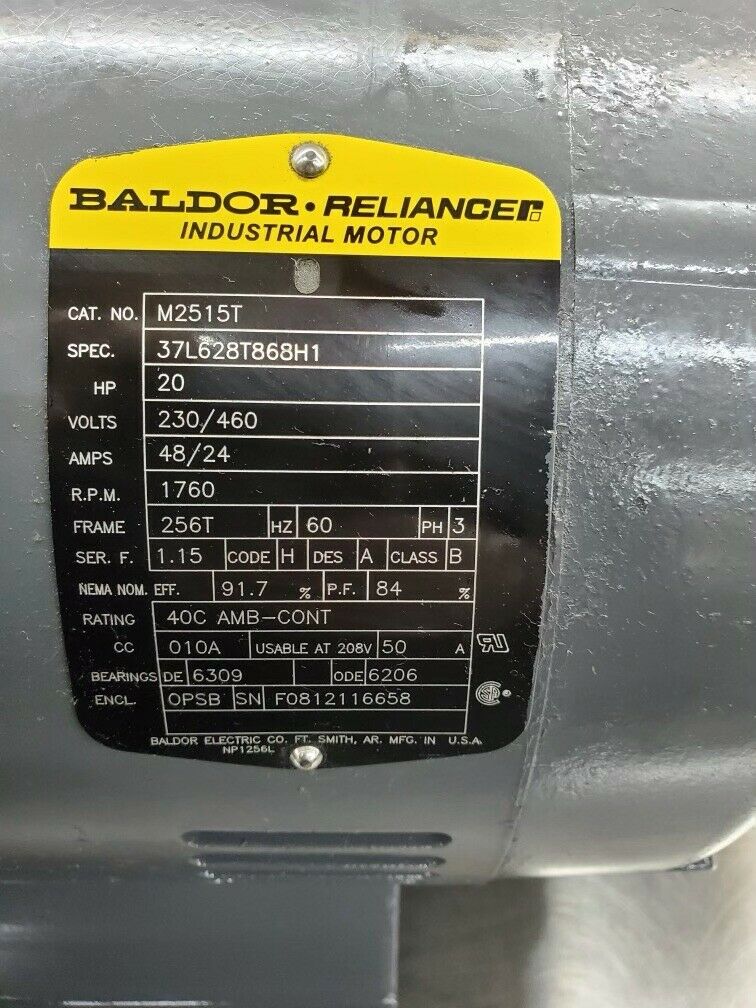

Catalog Number: M2515T
Enclosure: ODP
Frame: 256T
Output @ Frequency: 20.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
Inverter Code:
KVA Code:
Lifting Lugs:
Locked Bearing Indicator: Motor Lead Quantity/Wire Size: Motor Lead Exit:
Not Inverter H
Standard Lifting Lugs No Locked Bearing
460.0 V @ 60 HZ XP Division: Not Applicable
Motor Lead Termination:
Motor Type:
Mounting Arrangement: Power Factor: 9 @ 12 AWG Ko Box Flying Leads 3766M
Agency Approvals: UR CSA
F1
84
General Purpose Ball
Standard
Standard
None
Pulley End
No Shaft Grounding Reversible
Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Product Family:
Pulley End Bearing Type: Pulley Face Code:
Pulley Shaft Indicator: Rodent Screen:
Shaft Extension Location: Shaft Ground Indicator: Shaft Rotation:
Current @ Voltage: 24.000 A @ 460.0 V 48.000 A @ 230.0 V 50.000 A @ 208.0 V
Product Information Packet: M2515T - 20HP,1760RPM,3PH,60HZ,256T,3766M,OPSB,F1
We Ship worldwide. Shipping to a commercial address is $149. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
“FLAT RATE SHIPPING IS ONLY VALID FOR LOWER 48 CONTIGUOUS STATES TO A COMMERCIAL ADDRESS WITH A DOCK, FORKLIFT OR VIABLE WAY TO UNLOAD THE FREIGHT.
AK, HI, PR & INTERNATIONAL MUST MESSAGE FOR SHIPPING QUOTE.”
