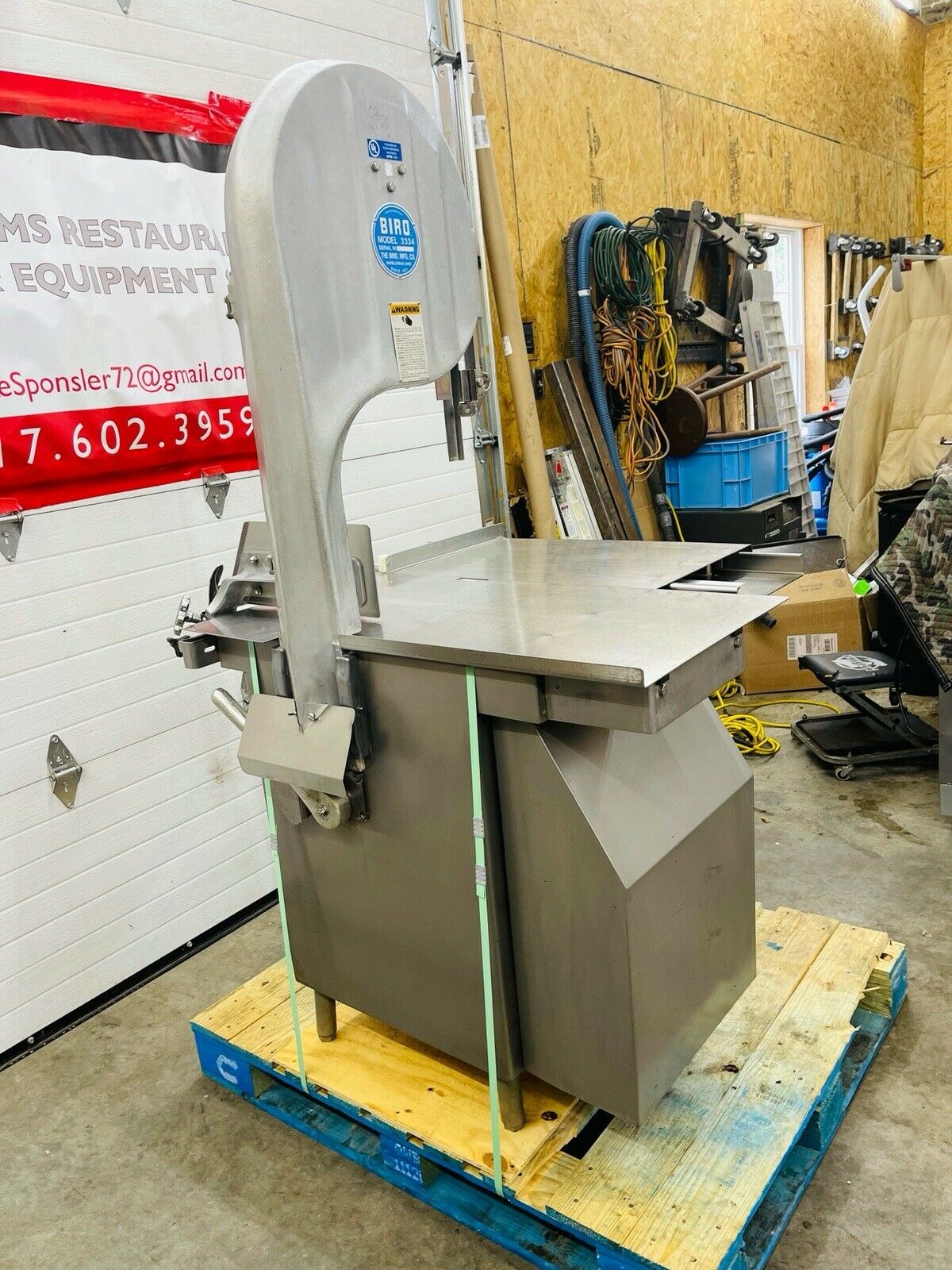

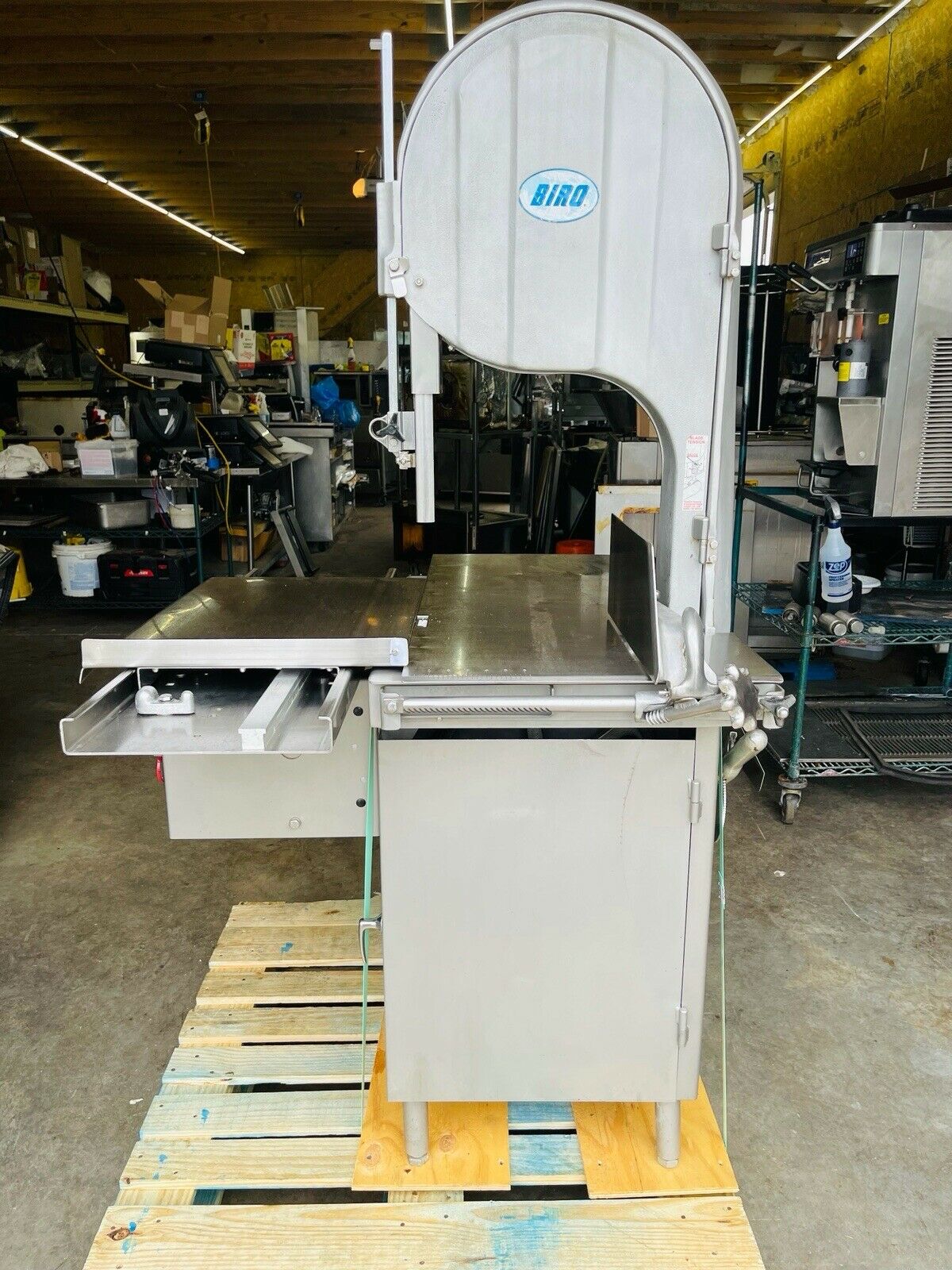

Biro 3334SS-4003 Meat Saw. Condition is "Seller refurbished". Shipped with Flat Rate Freight.

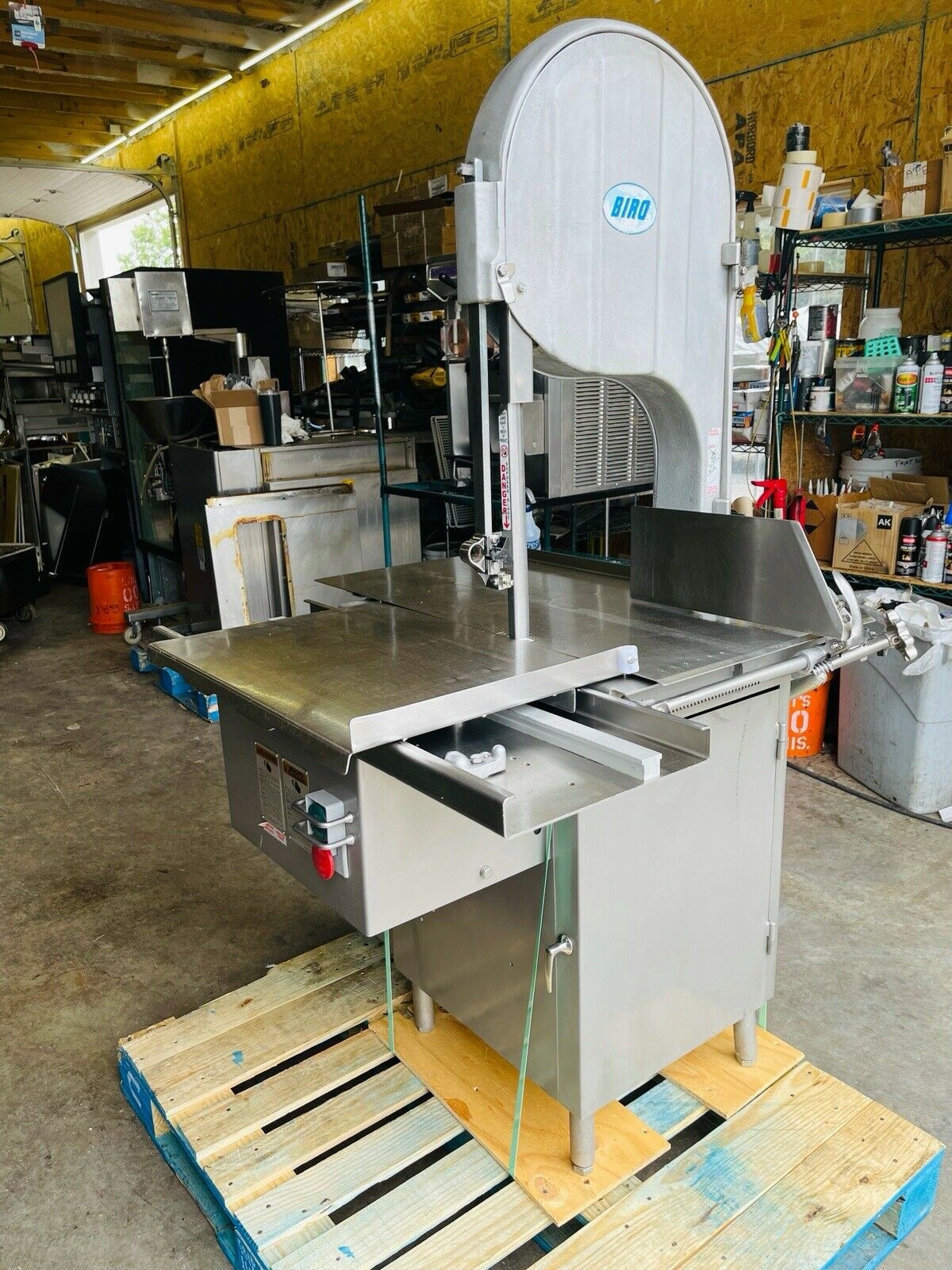

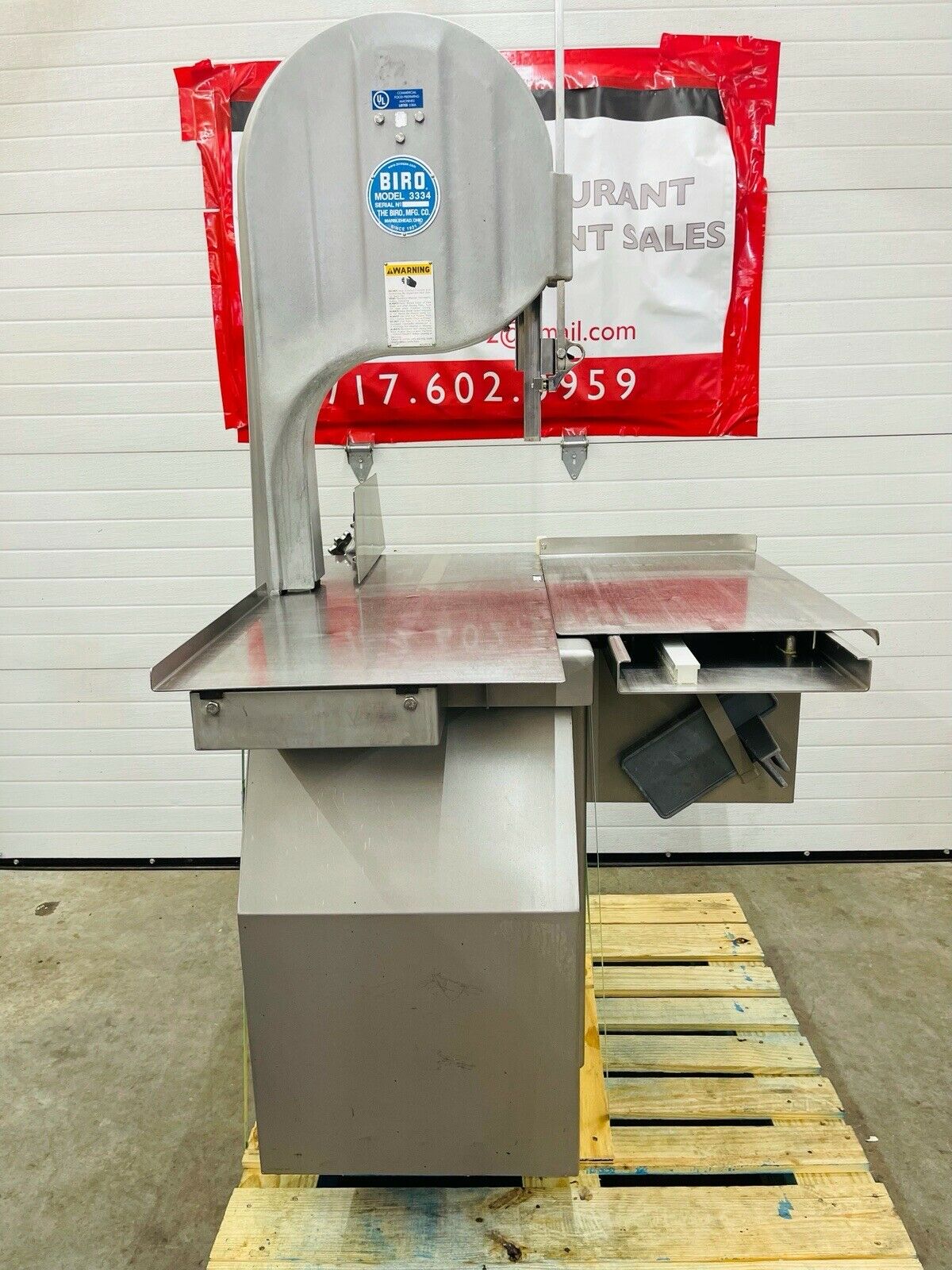

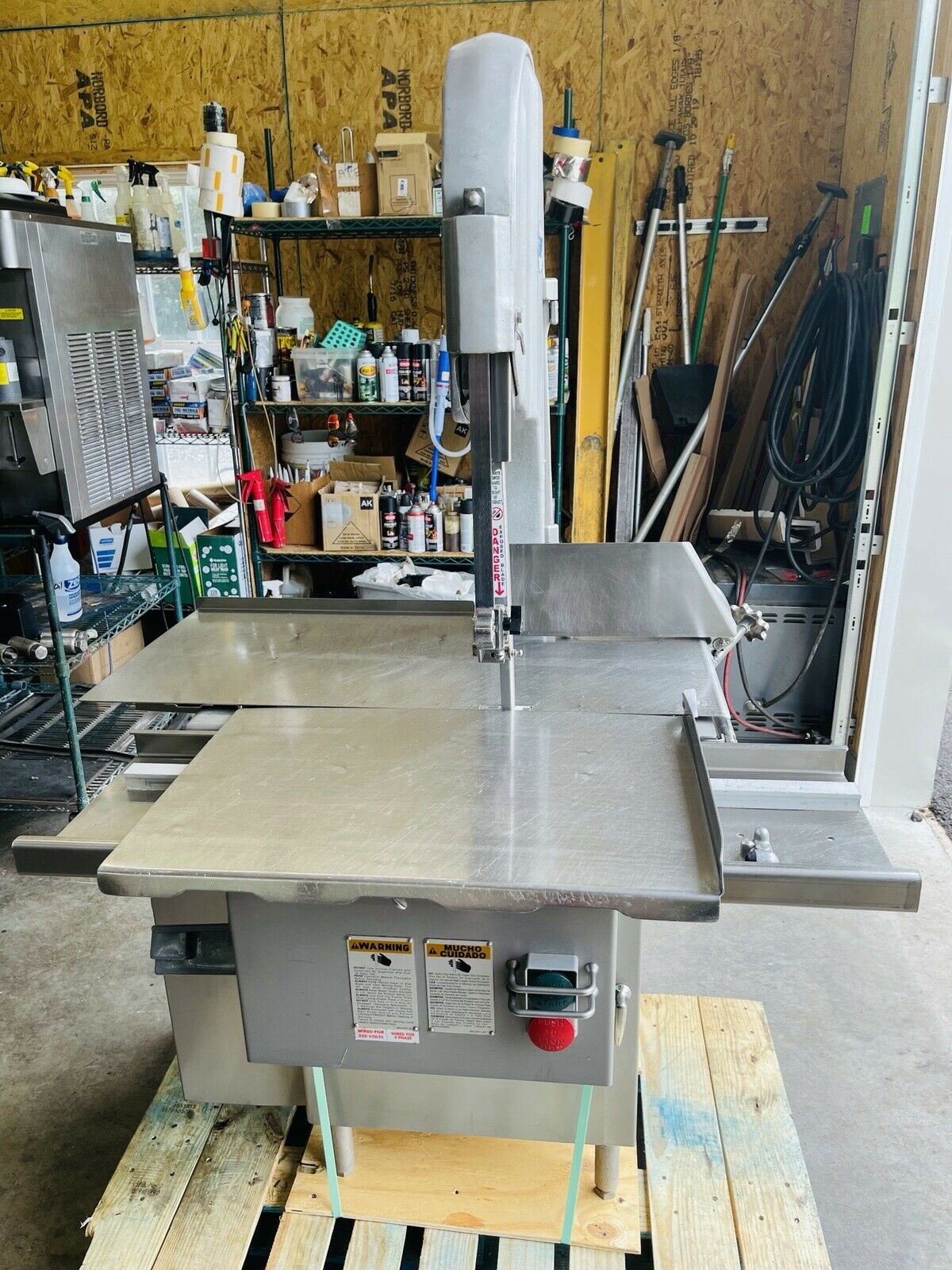

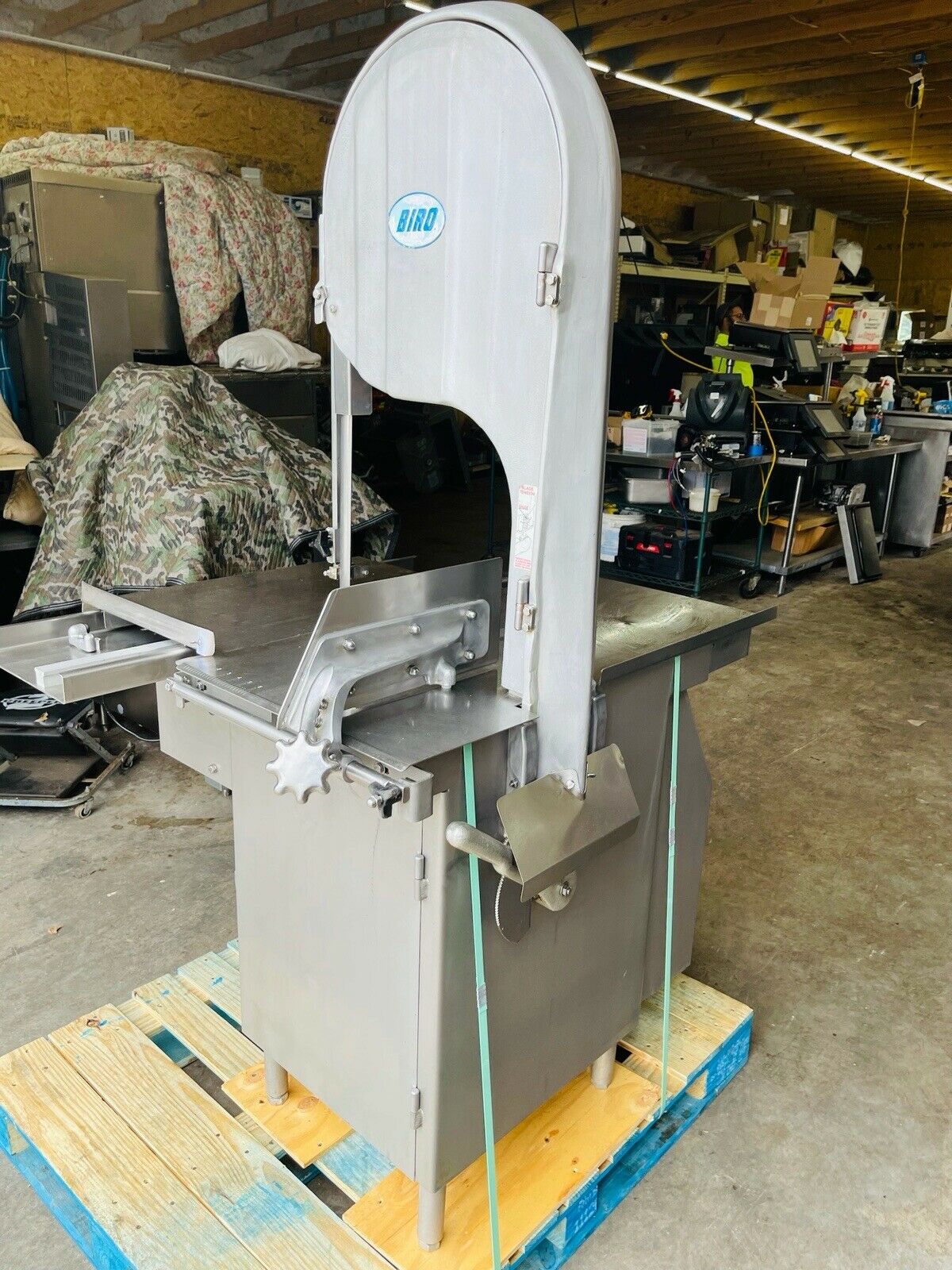

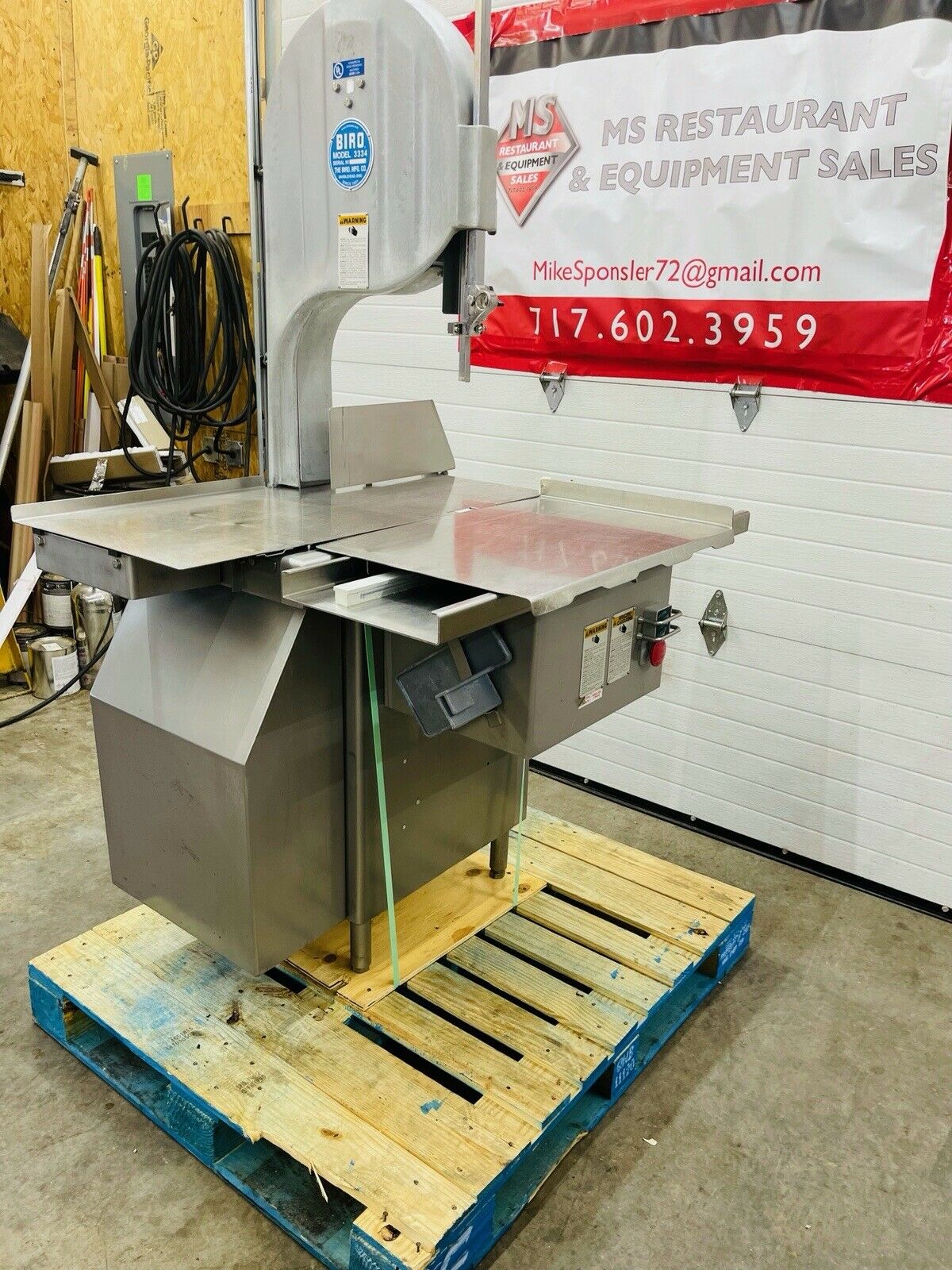

Biro 3334SS -4003 Meat Saw
New upper Wheel Fully Refurbished Tested & Working! 3Ph 208-230v

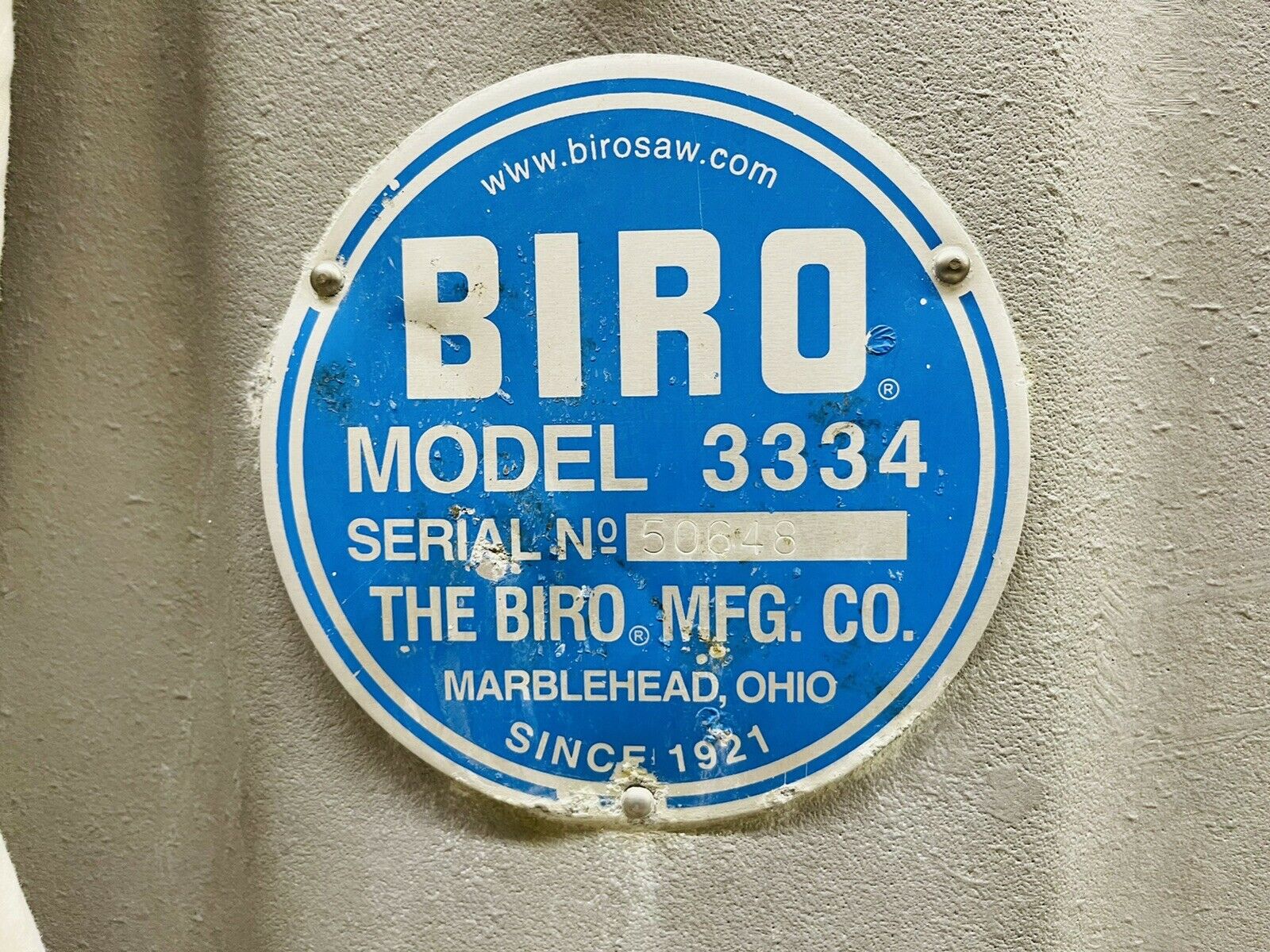

MODEL 3334SS-4003 MEAT SAW
The industry standard 16” Meat Saws feature all stainless steel unitized welded enclosed base structure with aluminum head structure. A stainless steel head is available at extra cost. The 3334SS is of proven design, durable, reliable, and is applicable to all small, medium, and large supermarkets, and all small and medium plants. True blade alignment allows excellent blade tracking, giving dependable straight cutting year after year. A broad range of right hand feed and true left hand feed machines are available. There are numerous configurations and optional equipment to select from to meet your exact requirements.
SPECIFICATIONS
MODEL
3334SS-4003
CONSTRUCTION
Unitized stainless steel base, tables, leg bolt levelers, carriage channel & supports, Aluminum head and door, removable.
MOTORS
Totally Enclosed Fan Cooled
STANDARD EQUIPMENT
Two saw blades
Safety end cut pusher plate
SWITCH
Watertight magnetic, thermal overload and under voltage protection
HEAD AND DOOR
Aluminum: removable head • removable door
BASE STRUCTURE
Unitized welded, Stainless steel
BLADE STANDARD
124” (3150mm) L x 5/8” (16mm) W x .022 (0.56mm) thick, 3 teeth per inch, hard tooth, (two supplied with each saw)
BLADE GUIDE
Upper and lower blade back up guide assemblies with carbide long-life inserts, each removable as an assembly
BLADE TENSION
Ratchet arm and cam against pound tested spring and tension spring gauge
BLADE WHEELS

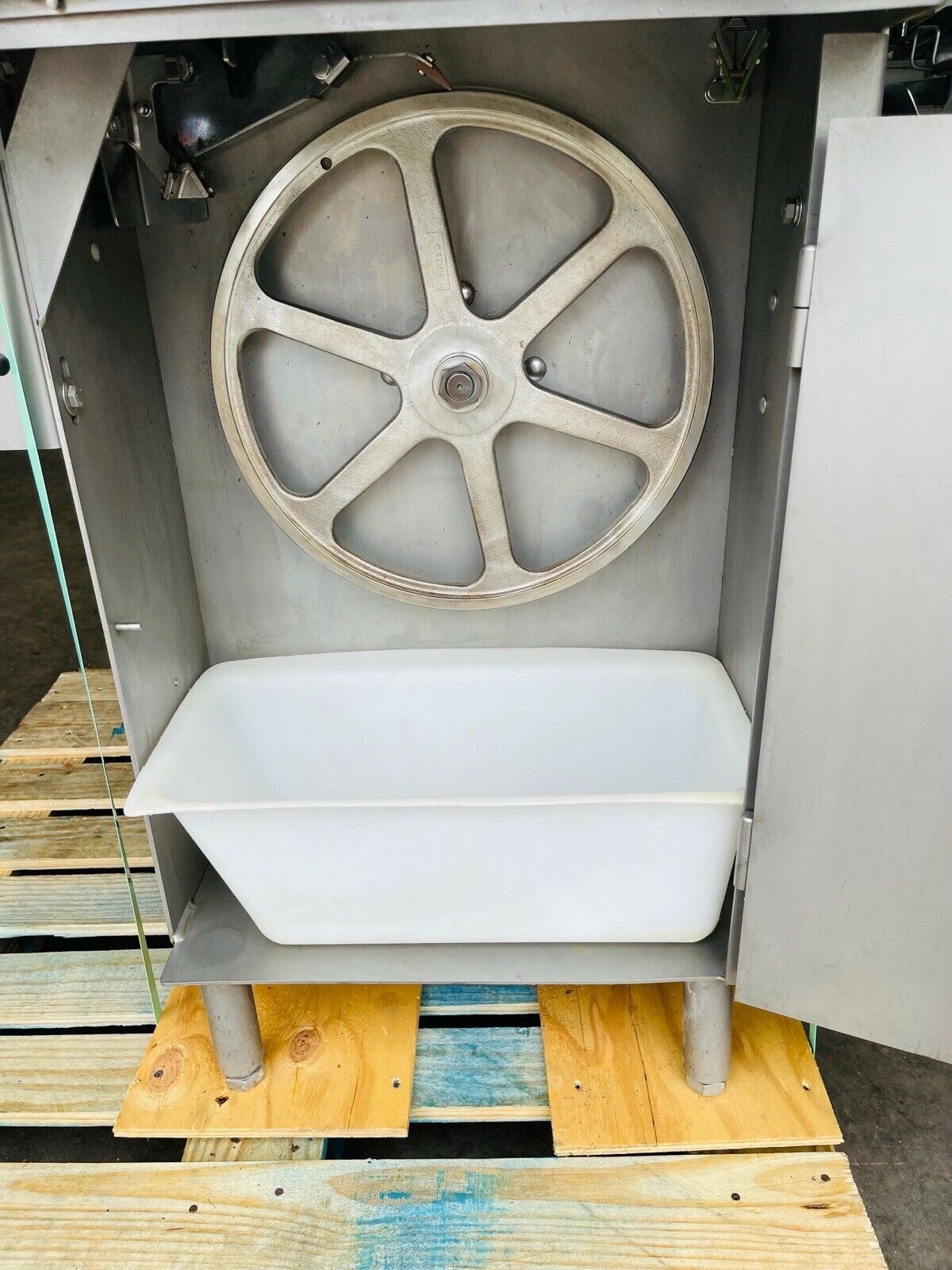

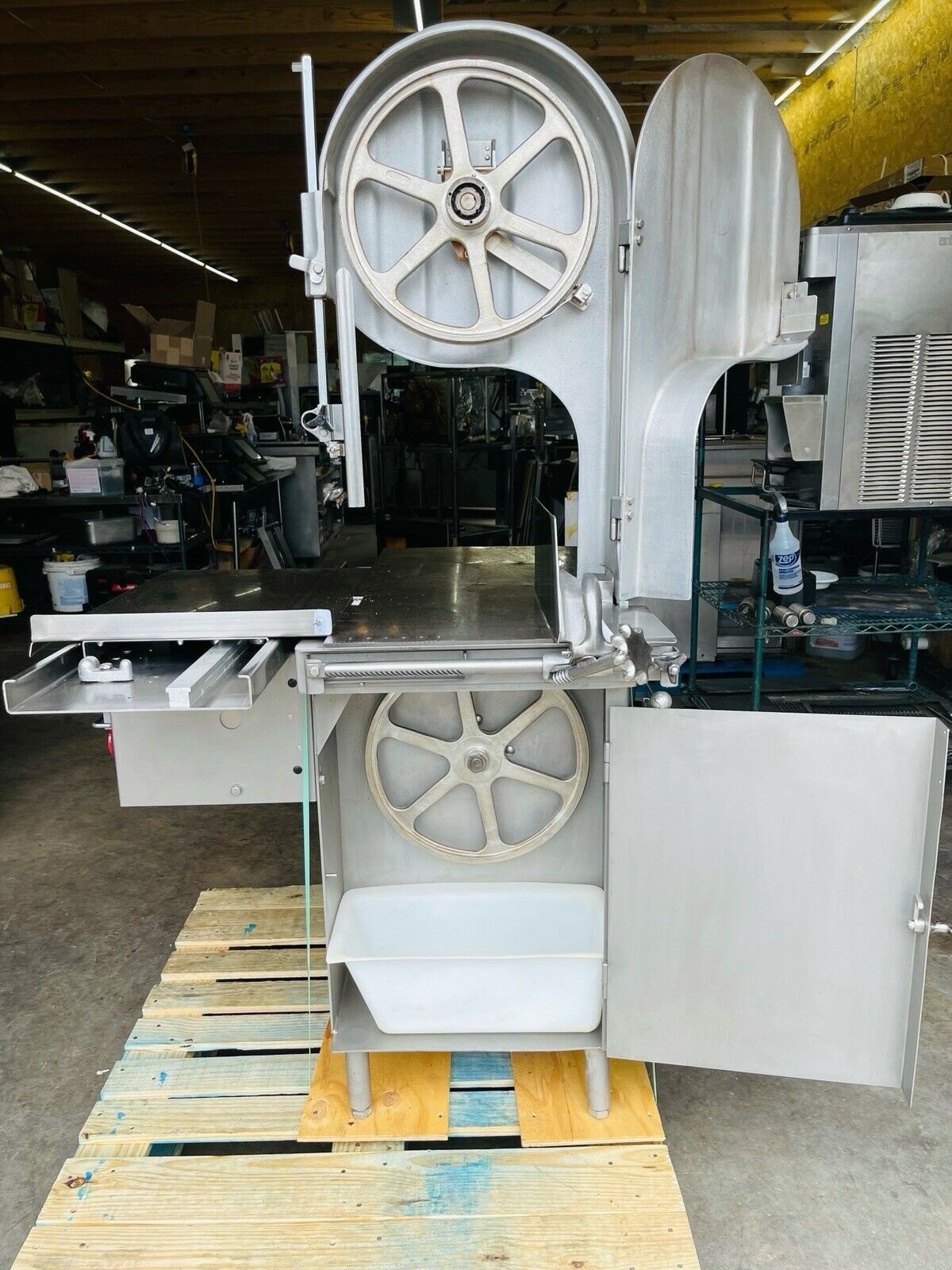

16” (40.64cm) single flange, cast iron, nickel plating, upper wheel assembly removable
BEARINGS
Heavy duty tapered roller bearings used in upper wheel hub and lower bearing housing
CATCH PAN
Poly Pan, rounded corners, sealed off from other parts of base, accessible through hinged door
CLEANING UNIT
Stainless steel body, long-life carbide guide inserts, steel saw cleaners, removable as a unit for easy cleaning (assembly also adjustable as a unit)
DRIVE SYSTEM
Non-slip silent v-belt, tension adjustable
LEGS
Stainless steel leg bolt levelers
MEAT CARRIAGE
Larger stainless steel 8-bearings E-Z flow carriage 17-1/2 (444 mm)W x 25-9/16” (649 mm)L
MEAT GAUGE PLATE
Stainless steel faced, adjustable from 1/16” (1.6mm) to 6-1/2” (165mm), Locks in position, easy to adjust, entire assembly removable for cleaning
MOTOR COMPARTMENT
Sealed off from meat contact areas, easily accessible through removable panel door
PLATTER
Held in place with two stainless steel push-pull hold down latches
PUSHER PLATE
Safety end cut pusher plate and safety pusher plate storage hanger are supplied as standard equipment
We Ship worldwide. Shipping to a commercial address is $299. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
“FLAT RATE SHIPPING IS ONLY VALID FOR LOWER 48 CONTIGUOUS STATES TO A COMMERCIAL ADDRESS WITH A DOCK, FORKLIFT OR VIABLE WAY TO UNLOAD THE FREIGHT.
AK, HI, PR & INTERNATIONAL MUST MESSAGE FOR SHIPPING QUOTE.”
