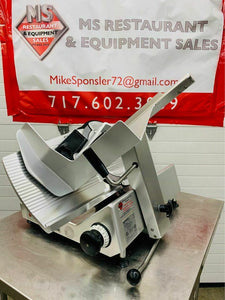

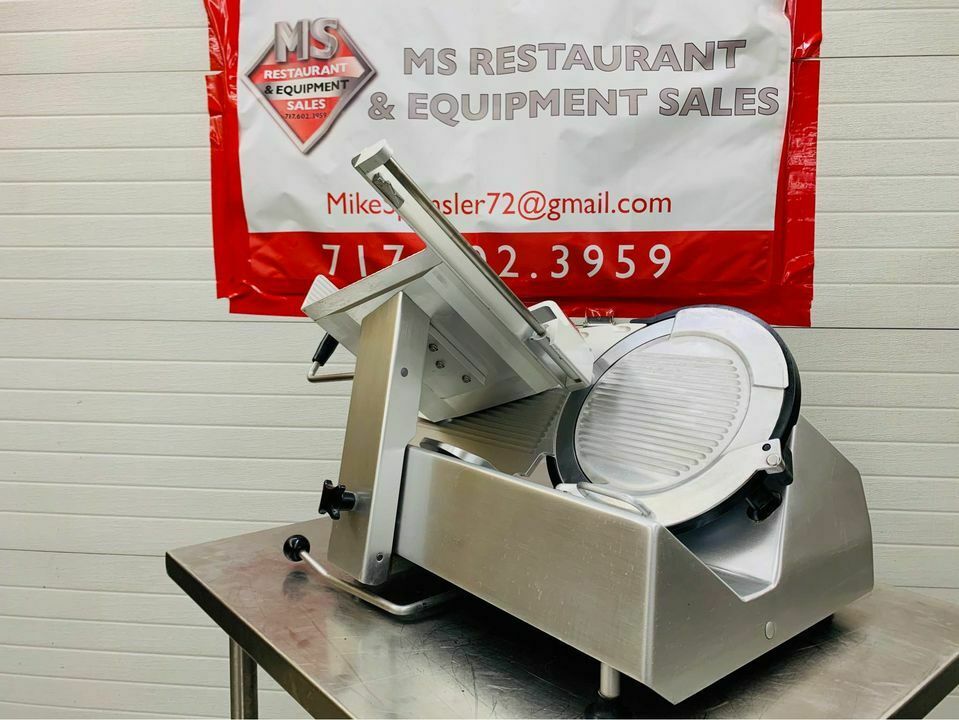

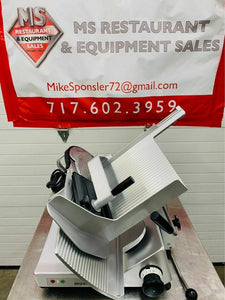

Bizerba GSP H IP33
Manual 2013
This slicer consists of a powerful blade drive. In addition, the GSP H can be fitted with Ceraclean® surface which is easy to clean and ensures easy feeding of products to the blade. Area of Use Particularly suitable as all-rounder for kitchens and cafeterias/canteens Sales counter Highlights The right carriage version for any application Drain on the slicing system and drain protection of liquids for a clean work station Optional hygienic Ceraclean® surface Optional energy and safety package allows automatic blade start/stop via slice thickness adjustment and visualization of operating state Product images and technical information could deviate and may not be available in your country. Further details Hygiene Bizerba sharpeners are separate units representing no hygiene risk during sharpening. Of course, same as with all other removable parts, this sharpener can be cleaned in the dishwasher. Sophisticated design, careful material selection and elegant solutions such as a lifting device for quick and easy cleaning by hand underneath the slicer.
Safety
The optional safety package "Illumination" shows the operator the machine operating state at a glance thus considerably reducing the risk of injury. Voltage 120 V / 230 V Housing materials anodized aluminum Bizerba Ceraclean® (optional) fiber-reinforced composite transparent plastics for food contact
Installation area
L x W 532 x 478 mm / 20.9“ x 18.8“ Maximum dimensions L x W x H GSP H 0°: 770 x 769 x 567 mm / 30.3“ x 30.3“ x 22.3“ GSP H 18° L: 801 x 751 x 562 mm / 31.5" x 29.6" x 22.1" GSP H 25° L: 809 x 906 x 574 mm / 31.9" x 35.7" x 22.6" GSP H 25° H: 808 x 908 x 598 mm / 31.8" x 35.7" x 23.5" Blade diameter 330 mm / 13.0” Exception GSP H 0°: 350 mm / 13.8" Carriage inclination 0°, 18° or 25° towards operator Blade alignment 40° angle Maximum size of products to be sliced Height: between 126 and 246 mm / 5.0" - 9.7" Width: 290 mm / 11.4" Round: between 202 and 260 mm / 8.0" - 10.2" The maximum product size depends on the carriage version. GSP H 0° has the largest product feed through, the GSP H 25° H the smallest. Slice thickness adjustment Infinitely 0 - 24 mm / 0 - 0.9" Fine setting 0 - 3 mm / 0 - 0.1” IP rating IP33
We Ship worldwide. Shipping to a commercial address is $299. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via common carrier.
Local pickup available.
