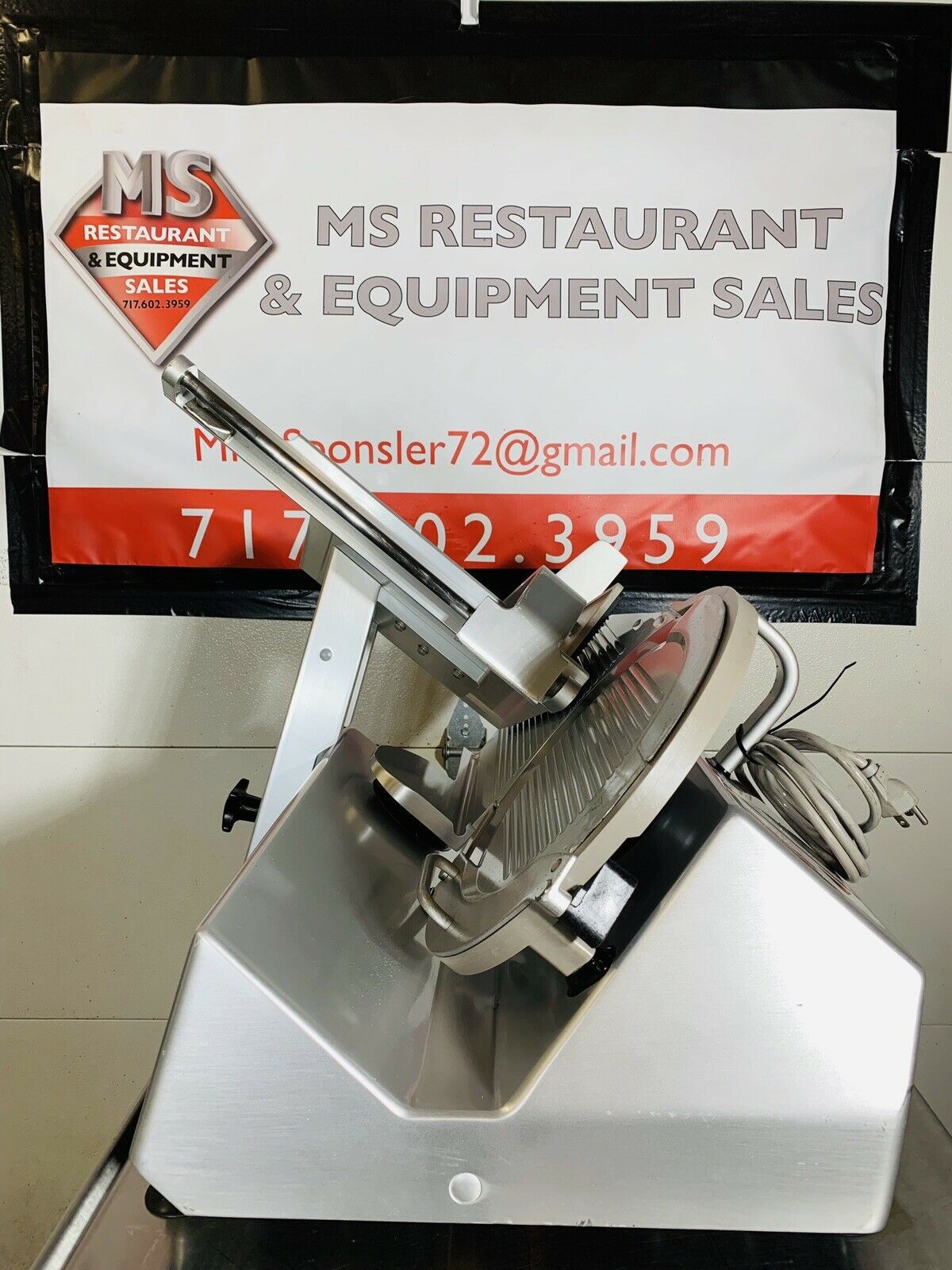

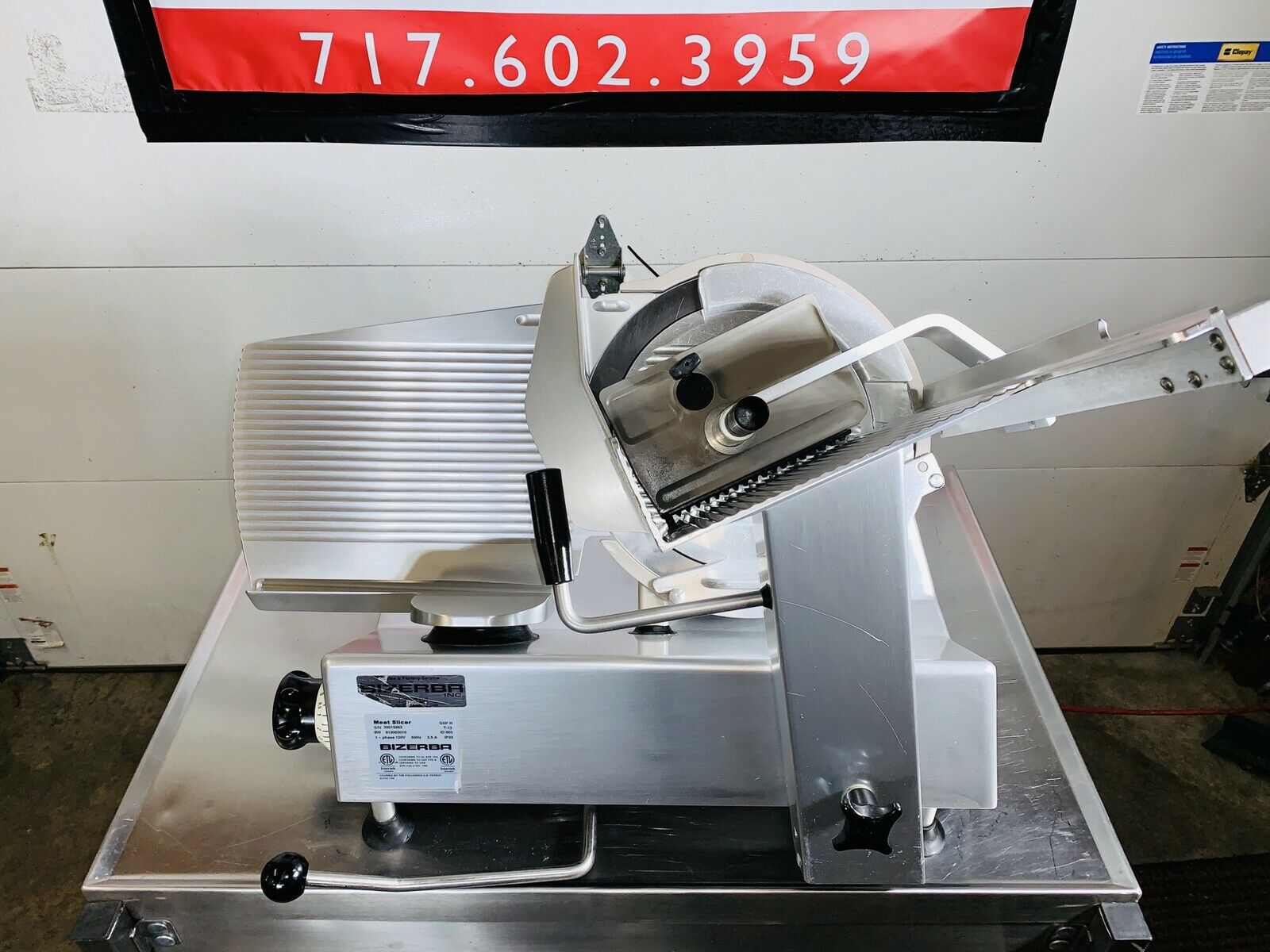

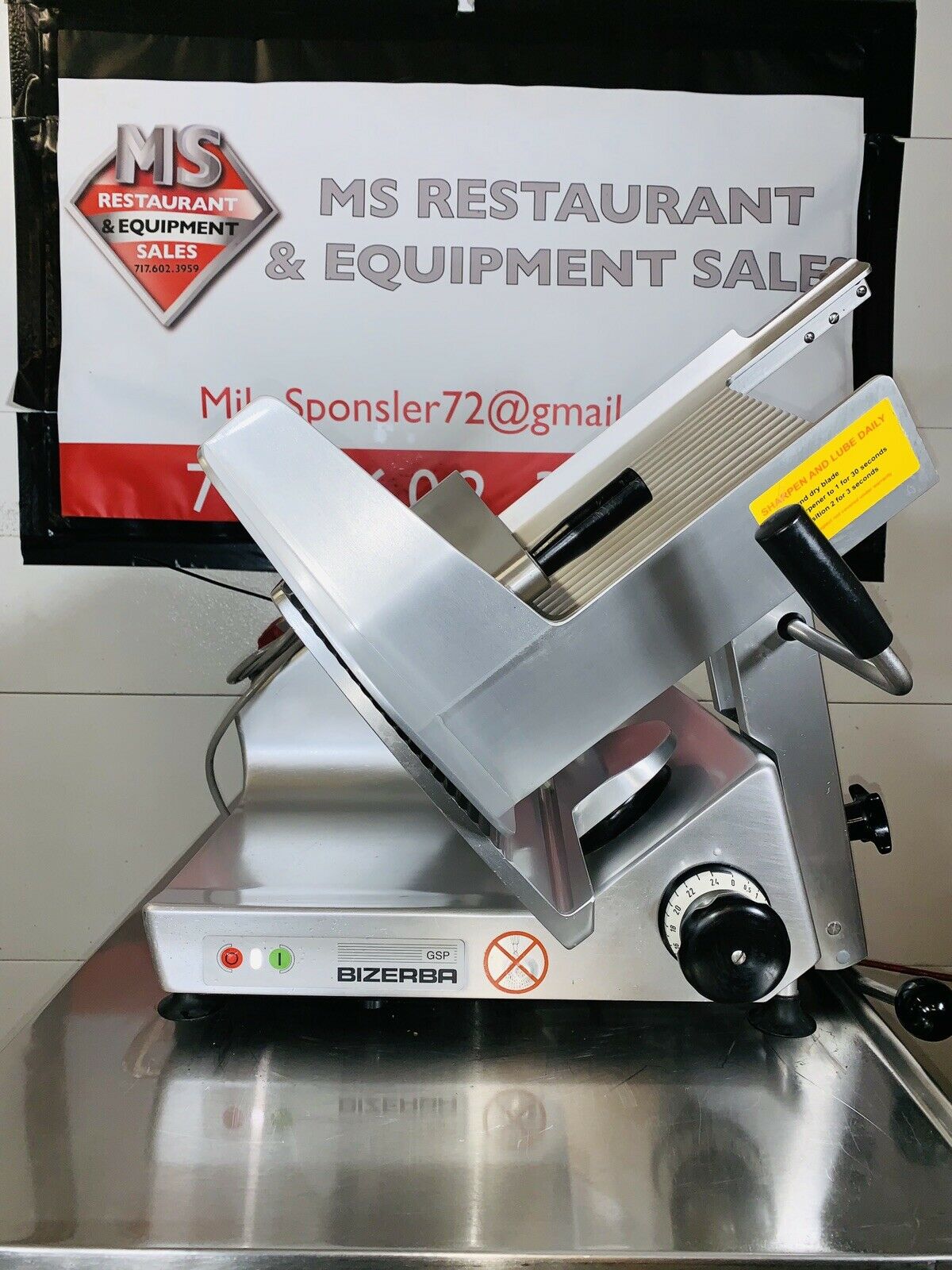

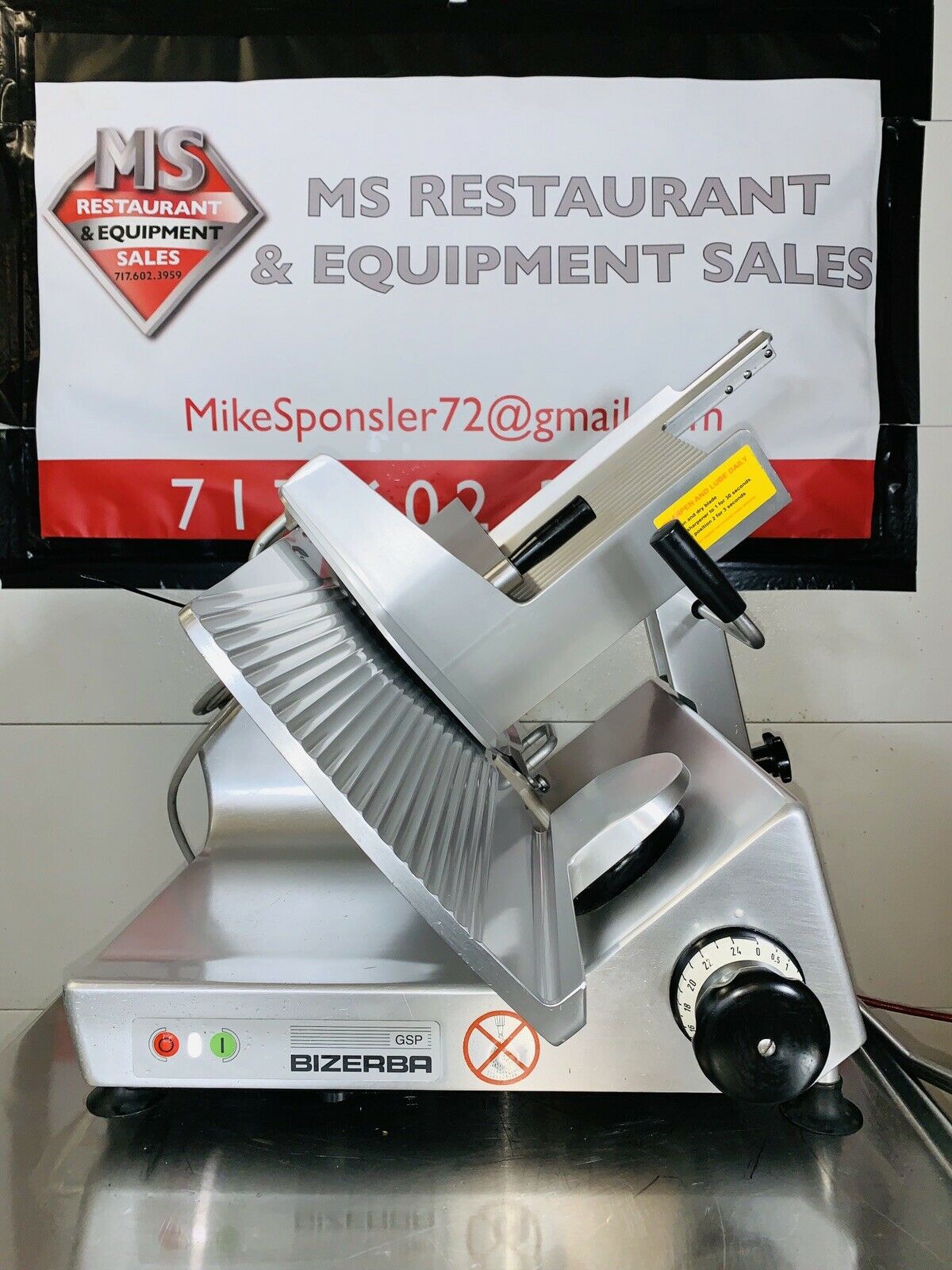

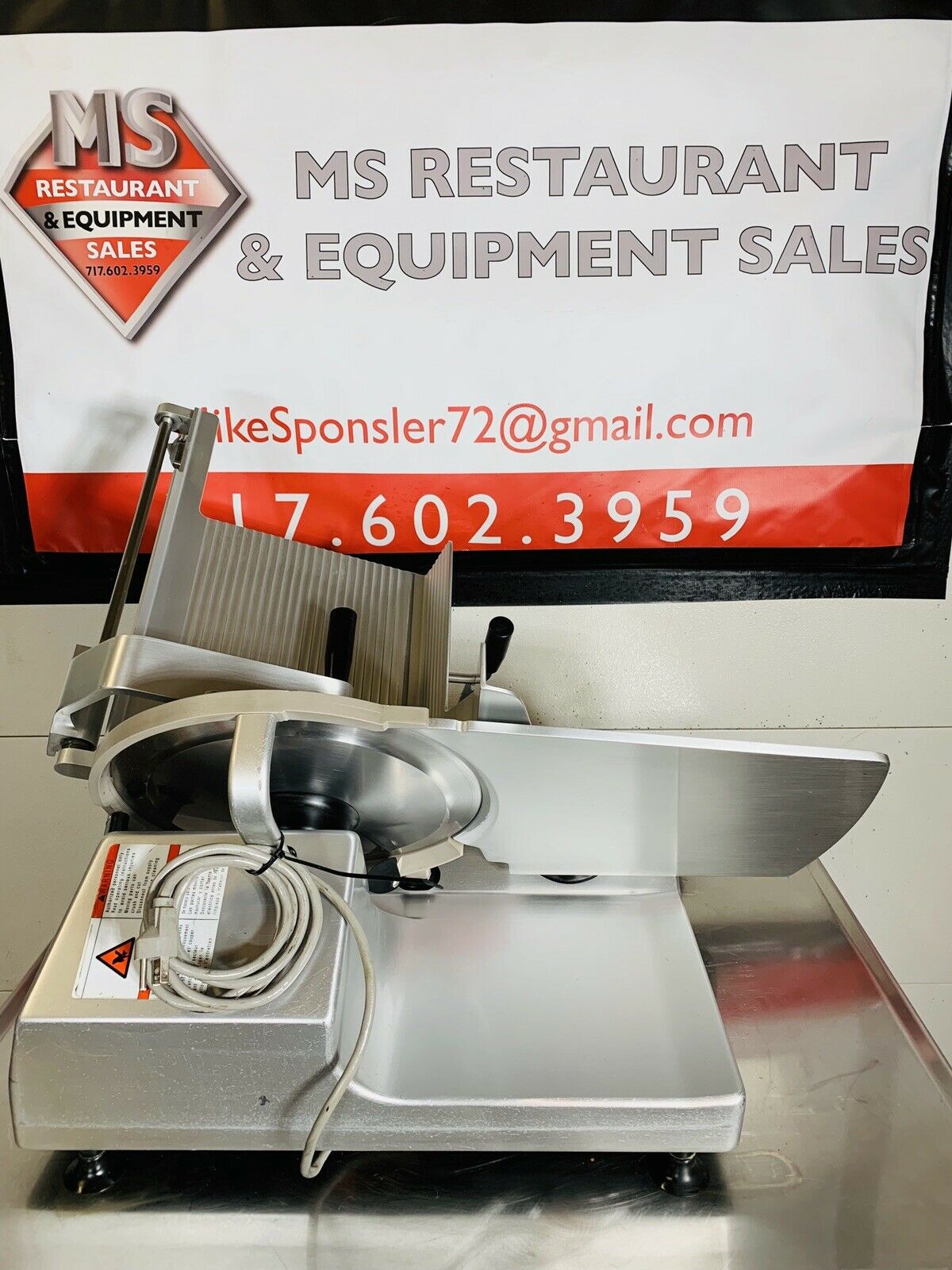

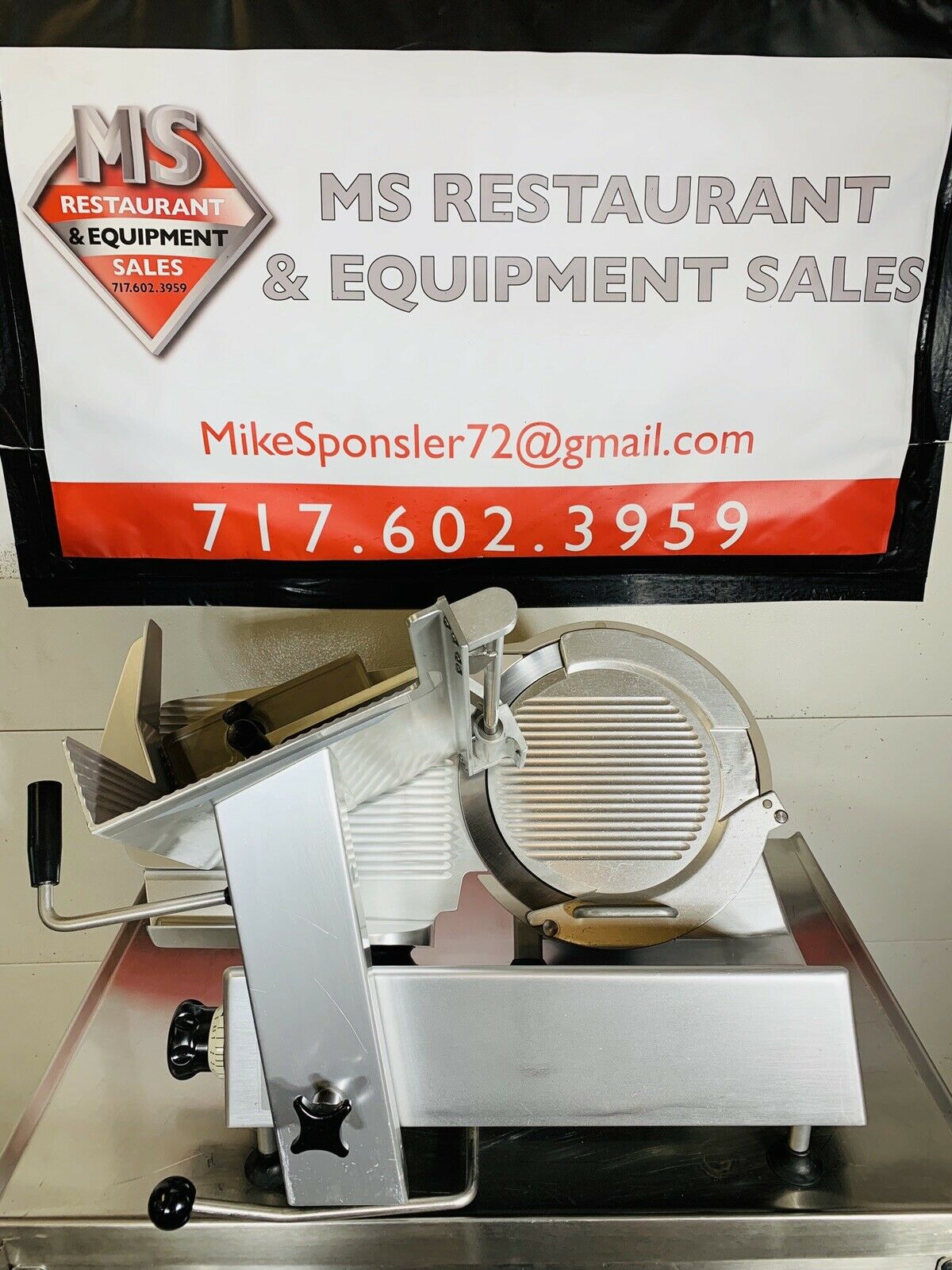

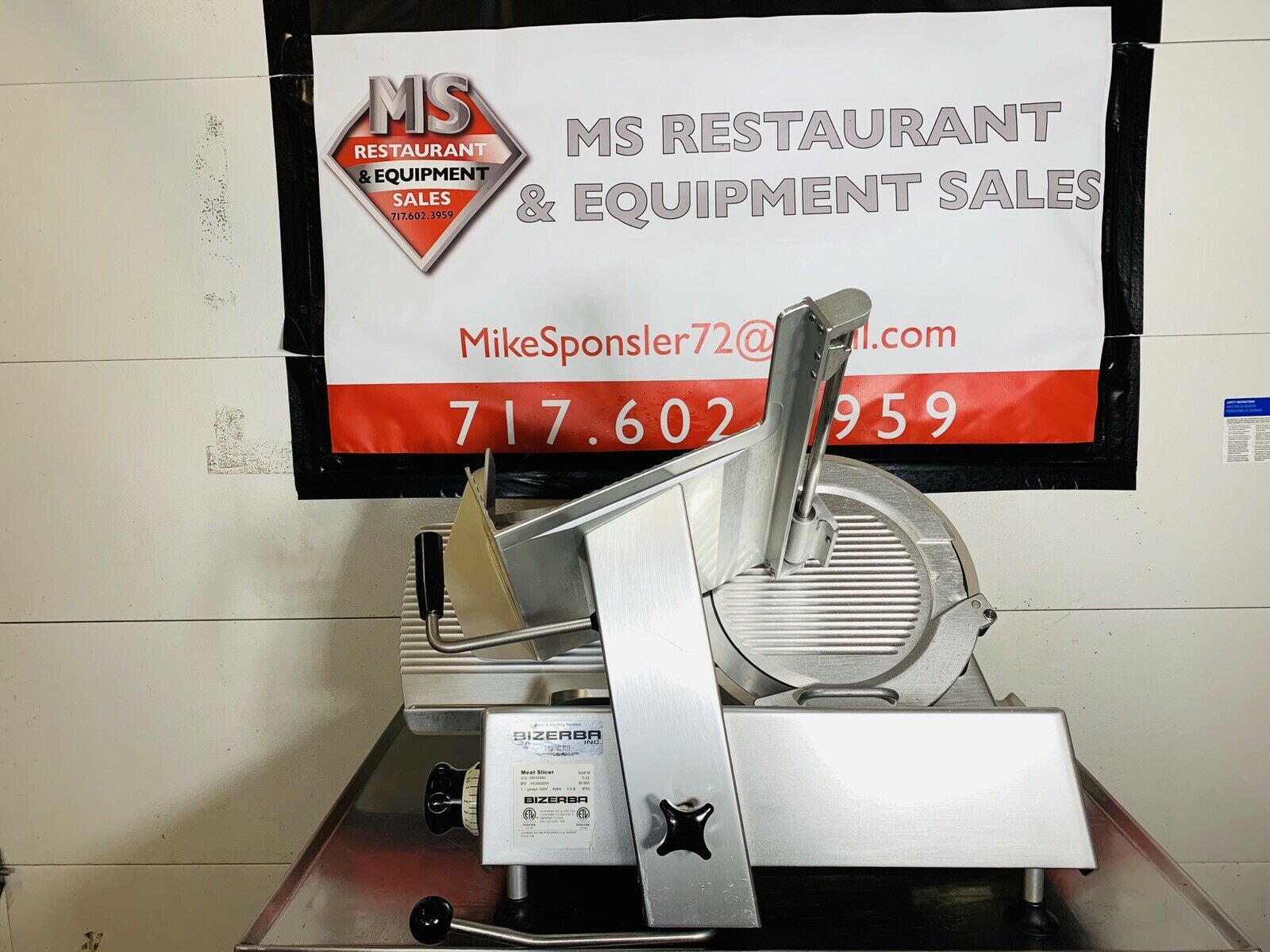

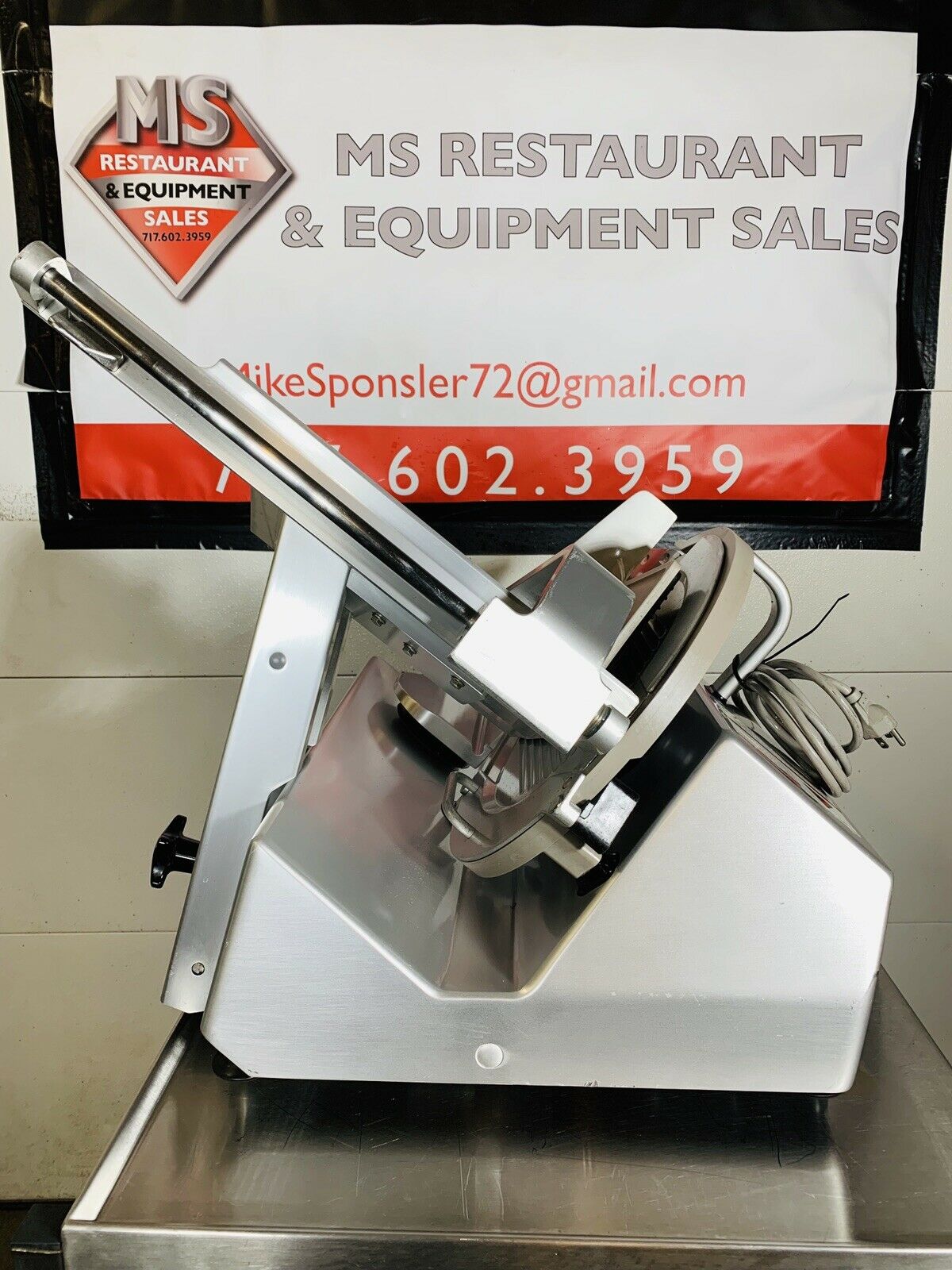

Bizerba Manual gravity slicer GSP H
The manual premium commercial gravity feed slicer sets worldwide standards in terms of ergonomics, hygiene, and safety.
This manual slicer uses gravity and is easy to operate even when slicing heavy products thanks to its ergonomic, inclined carriage and the Bizerba precision. It stands out due to its wealth of variants. Individual and powerful slicer for a variety of products to be sliced in manual mode.
This slicer consists of a powerful blade drive.
In addition, the GSP H can be fitted with Ceraclean® surface which is easy to clean and ensures easy feeding of products to the blade.
Area of Use
Particularly suitable as all-rounder for kitchens and cafeterias/canteens
Sales counter
Highlights
The right carriage version for any application
Drain on the slicing system and drain protection of liquids for a clean work station
Optional hygienic Ceraclean® surface
Optional energy and safety package allows automatic blade start/stop via slice thickness adjustment and visualization of operating state
Product images and technical information could deviate and may not be available in your country.
Further details
Hygiene
Bizerba sharpeners are separate units representing no hygiene risk during sharpening. Of course, same as with all other removable parts, this sharpener can be cleaned in the dishwasher.
Sophisticated design, careful material selection and elegant solutions such as a lifting device for quick and easy cleaning by hand underneath the slicer.
Safety
The optional safety package "Illumination" shows the operator the machine operating state at a glance thus considerably reducing the risk of injury.

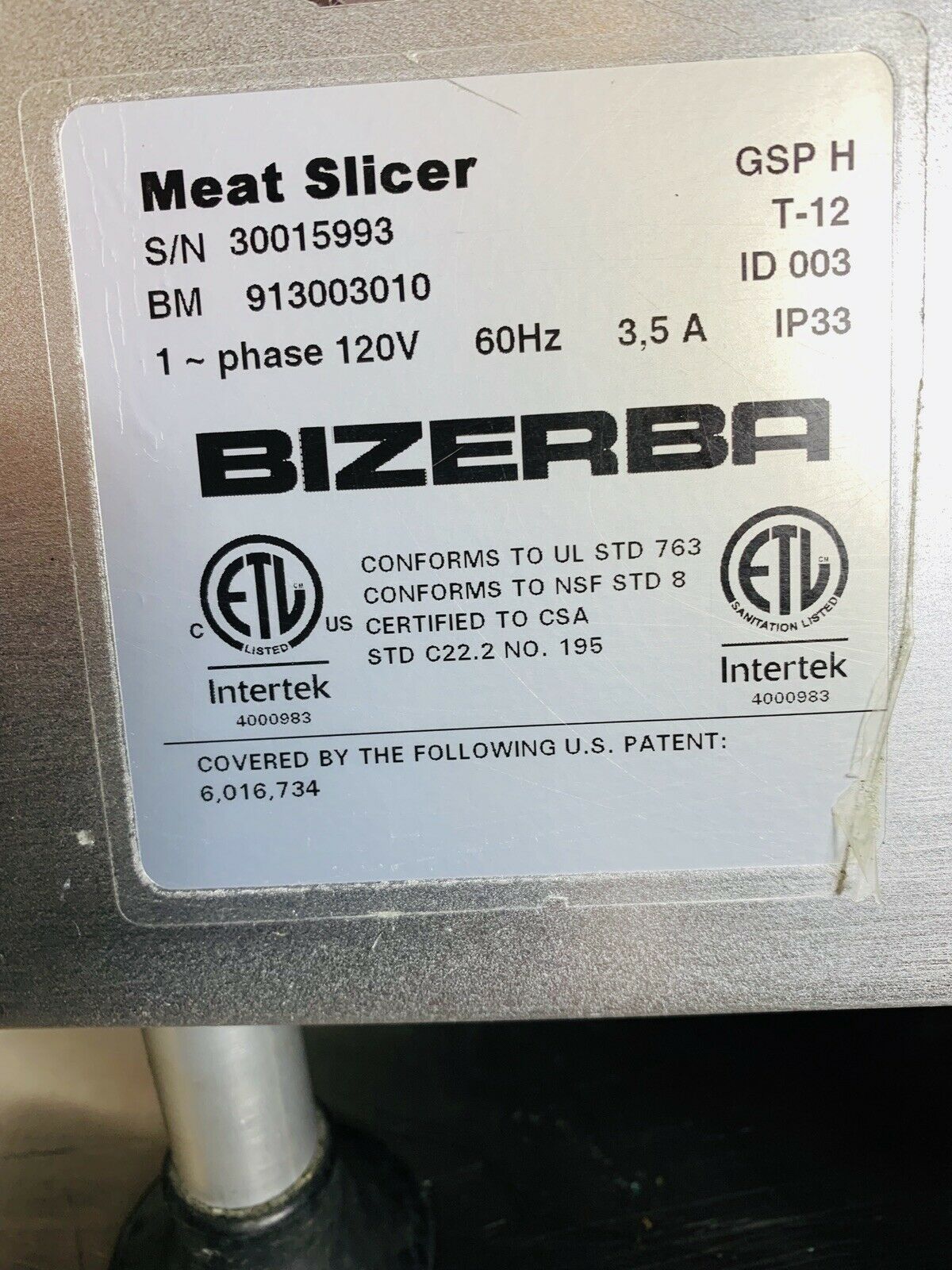

Voltage
120 V / 230 V
Housing materials
anodized aluminum
Bizerba Ceraclean® (optional)
fiber-reinforced composite
transparent plastics for food contact
Installation area L x W
532 x 478 mm / 20.9“ x 18.8“
Maximum dimensions L x W x H
GSP H 0°: 770 x 769 x 567 mm / 30.3“ x 30.3“ x 22.3“
GSP H 18° L: 801 x 751 x 562 mm / 31.5" x 29.6" x 22.1"
GSP H 25° L: 809 x 906 x 574 mm / 31.9" x 35.7" x 22.6"
GSP H 25° H: 808 x 908 x 598 mm / 31.8" x 35.7" x 23.5"

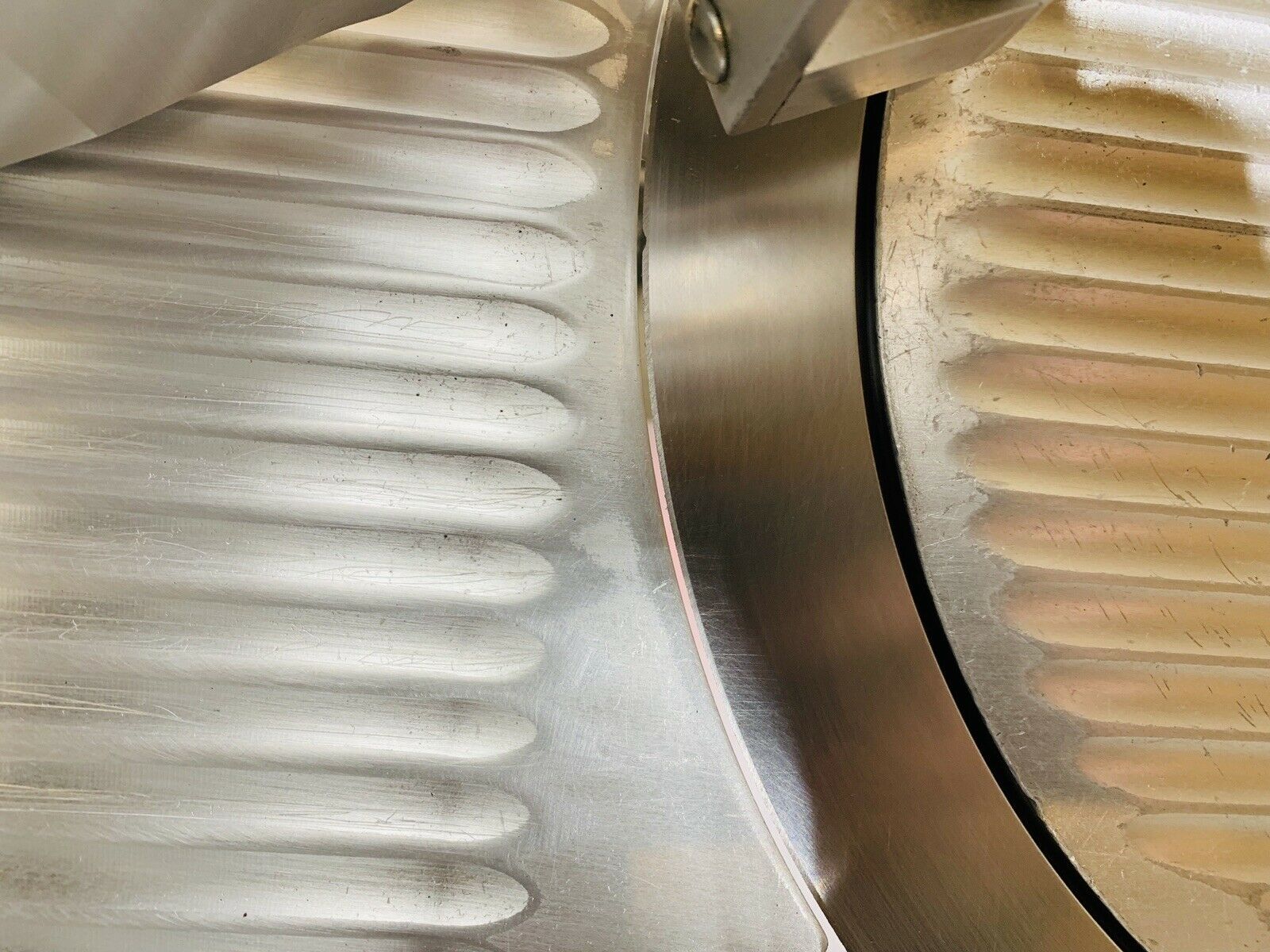

Blade diameter
330 mm / 13.0”
Exception GSP H 0°: 350 mm / 13.8"
Carriage inclination
0°, 18° or 25° towards operator
Blade alignment
40° angle
Maximum size of products to be sliced
Height: between 126 and 246 mm / 5.0" - 9.7"
Width: 290 mm / 11.4"
Round: between 202 and 260 mm / 8.0" - 10.2"
The maximum product size depends on the carriage version. GSP H 0° has the largest product feed through, the GSP H 25° H the smallest.
Slice thickness adjustment
Infinitely 0 - 24 mm / 0 - 0.9"
Fine setting 0 - 3 mm / 0 - 0.1”
IP rating
IP33
