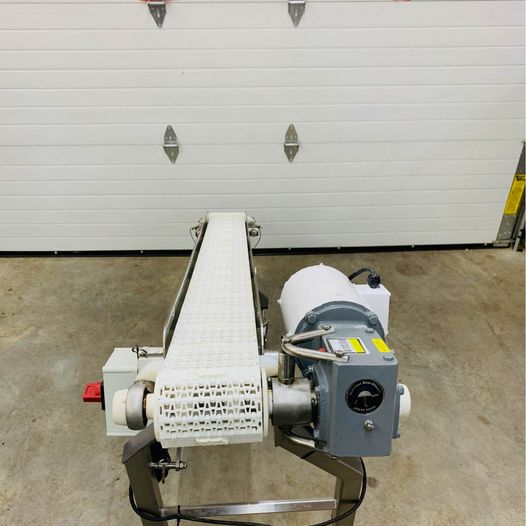

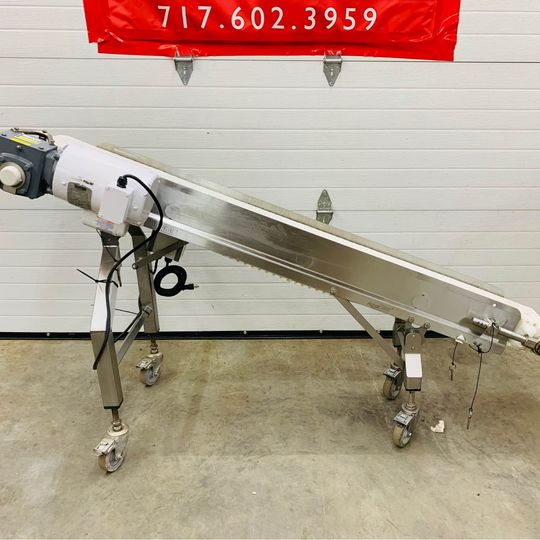

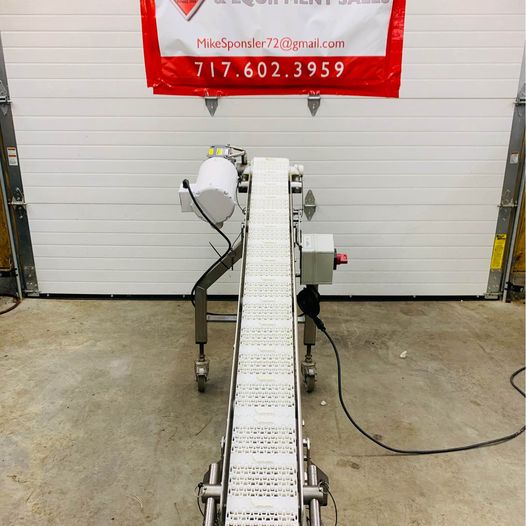

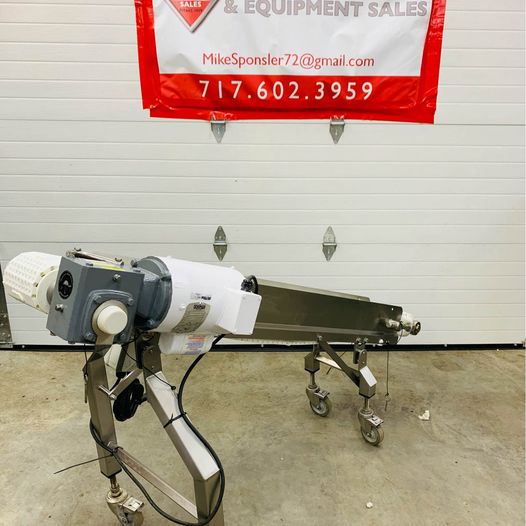

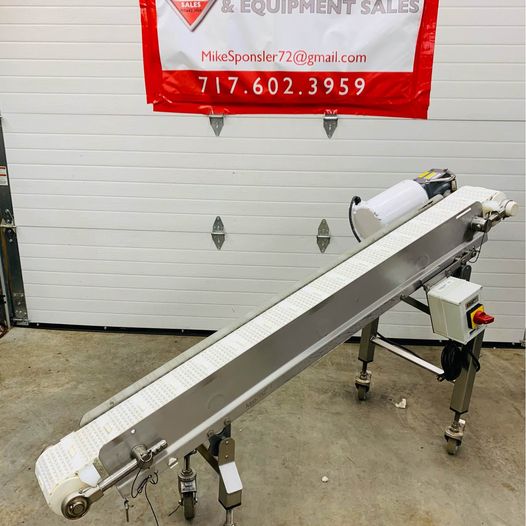

Dorner AquaPurf 7400 Meat Conveyor
Fully Refurbished Tested & Working!
WATCH VIDEO BELOW!
Dorner AquaPruf 7400 Conveyor:
Frame is designed with no horizontal surfaces for optimum cleaning. Conveyors over 10′ long consist of multiple sections which are bolted together.
Bearings are mounted in cast stainless steel housing for maximum performance in washdown environments.
Solid UHMW wear strips are easily lifted out of the frame without tools to minimize cleaning time.
The tool-less tip up pulley allows conveyor end to be lifted easily for quick access to inside of conveyor for cleaning.
Conveyor is designed to withstand high pressure (100-1,500 psi) spray and chlorinated cleaning solutions.
The return belt supports are segmented plastic slide blocks and are easily removed without tools for effective cleaning.
Drive sprockets are located on a 1.5″ square stainless steel shaft without fasteners to provide optimum drive strength and cleanability
Frame cut-outs (optional) are available to allow spraying the inside of the conveyor without lifting the belt.
Nose bar idler ends (optional) are constructed of a machined UHMW bar to provide a 1.5″ diameter transfer.
The nose bar drive configuration (optional) allows the use of the nose bar transfer on each end of the conveyor for small product transfers.
Belt lifters (optional) raise the belt form the wear strips by simply pulling an external lever for fast access and effective cleaning.
Note: Proper conveyor application, cleaning and sanitation is the responsibility of the end user.
When required Dorner can passivate conveyors or provide most materials in 316 or 316L stainless steel.
Load: 20 lbs/square-foot of belt
Belt widths: 6″ to 60″
Lengths: 36″ to 999″
Belt speed: 233 ft/min maximum
Wear strip material is UHMW
Continuous TIG welded 304 stainless steel frame
Stainless Steel Conveyors that Reduce Product Loss
#4 Pollish on all outside surfaces
Bearing material is 400 stainless steel

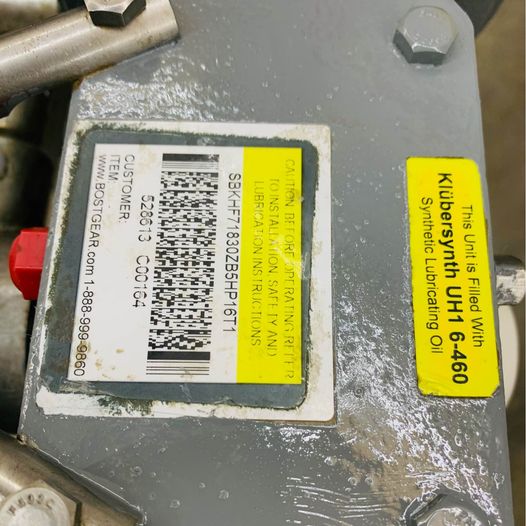

Bearing lubricant is H1 type FDA lubricant
FDA approved belting and plastic components
We Ship worldwide. Shipping to a commercial address is $299. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
