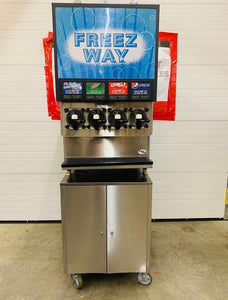

FBD-564 Carbonated Frozen Beverage Dispenser 4 Barrel
NO CART INCLUDED
Tested & Working Great!
$299 shipping
FBD-564 Product Features: • Inline CarbonationTM – creates a more consistent over-run, quality and yield • AccuFreezeTM – maintains product consistency, delivering the most consistent frozen beverage, drink after drink • RapidFreezeTM – Cold chamber system improves recovery and draw-time, while reducing the compressor workload, and increasing dispenser durability • Electronic Simplicity offers easy-to-use keypad interface • Optimal Use of Counter Space with minimum ventilation of two inches side or back • ScrollTM Compressor – provides more reliable operation, and fewer moving parts than reciprocating compressors • Customizable individual barrels allows for hundreds of different drink profile combinations, including sugar free options DIMENSIONS Countertop unit: Width: 26.0 in (660 mm) Depth: 32.3 in (820 mm) Height: 41.4 in (1052 mm) (with merchandiser door) CAPACITY (60Hz) Barrel size: 176 oz Continuous draw (alternating barrels): 3,840 oz/hour Recovery time: 4 minutes ELECTRICAL REQUIREMENTS 200-245 VAC single phase; 3 wire, 30 amp uses NEMA #L-630R receptacle REFRIGERATION 19,000 BTU/Hr, R-404A (60Hz) SPACE REQUIREMENTS Sides and back: 2 in (51 mm) minimum Top: 12 in (305 mm) minimum WEIGHT Operating unit: 460 lb (209 kg) SYRUP CONNECTION Bag-In-Box (BIB) MOTORS Beater: (4) 1/6 HP (120 W) Fan: (1) 1/4 HP (135 W) WATER REQUIREMENTS Fresh water, minimum 3/8” supply, 30 psi flowing (207 kPa) ADDITIONAL ACCESSORIES Base cart (included) Leg kit (set of four) Stainless Steel side panels Water-cooled unit Proven Reliability The 56X series is the most popular unit on the market. With more than 41K units sold worldwide, the 56X series is widely trusted to deliver superior design, usability, and reliability at the best value. No other product has such a proven track record. Value Capacity High capacity for a value investment! The 56X series performs at a capacity that exceeds or matches the competition – all at the best value on the market. Available in 2, 3 and 4 barrels, the 56X Series can pour up to 3,840 oz./hr.
Lowest cost of ownership due to lower acquisition cost, lower maintenance costs and energy saving software.
