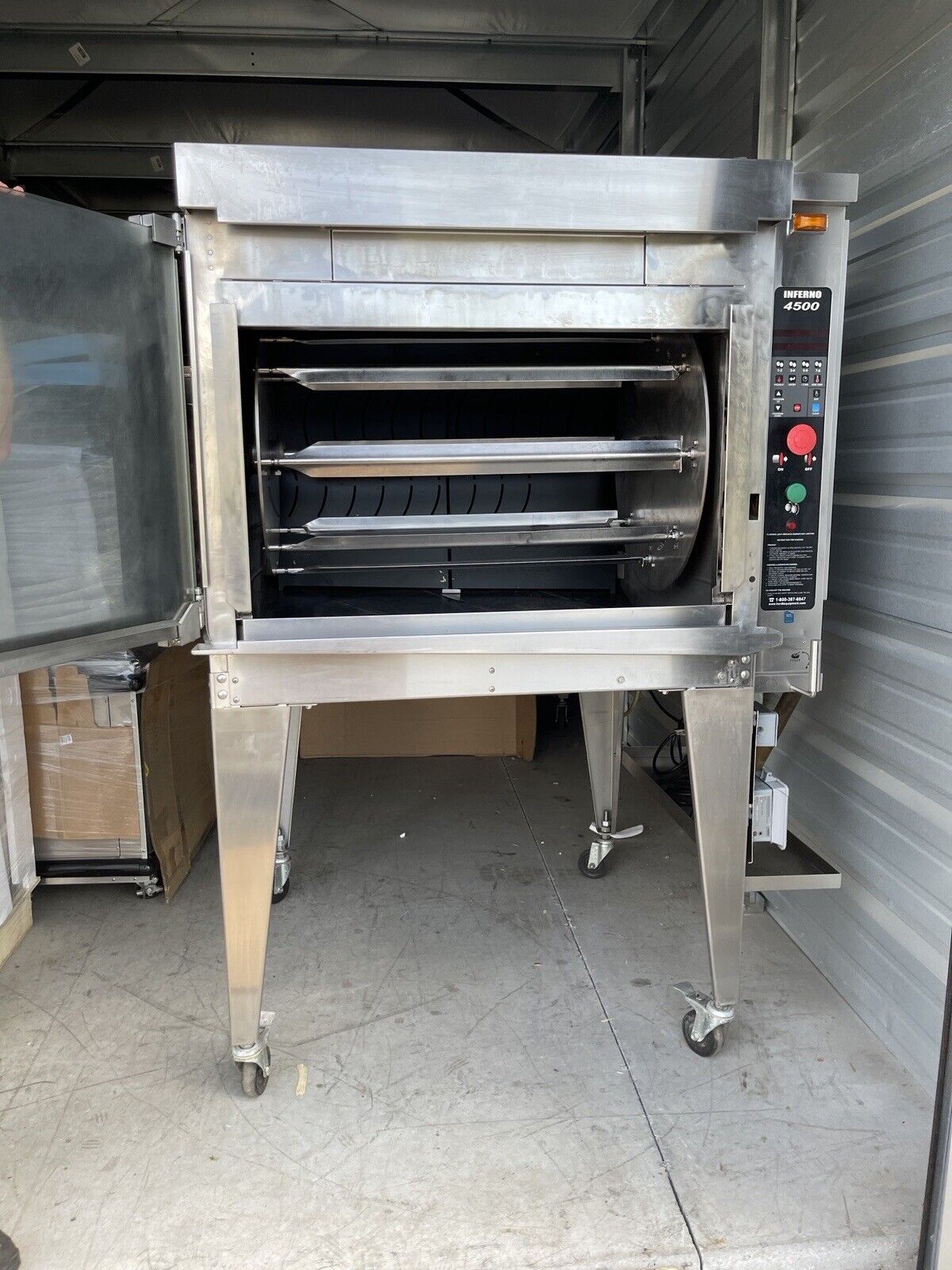

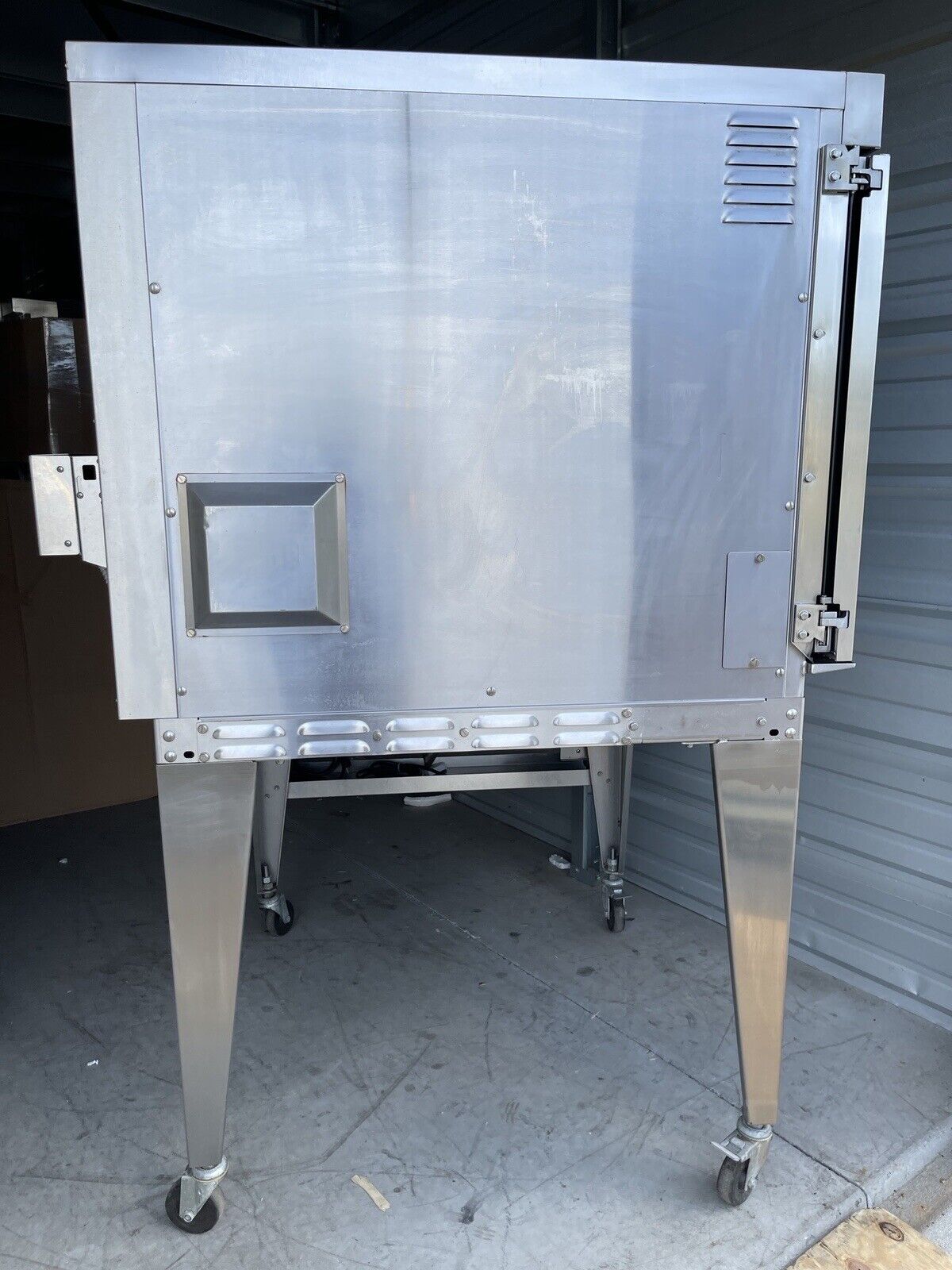

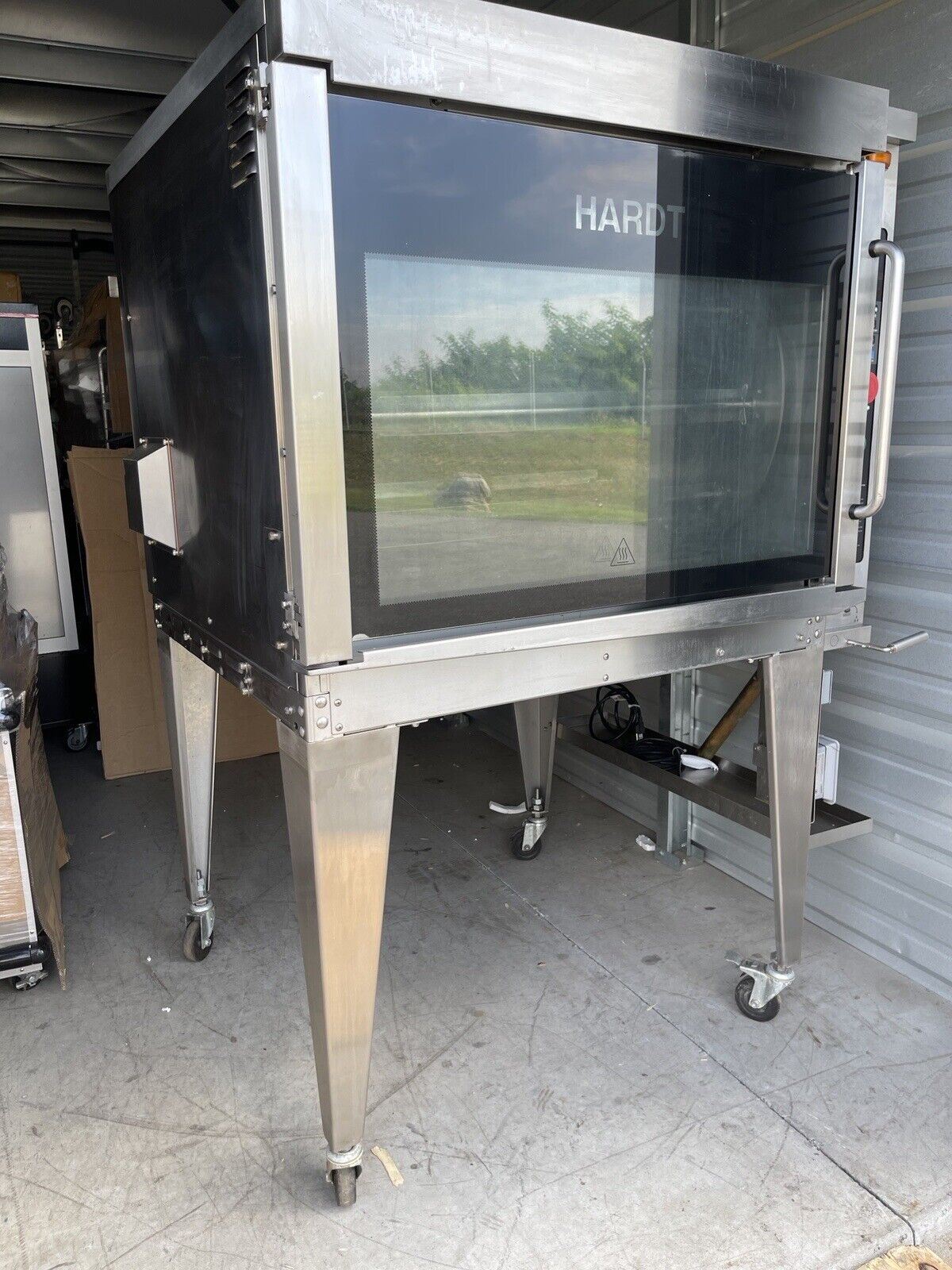

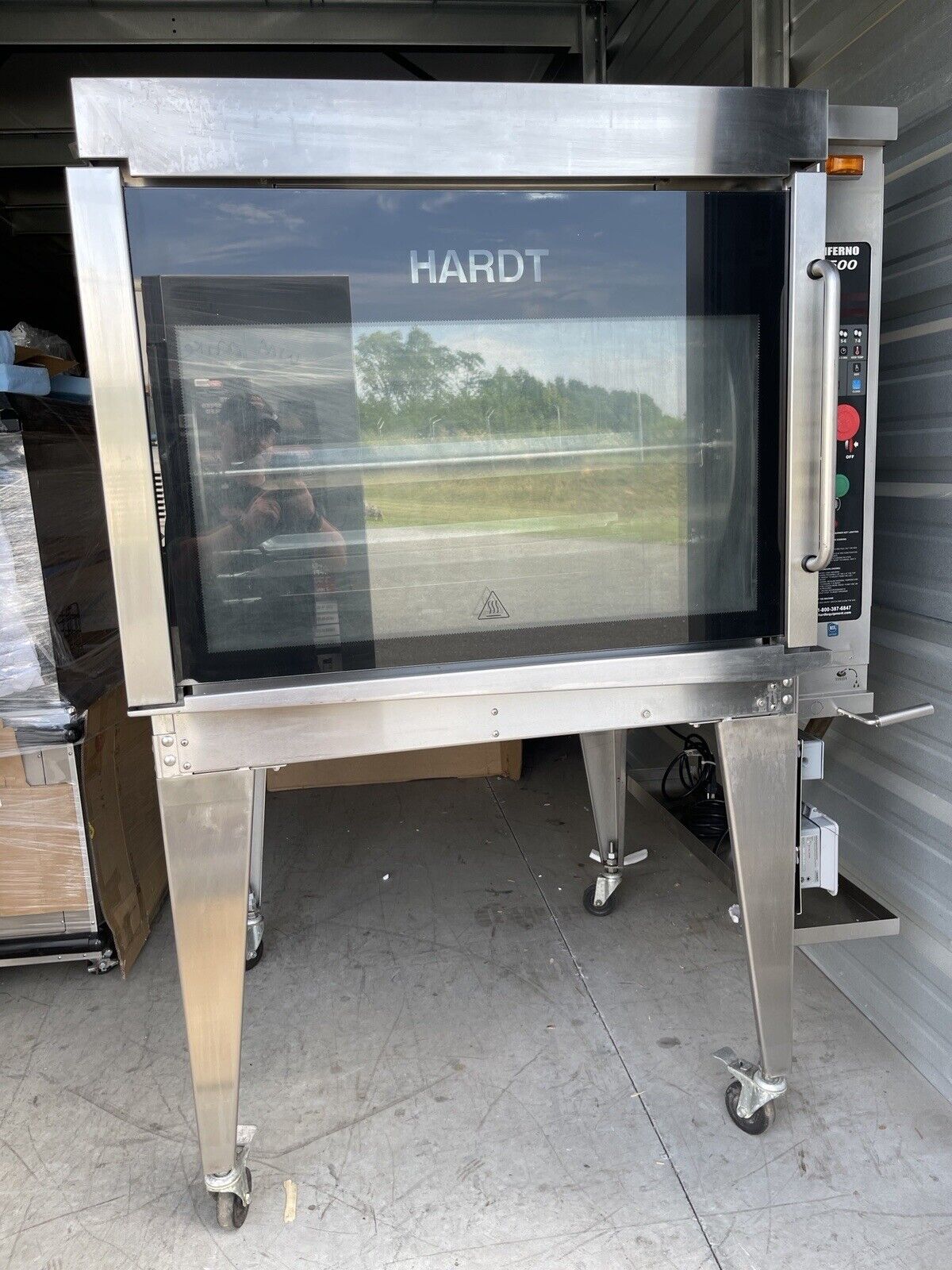

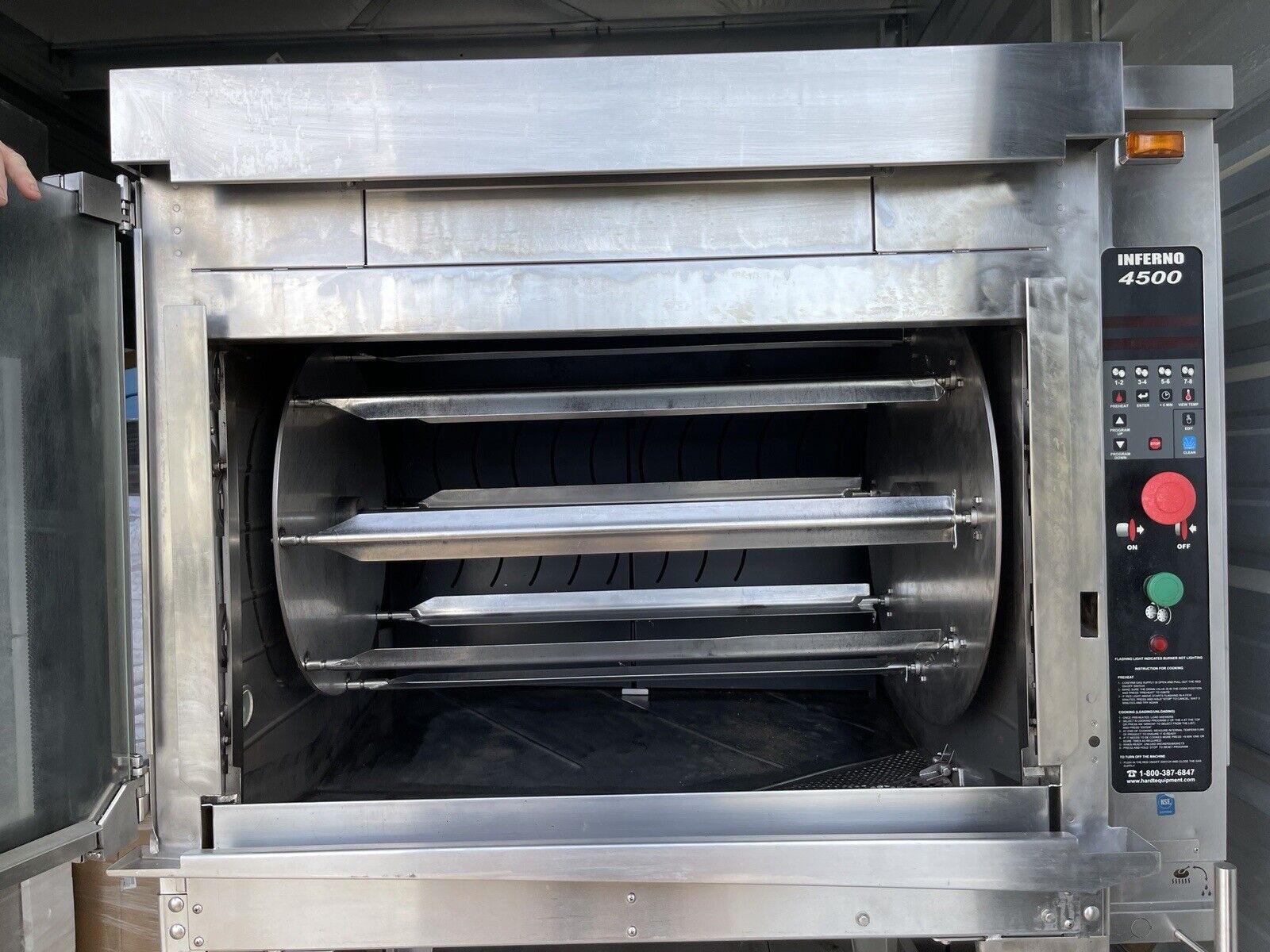

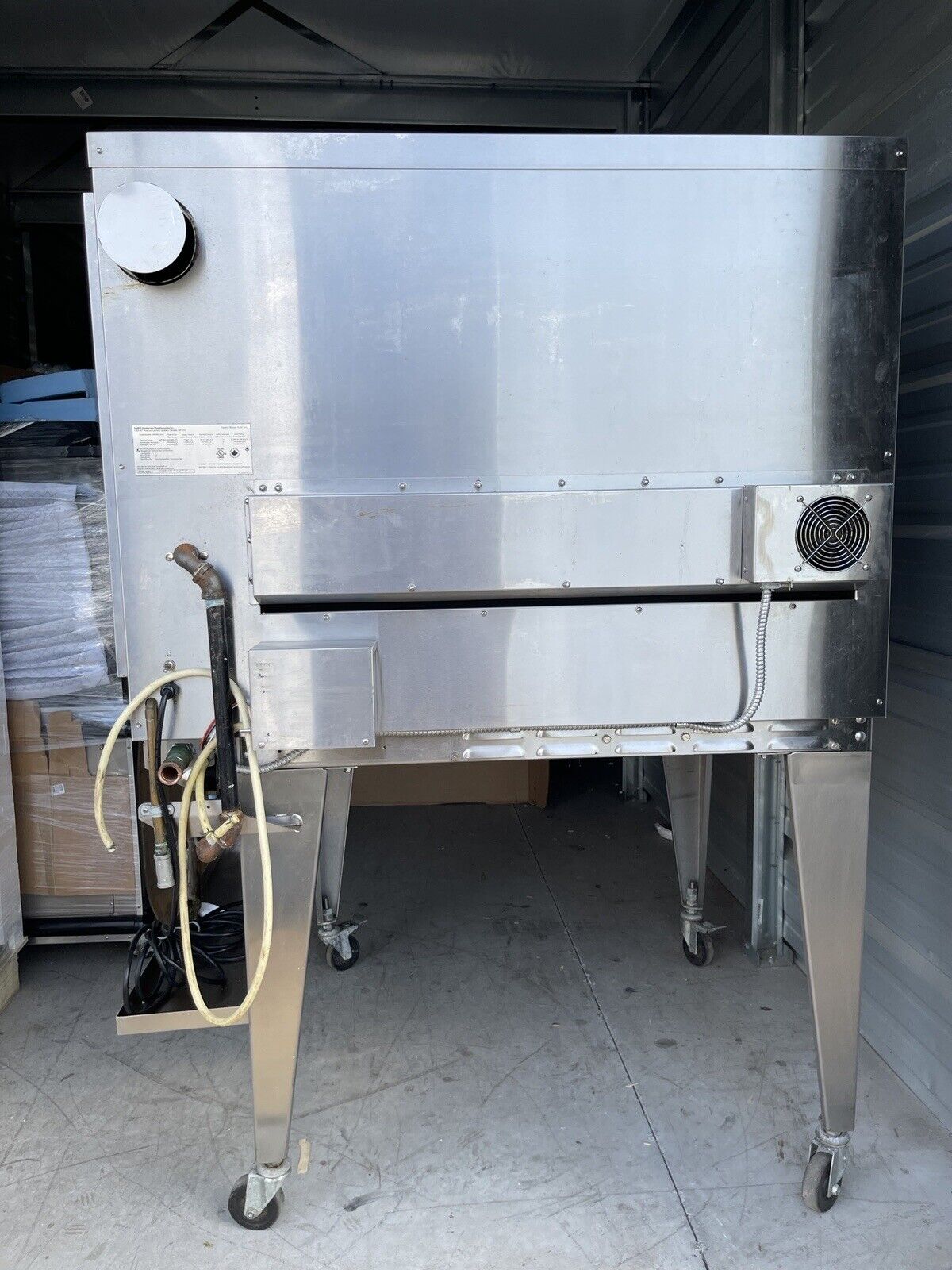

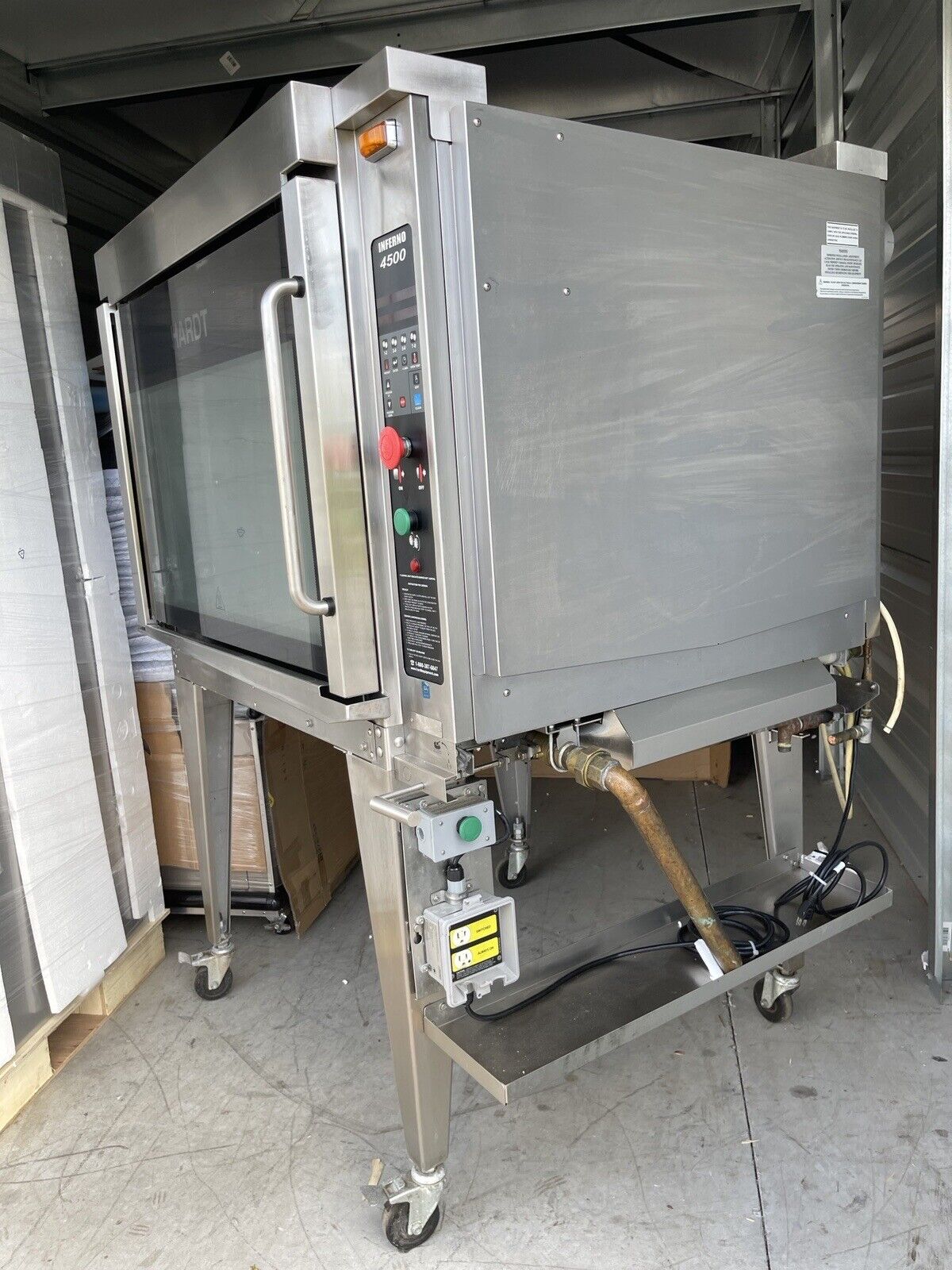

Hardt Inferno 4500 40 Chicken, 8 Spits, Nat Gas Self Cleaning Rotisserie.
Hardt’s self-cleaning gas rotisserie, the Inferno 4500 continues to allure customers with live dancing flames and makes it possible to capture and manage all the grease produced from the cooking process. Imagine the benefits of saving on the cost of separate grease capture systems, increasing safety at store level by not having to carry heavy buckets of grease and capitalizing on the revenue potential the collected grease represents.
ENERGYWISE
DOUBLE-DECK AUTOCLEAN WATER RESISTANT PATENTED DESIGN OPTION
PATENT
INFERNO 4500
Gas Rotisserie Oven
Grease Capture System
No water in the pan means that virtually all of the grease being produced is captured. This eliminates the need for separate grease treatment/capture systems.
Revenue Generation from Grease
Yellow grease from cooked poultry is a marketable commodity and more grease captured means more revenue potential.
Energy Efficient
Patented BlackBody technology consumes up to 60% less energy compared to other gas rotisseries of its capacity while producing superior cooking results.
Integrated AutoClean System
One-touch self-cleaning system has an integrated door locking feature to make end-of-day cleaning a safe and incredibly easy task.
Effective Impulse Sales Generator
Tall, dancing flames and the sight of product roasting through a large glass door will entice customers as never before. The patented BlackBody technology ensures even cooking and beautifully colored product.
Reliable and User-Friendly
Years of field experience and advanced R&D capabilities make Hardt’s equipment among the most reliable and easy to use on the market.
Safe Operation
• Burner and drive automatically stop when the rotisserie door is opened.
• Gas shuts off to the burner if it fails to light after several attempts.
• Dual-pane glass door makes it safe to touch.
• The grease-capture system is designed to simplify the collection and
transportation of grease and reduces the risk of grease spillage.
• The door is locked during AutoClean.
Minimal Maintenance Cost
Features such as the single-rotation drive and one simple burner reduce parts and labor costs for maintenance.
Increase Revenue Grease Collection
More Advantages Live Flame
Intuitive Control Panel
NO TRICKLE!
AUTOCLEAN WATER AND SOAP ONLY
FACILITY DRAIN
EFFLUENT 3-4 OZ /Bird
INFERNO 4500 Specifications
Capacity: Up to
40 Chickens
Construction
All stainless steel
Requirements:
X Position
Minimum clearance to combustibles: • Right side: 12” [305 mm]
• Left side: 2” [51 mm]
• Back: 4” [101 mm]
• Front: 44” [1118 mm]
A
Grease Drain Ø 1.5” copper
-3 in -[76] mm
125⁄8 in [322] mm
11-1/2 in [292 ] mm
B
Hot water inlet 1/2 NPT Male
2 7⁄8 [74]
447⁄8 [1141]
291⁄8 [739]
C
Electrical: NEMA 5-15 W 6’ REACH
41⁄8 [105]
441⁄2 [1130]
391⁄8 [992]
D
Gas 3/4 NPT Male
53⁄8 [138]
367⁄8 [935]
265⁄8 [678 ]
E
Drain/AutoClean connection 1.0” copper
41⁄8 [104]
431⁄8 [1096]
343⁄8 [873]
Specification & Options
Exhaust ventilation hood with grease filter Type 1 Class A.
Drain connection configured to drain to reservoir (as shown above). Other configurations available.
Available Accessories
Floor must be made of non-combustible material
Minimum supply pressure:
• 7” W.C. for natural gas • 11” W.C. for propane gas
Nominal Gas Consumption
65,500 - 70,500 BTU/H for natural gas
68,500 - 73,500 BTU/H for propane gas
Part #
Part Name
Description
2146
“V” skewers Unambiguous End
This is the “V” Skewer but with a modified end tip so the skewer can only be loaded one way, ensuring correct positioning of the product while cooking.
2735
Hanging Basket
Designed for products that should not rotate during cooking, the basket stays flat as the drive turns.
2608
Grease Reservoir
Available in different sizes to support single and double deck GC model rotisseries. Helps to store and simplify the transfer of grease without making a mess!
Contact us for the full list of available accessories.
Included Accessories
• 8 “V” skewers
• Height-adjustable legs
• Basic plumbing hardware
• Venting assembly
• Owner’s manual
Options
• Grease Reservoir
• Water & gas quick-disconnect hoses
• Casters
• Double-deck configuration
Hardt improves its products continuously and reserves the right to change specifications without notice.
We Ship worldwide. Shipping to a commercial address is $799. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
“FLAT RATE SHIPPING IS ONLY VALID FOR LOWER 48 CONTIGUOUS STATES TO A COMMERCIAL ADDRESS WITH A DOCK, FORKLIFT OR VIABLE WAY TO UNLOAD THE FREIGHT.
AK, HI, PR & INTERNATIONAL MUST MESSAGE FOR SHIPPING QUOTE.”
