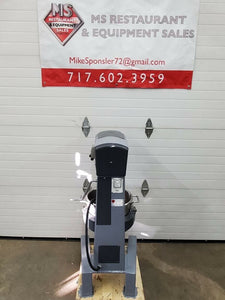

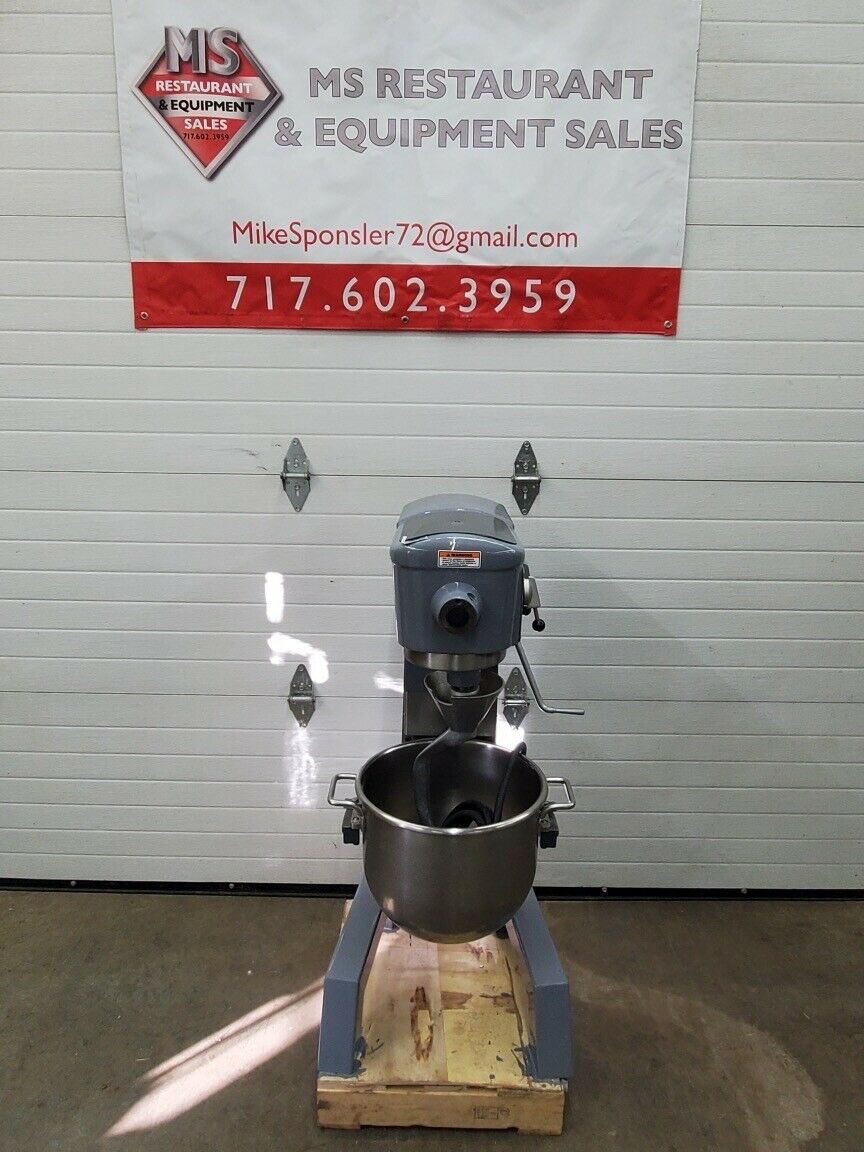

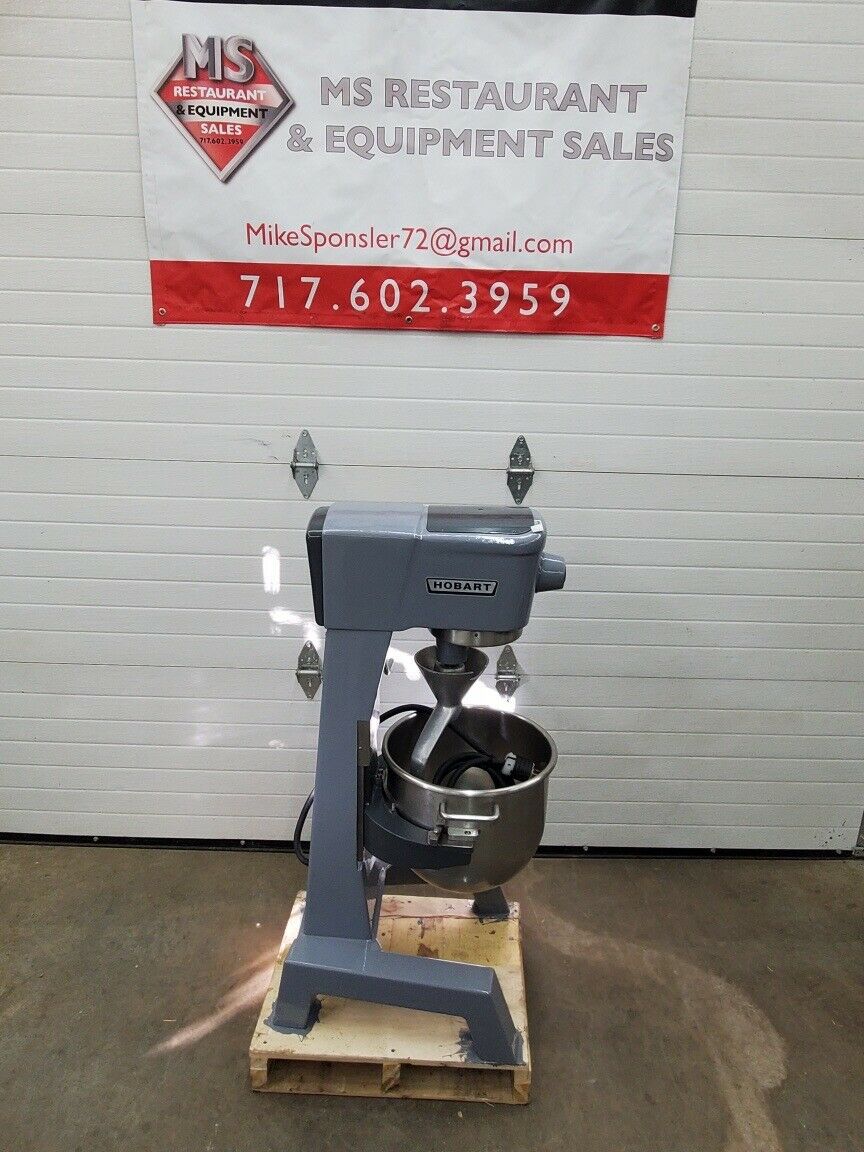

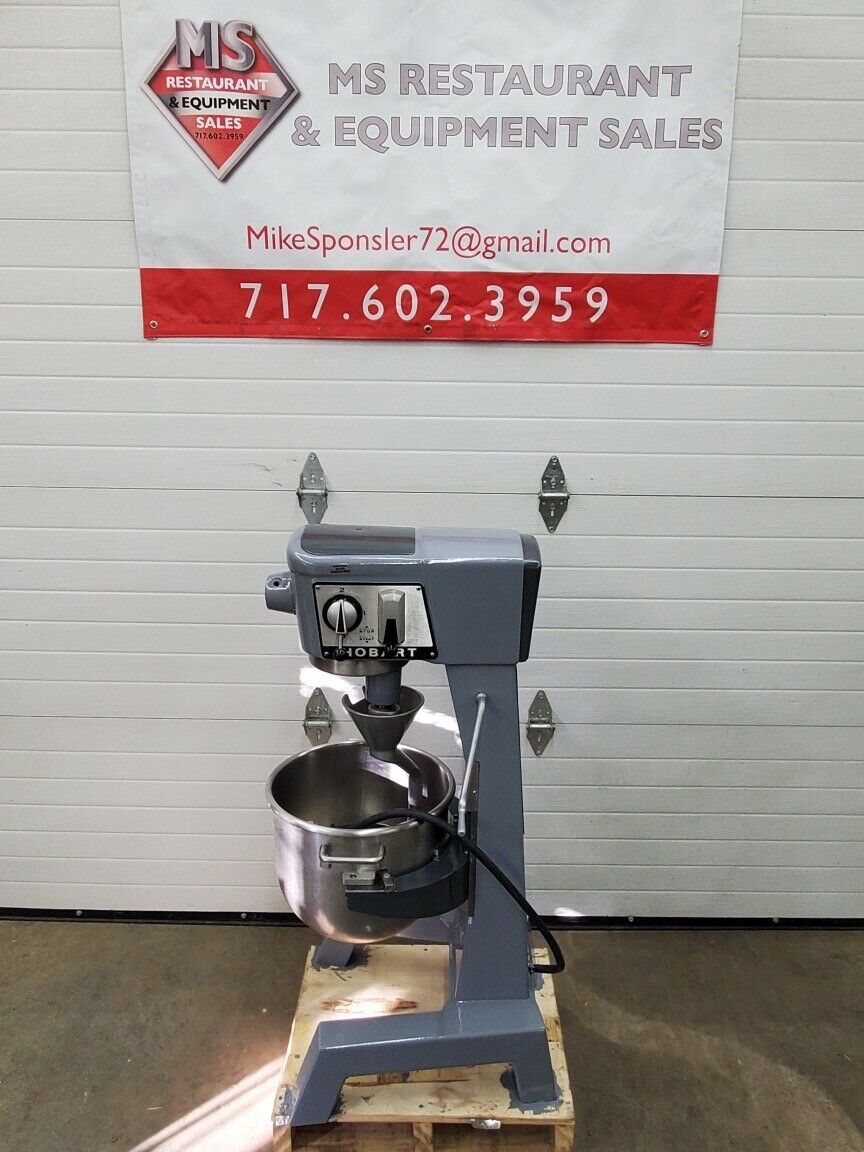

Hobart D 300, 30 Qt Mixer w/ Dough Hook Refurbished Tested Working!.
Hobart D 300, 30 Quart Mixer w/ Dough Hook fully Refurbished Tested & Working!
*DOUGH HOOK ONLY INCLUDED*
Hobart D-300 30qt Dough Mixer
STANDARD FEATURES
■ 3⁄4 H.P. Hobart Designed Fixed Speed Motor
■ Gear-Driven Transmission
■ 15 Minute Timer
■ Three Fixed Speeds
■ Open Base
■ Large, Easy-To-Reach Controls
■ #12 Taper Attachment Hub
■ Stainless Steel Bowl Guard
■ Manual Bowl Lift
■ 30-Quart Stainless Steel Bowl, “B” Flat Beater, “D” Wire Whip
ACCESSORIES
❑ Stainless Steel Bowl ❑ “B” Flat Beater
❑ “C” Wing Whip
❑ “D” Wire Whip
❑ “E” Dough Hook
❑ “ED” Dough Hook
❑ “P” Pastry Knife
❑ “I” Heavy Duty Wire Whip ❑ Bowl Splash Cover
❑ Bowl Scraper
❑ Bowl Truck
❑ 20 Quart Accessories
❑ Ingredient Chute
❑ 9" Vegetable Slicer
❑ Meat Chopper Attachment
MODELS
❑ D300 – ❑ D300C –
Item # ________________________________ Quantity _______________________________ C.S.I. Section 11400
30-Quart All Purpose Mixer 30-Quart All Purpose Mixer with Maximum Security Correctional Package (115/60/1, 200/60/1 and 200/60/3 only)
Specifications, Details and Dimensions on Inside and Back.
D300 MIXER
SOLUTIONS/BENEFITS
3⁄4 H.P. Hobart Designed Motor
Durability
■ Heavy-duty to meet the most demanding
operations
15-Minute Electric Timer
Convenience, Ease of Use, Consistency
■ Supports recipe mixing times
■ Simplifies operation
■ Provides accurate results and eliminates
overmixing
Three Fixed Speeds
Flexibility, Reliability, Consistency
■ For incorporating, blending, mixing ingredients
■ Supports consistent results and thorough
mixing
Bowl Guard
Protection
■ Safety interlock prevents operation when front
portion of guard is out of position
Gear-Driven Transmission
Durability, Reliability
■ Ensures consistent performance and minimum
downtime with positive drive under heavy loads
Hobart Attachments
Durability, Flexibility
■ Hobart manufactured accessories are designed
for long-term usage under heavy-duty
conditions
■ Large array of attachments provide multiple
uses for recipe and product processing
■ Secondary stepdown sizing available for
greater operational flexibility
D300 MIXER CAPACITY CHART
Recommended Maximum Capacities - dough capaci- ties based on 70°F. water and 12% flour moisture.
PRODUCT
AGITATORS SUITABLE FOR OPERATION
D300
CAPACITY OF BOWL (QTS. LIQUID)
30
Egg Whites
D
11⁄2 qts.
Mashed Potatoes
B& C
23 lbs.
Mayonnaise (Qts. of Oil)
B or C or D
12 qts.
Meringue (Qts. of Water)
D
1 qt.
Waffle or Hot Cake Batter
B
12 qts.
Whipped Cream
D or C
6 qts.
Cake, Angel Food (8-10 oz. cake)
C or I
22
Cake, Box or Slab
B or C
30 lbs.
Cake, Cup
B or C
30 lbs.
Cake, Layer
B or C
30 lbs.
Cake, Pound
B
30 lbs.
Cake, Short (Sponge)
C or I
23 lbs.
Cake, Sponge
C or I
18 lbs.
Cookies, Sugar
B
23 lbs.
Dough, Bread or Roll
(Lt.-Med.) 60% AR §
ED
45 lbs.■
Dough, Heavy Bread 55% AR §
ED
30 lbs.■
Dough Pie
B& P
27 lbs.
Dough, Thin Pizza 40% AR (max. mix time 5 min.) §‡
ED
14 lbs.■
Dough, Med. Pizza 50% AR §‡
ED
20 lbs.■
Dough, Thick Pizza 60% AR §‡
ED
40 lbs.■
Dough, Raised Donut 65% AR
ED
15 lbs.*
Dough, Whole Wheat 70% AR
ED
40 lbs.■
Eggs & Sugar for Sponge Cake
B & C or I
12 lbs.
Icing, Fondant
B
18 lbs.
Icing, Marshmallow
C or I
3 lbs.
Shortening & Sugar, Creamed
B
24 lbs.
Pasta, Basic Egg Noodle (max. mix time 5 min.)
ED
8 lbs.
NOTE: % AR (% Absorption Ratio) - Water weight divided by
flour weight. Capacity depends on moisture content of dough. Above capacities based on 12% flour moisture at 70°F water temperature.
1st Speed
2nd Speed
If high gluten flour is used, reduce above dough batch size by 10%.
2nd Speed should never be used on 50% AR or lower products.
USE OF ICE REQUIRES A 10% REDUCTION IN BATCH SIZE. 1 gallon of water weighs 8.33 lbs.
F-7540 – D300 Mixer
NOTE: Attachment hub should not be used while mixing.
D300 MIXER
SPECIFICATIONS:
MOTOR:
3⁄4 H.P., Hobart designed, permanently lubricated ball bearings, totally enclosed, internally ventilated. Single-phase is capacitor-start, induction-run type.
BOWL LIFT:
Hand lever, spring counterbalanced, lift locks automatically at top or bottom of travel. Bowl lift is adjustable, to assure proper clearance between bowl and beater.
FINISH:
Metallic Gray Hybrid Powder Coat finish.
STANDARD EQUIPMENT:
Consists of the mixer unit with one (1) 30-quart stainless steel bowl,
one (1) flat beater,
One (1) Dough Hook
ATTACHMENT HUB:
Comes with front-mounted Hobart standard #12 taper attachment hub for use with #12 size attachments ( not included)
NOTE: Use of attachment hub during mixing operation may result in a negative impact on performance and longevity of mixer.
ATTACHMENTS:
1 Dough Hook
Single Phase 115V
200V 6.3 Amps
230V 5.8 Amps
ELECTRICAL:
115/60/1, 200/60/1, 230/60/1, 200/60/3, and 460/60/3 – U L Listed. Also available in 220/50/1, 200/50/3 and 220/50/3 – not submitted for U L Listing.
CONTROLS:
Start-Stop push buttons protected by rubber caps. Magnetic-type contactor, actuated by push button station, and thermal overload, no-voltage protection, are standard on three-phase and on single phase.
A 15-minute electric timer is standard.
TRANSMISSION:
Gear-driven. Gears are constant mesh heat-treated alloy steel. Anti-friction ball or roller bearings.
A hardened steel worm and alloy bronze worm gear transmit power from motor to transmission. Grease lubricated.
SPEEDS:
Three positive speeds - Low, Intermediate, and High.
2.5 Amps
Agitator (RPM)
Attachment (RPM)
Low
94
54
Intermediate
174
100
High
317
183
F-7540 – D300 Mixer
D300 MIXER
701 S Ridge Avenue, Troy, OH 45374 1-888-4HOBART • www.hobartcorp.com
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS: 115/60/1, 200/60/1, 230/60/1, 200/60/3 and 460/60/3 –
U L Listed. Also available in 220/50/1, 200/50/3 and 220/50/3 – not submitted for UL Listing.
WEIGHT: 189 lbs. net; 336 lbs. domestic shipping.
DETAILS AND DIMENSIONS
WARRANTY: 30 days
We Ship worldwide. Shipping to a commercial address is $249. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
“FLAT RATE SHIPPING IS ONLY VALID FOR LOWER 48 CONTIGUOUS STATES TO A COMMERCIAL ADDRESS WITH A DOCK, FORKLIFT OR VIABLE WAY TO UNLOAD THE FREIGHT.
AK, HI, PR & INTERNATIONAL MUST MESSAGE FOR SHIPPING QUOTE.”
