ED
70 lbs.
Eggs & Sugar for Sponge Cake
B & C or I
24 lbs.
Icing, Fondant
B
36 lbs.
Icing, Marshmallow
C or I
5 lbs.
Shortening & Sugar, Creamed
B
48 lbs.
Pasta, Basic Egg Noodle (max. mix time 5 min.)
ED
30 lbs.
NOTE: % AR (% Absorption Ratio) - Water weight divided by flour weight. Capacity depends on moisture content of dough. Above capacities based on 12% flour moisture at 70°F water temperature.
■ 1st Speed
* 2nd Speed
† 3rd Speed
§ If high gluten flour is used, reduce above dough batch size
by 10%.
‡ 2nd Speed should never be used on 50% AR or lower
products.
USE OF ICE REQUIRES A 10% REDUCTION IN BATCH SIZE. 1 gallon of water weighs 8.33 lbs.

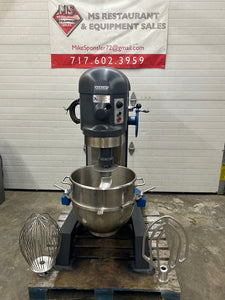

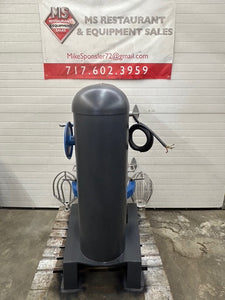

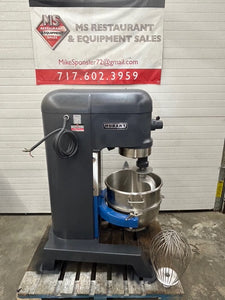

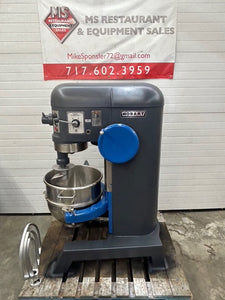

H600 Mixer
NOTE: Attachment hub should not be used while mixing.
H600 MIXER
SPECIFICATIONS
MOTOR:
2 H.P., Hobart designed, high torque ball bearing, ventilated within mixer enclosure. Single-phase is capacitor-start, induction-run type. Three-phase is polyphase squirrel cage, induction-run type.
BOWL LIFT:
Hand operated, self-locking in any position.
STANDARD EQUIPMENT:
Consists of the mixer unit with one (1) 60-quart stainless steel bowl, one (1) “B” flat beater, one (1) “D” wire whip, one (1) dough hook and (1) Bowl Dolly
ATTACHMENT HUB:
Comes with front-mounted Hobart standard #12 taper attachment hub for use with #12 size attachments.
NOTE: Use of attachment hub during mixing operation may result in a negative impact on performance and longevity of mixer.
ELECTRICAL:
3Phase
200V 10.9 Amps 230V 9.5 Amps
200-230V 7.4 Amps 400-460V 3.7 Amps
115/60/1, 200/60/1, 230/60/1, 200-230/60/3 and 400-460/60/3 – U L Listed. Also available in 220/50/1, 200-220/50/3 and 380-415/50/3 – not submitted for
U L Listing.
CONTROLS:
Magnetic contactor with automatic resetting bimetallic thermal overload protection internally mounted. “Start-Stop” push buttons protected by rubber caps. A 15-minute timer is standard.
TRANSMISSION:
Gear-driven. Gears are constant mesh heat-treated alloy steel. Anti-friction ball or roller bearings. A hardened steel worm and alloy bronze worm gear transmit power from motor to transmission. All shafts are mounted in ball or roller bearings. Circulating oil lubricant furnished to all gears. Visual type transmission oil level gauge.
SPEEDS:
Four positive speeds -
“A” 60 Qt Bowl
“B” Flat Beater
“D” Wire Whip
“E” Dough Hook
“F” Bowl Truck
Accessories Ingredient Chute
9" Vegetable Slicer
Meat Chopper Attachment
Hobart Bowl Scraper
Agitator (RPM)
Attachment (RPM)
1. First
71
79
2. Second
123
139
3. Third
206
231
4. Fourth
362
407
LISTED BY: Underwriters Laboratories, Inc. and NSF International. Certified by the Baking Industry Sanitation Standard Committee.
H600 Mixer
WEIGHT: 718 lbs. net; 800 lbs. domestic shipping.
