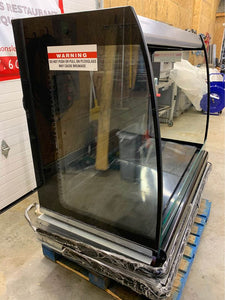

Hussmann Commercial Refrigerated Display Case
Model #IM-05-E5EC
Tested & Working
(missing shelves & bumpers)
$199 Shipping***
Description:
Condition: NEW - Scratch & Dent. All Glass & Plexiglass in tact. Missing shelves
Model # IM-05-E5EC
Serial # P000194556
Manufactured JUNE 2017
MEDIUM TEMP SELF-SERVICE MULTI-DECK HUSSMANN - ISLA - IM-05-(E or C)-R (CHINO) REVISION DATE 02/26/18 REFRIGERATION DATA: CASE LENGTHS CASE USAGE CAPACITY *** (BTU/HR/FT) TEMPERATURE (oF) VELOCITY (FT/MIN) RATING CONDITION EVAPORATOR DISCHARGE AIR ** (°F) NSF 7 AHRI 1200 NSF 7 AHRI 1200 NSF 7 NSF 7 3',4',5',6', 8',10',12' DELI / DAIRY 1110 905 25 26 30~32 225~250 3',4',5',6', 8',10',12' MEAT 1430 905 21 26 28~30 225~250 CASE LENGTHS EST. REFG. CHRG. 404A (LBS) 20°F GLYCOL 6° RISE GPM PSI 3' 0.7 1.2 1.1 4' 1.0 1.6 2.0 5' 1.2 2.0 3.1 6' 1.4 2.4 1.8 8' 2.0 3.1 2.9 10' 2.5 3.8 4.2 12' 2.9 4.5 3.9 **FRONT DISCHARGE AIR MEASURED INSIDE AIR CURTAIN HONEYCOMB ***REFRIGERATION NOTES: 1) BTU'S INCLUDE CANOPY LIGHTS ONLY. ADD 10 BTUS/SHELF/FT FOR EACH SHELF (LIGHT) 2) MEAT CASE SPECS ARE FOR PACKAGED MEAT. 3) AHRI 1200 RATING POINT FOR ENERGY CONSUMPTION COMPARISON ONLY. 4) USE DEW POINT FOR HIGH GLIDE REFRIGERANTS. CARE SHOULD BE TAKEN TO USE THE DEW POINT IN P/T TABLES FOR MEASURING AND ADJUSTING SUPERHEAT. ADJUST EVAPORATOR PRESSURE AS NEEDED TO MAINTAIN THE DISCHARGE AIR TEMPERATURE SHOWN. 5) RATING CONDITION IS NSF TYPE I, 75°F/55% RH REFRIGERATION DATA CONTINUED: ELEC. THERMOSTAT / AIR SENSOR SETTINGS DEFROST TYPE TIME (MIN) DEFROST FREQUENCY (#/DAY) TERM. TEMP (°F) COIL ONLY DRIP TIME DEFROST WATER (LBS/DAY/FT) USAGE CUT IN (oF) CUT OUT (oF) DELI / DAIRY 33 30 OFF TIME 20 6 52 N/A 7.5 MEAT 31 28 OFF TIME 20 6 52 N/A 9 END PANEL WIDTH KEY # OF END TOTAL ADDED END PNL LENGTH (IN.) 1 1.125 1.125 2 1.125 2.25 ELECTRICAL DATA: STANDARD FANS, HEATERS, LED LIGHTS (115 VOLT) OPTIONAL HIGH OUTPUT LED LIGHTS (115 VOLT) CASE LENGTH EVAPORATOR FANS CANOPY LIGHTS LED LED SHELF LIGHTS MAX. LED LOAD (W/ ALL OPTIONS) ANTI-SWEAT HEATERS (ON FAN CIRCUIT) CONVENIENCE OUTLETS (OPTIONAL) # OF EVAP FANS BLADE DIA. (IN.) BLADE PITCH (°) AMPS WATTS AMPS WATTS AMPS WATTS AMPS WATTS AMPS WATTS # OUTLETS VOLTS AMPS 3' 1 8 25 0.3 8 0.17 19 0.27 31 0.44 50 N/A N/A 1 115 15 4' 1 8 25 0.3 8 0.23 27 0.36 41 0.59 68 N/A N/A 1 115 15 5' 1 8 30 0.3 8 0.30 34 0.45 52 0.75 86 N/A N/A 1 115 15 6' 2 8 25 0.6 16 0.34 39 0.54 62 0.87 100 N/A N/A 1 115 15 8' 2 8 25 0.6 16 0.47 54 0.72 82 1.18 136 N/A N/A 1 115 15 10' 2 8 30 0.6 16 0.59 68 0.90 104 1.49 172 N/A N/A 1 115 15 12' 3 8 25 0.9 24 0.70 81 1.07 124 1.78 204 N/A N/A 2 115 30 CASE LENGTH CANOPY LIGHTS H.O. LED SHELF LIGHTS H.O. LED MAX. H.O. LED LOAD AMPS WATTS AMPS WATTS AMPS WATTS 3' 0.21 24 0.45 52 0.66 76 4' 0.28 32 0.53 61 0.81 93 5' N/A N/A N/A N/A N/A N/A 6' 0.41 47 0.90 104 1.31 151 8' 0.56 64 1.06 122 1.61 186 10' N/A N/A N/A N/A N/A N/A 12' 0.83 96 1.59 183 2.42 278 CASE ENERGY USAGE DATA: CASE LENGTH / WEDGES 3',4',5',6',8',10',12' TDA/V (ft2/ft) (ft3 wedges) 3.4 MAX ACTUAL CDEC (KWh/day/ft) CDEC (KWh/day wedges) (KWh/Day/ft) ALLOWABLE 2.23 2.51 Dimensions: 58" Tall x 38 5/8" D x 5" wide with bumpers ( 68" wide)
