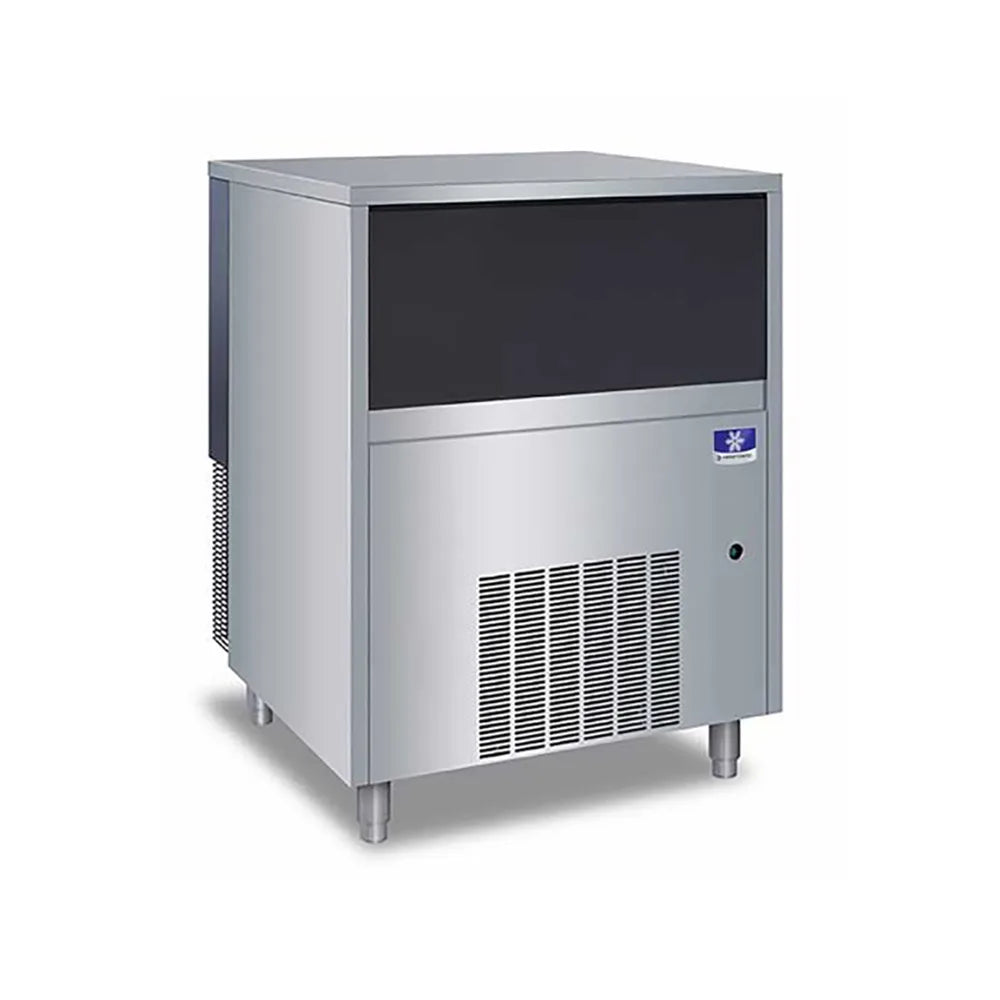

Manitowoc Ice UNP0300A Description
Ideal for restaurants and fast food businesses, the Manitowoc Ice UNP0300A ice maker with bin produces nugget-style ice—bite-sized, chewable ice that cools beverages quickly without diluting them. Ice ranges in shape from 3⁄8 of an inch to 1⁄2 of an inch in width and length with an 85 percent ice-to-water ratio. If air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, this unit can produce 330 pounds of ice in 24 hours. For smooth operation, the low-maintenance stainless steel bearings have a high-load capacity.
The Manitowoc Ice UNP0300A ice machine's self-contained condenser streamlines installation, while its air-cooled design is ideal for rooms that have ambient temperatures below 80 degrees Fahrenheit. Ice is released into the unit's storage bin, which is located beneath the unit and has a 50-pound capacity. With its slide-up, accessible door, the bin grants users direct access to stored ice. The unit's exterior is heavy-duty stainless steel to resist corrosion and rust throughout high-volume use. Because it measures 29.06 inches wide by 27.17 inches deep by 39.52 inches high, overall, it can be stored beneath a bar-height counter—maximizing storage space for kitchens with limited space.
- Daily ice production: 325 lbs.
- AHRI-certified ice production: 286 lbs.
- Produces bite-size nugget-style ice
- Ice measures between 3⁄8 and 1⁄2 in. (length and width)
- 85 percent ice-to-water ratio
- Air cooled
- Self-contained condensers
- R290A hydrocarbon refrigerant
- Low-maintenance, high-load stainless steel bearings
- Heavy-duty stainless steel cabinet exterior
- Undercounter unit for bar-height counters
- Operating ambient temperature range: 50-110 degrees F
- Operating water temperature range: 37-90 degrees F
- Ice maker water pressure: 14-80 PSI
- Minimum installation clearance for sides: 2 in.
- Minimum installation clearance for back: 5 in.
- 5,121-BTU heat transfer average per hour
- 50-lb. capacity
- AHRI-certified interior capacity: 2.04 cu. ft.
- Slide-up, easy-access door
- Legs can be adjusted from 4.5-6 in.
- Comes with ice scoop
- 29.06 in. W x 27.17 in. D x 39.52 in. H
- 7.5 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
- 3⁄8-in. NPT ice-making water inlet
- 1⁄2-in. NPT ice-making water outlet
Excellent for bars, lounges, and small restaurants needing access to fresh ice without sacrificing counter or floor space.
*Image may not depict product color, inclusions or accessories.
Cord Attached
This product includes a cord and plug
Natural Refrigerant
Product made with Hydrocarbon Refrigerants
Nugget Ice
This unit produces nugget ice perfect for soft drinks, blended drinks, filling coolers, and dispensing.
Air Cooled
Also called self-contained, this compressor type uses air for cooling
NEMA 5-15P
This product comes with a NEMA 5-15P plug
ENERGY STAR
This product meets energy efficiency standards set by ENERGY STAR
CE
Assessed by the manufacturer & deemed to meet EU safety, health, & environmental protection standards
C ETL US Listed
Tested by Intertek & found compliant with applicable U.S. & Canadian safety standards
ETL-Sanitation
Meets applicable ANSI/NSF sanitation standards in testing by Intertek
From The Manufacturer
Ice Maker with Bin, nugget-style, air-cooled, self-contained condenser, 29-1/16"W x 27-11/64"D x 39-33/64"H, production capacity up to 330 lb/24 hours at 70°/50° (275 lb AHRI certified at 90°/70°), 50 lb bin storage capacity, bite size nugget, high-load stainless steel bearings, stainless steel finish, 6" bin legs, 1/2 HP, ETL-Sanitation, cETLus
Manitowoc Ice UNP0300A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 330 |
| Bin Capacity (lb) | 50 |
| Compressor Type | Air Cooled |
| Depth (in) | 27.17 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39.52 |
| Hertz | 60 |
| Ice Type | Nugget |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 29.06 |
| Weight | 224.00 |
