Manitowoc IY606A-261 208v Cube Ice, Air Cool 555#/day, QPA310 Cube Ice Dispenser.
Manitowoc IY606A-261 208v cube ice, air cool 555#\day & QPA310 cube Ice Disp. 180# Capacity
Hotel ice dispenser
Manitowoc IY0606A-261
Mfg. Description
DESCRIPTION
• Monitors, collects, and records information for diagnosis and maintenance.
• Built-in asset management offers alerts, schedules ice production, and monitors energy and water consumption.
• Onboard diagnostic data display and remote monitoring capability result in more accurate and efficient service calls.
• Internal memory stores operational history.
• “Safe Mode” helps keep ice machine running without a total shutdown or interruption of ice production, allowing time for service to be called.
• IceConnect™ USB and RS485 communication ports transmit ice production, energy usage, water usage, and service data allowing for asset management from across the room or the country.
• LuminIce® Growth Inhibitor is an available accessory that creates “active air” by recirculating the air inside the ice machine foodzone over a UV light. This “active air” passes over all exposed foodzone components to inhibit the growth of yeast, bacteria, and other common micro-organisms.
• To minimize the frequency of cleaning, Alpha San® antimicrobial protection is molded into select foodzone plastic components including the water distribution tube, evaporator frame, and ice and water probes.
• Manitowoc’s revolutionary acoustical ice-sensing technology accurately measures ice thickness for consistent cube formation and operates in challenging water conditions.
• The optional available LuminIce®- controlled foodzone helps ensure cleaner, better tasting ice. Easy to use, no chemicals to add or maintain.
• An ice clarity feature adjusts the water usage to improve ice quality in hard water locations.
• TDS (total dissolved units) sensing probe constantly monitors the incoming water quality.
• Customizable ice making schedule allows for fluctuations in daily levels of production, saving energy by making only the amount of ice you need, when you need it. Ice production levels can be scheduled by day-of-week or time-of-day to take advantage of lower nighttime energy rates.
• Patented Air-assist Harvest Technology speeds the ice harvest cycle by forcing air between the evaporator and the ice sheet. Faster ice cycles lower overall energy use for the same amount of ice produced.
• Quick, reliable diagnosis of an ice machine is essential to keep operations running smoothly. Manitowoc’s Indigo gathers information 24 hours a day. This collection of real-time data enables quick and accurate diagnosis of any problem.
• Display service data for faster and more accurate service calls. This recorded data can also be downloaded via USB port for detailed analysis by a service technician.
• Firmware functional upgrades are easily made through the control board USB port.
• Installation date is automatically recorded in memory after the unit is up and running for 24 hours. Recorded data helps the user or service technician quickly check warranty status without having to contact the factory.
• Service diagnostic programs self-check the control board and other components to prevent unnecessary part replacement.
• Head only, suggested bin B400, B570 or B700
• Overall dimension: 30"W x 24 1/2"D x 21 1/2"H
• Voltage: 208-230/1/60
• Non stackable
• Air cooled and remote cooled models are ENERGY STAR® qualified
PRODUCT DETAILS
Mfg. Manitowoc
Model Number: IY0606A
Depth (In.): 24 1/2
Width (In.): 30
Height (In.): 21 1/2
Shipping Weight (Lbs.): 208
Cube Size:
Half Dice
Energy Star:
Yes
Ice Production (Lbs/Day):
555
Maximum Fuse / Breaker Size (Amps):15
MCA (Amps): 11.1
Type Condenser Cooling: Air
Voltage: 208-230/1/60
Prop65:
WARNING: Cancer and Reproductive Harm- For more information go to www.P65Warnings.ca.gov

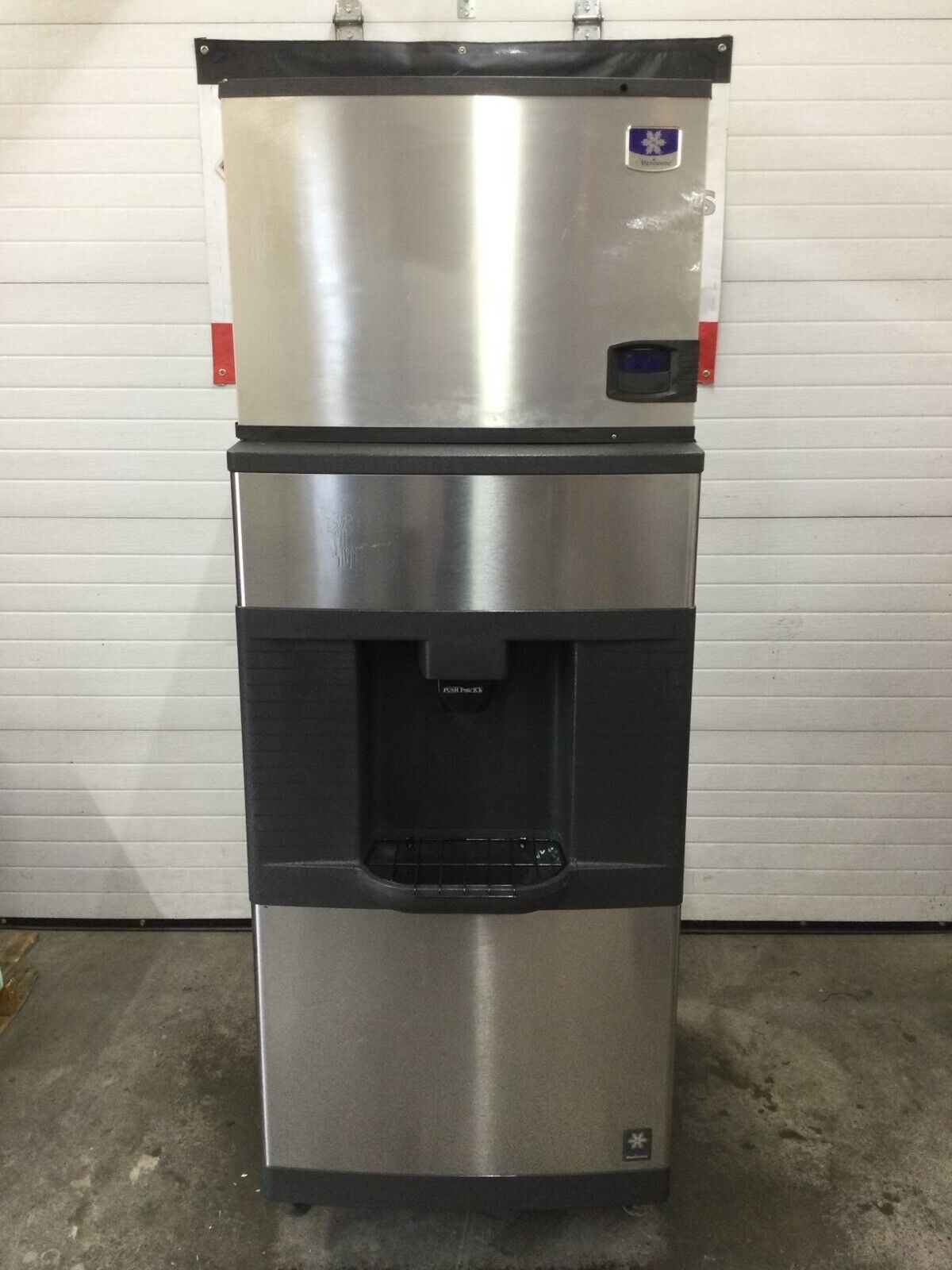

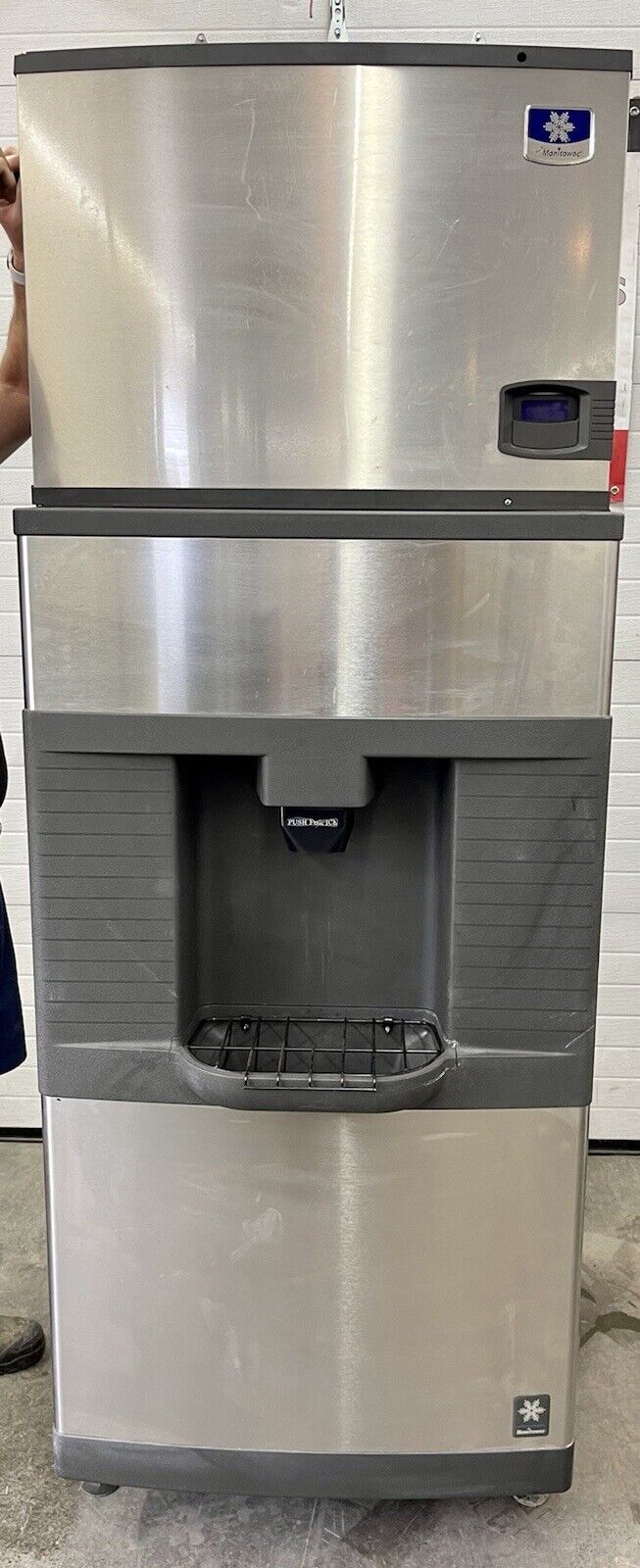

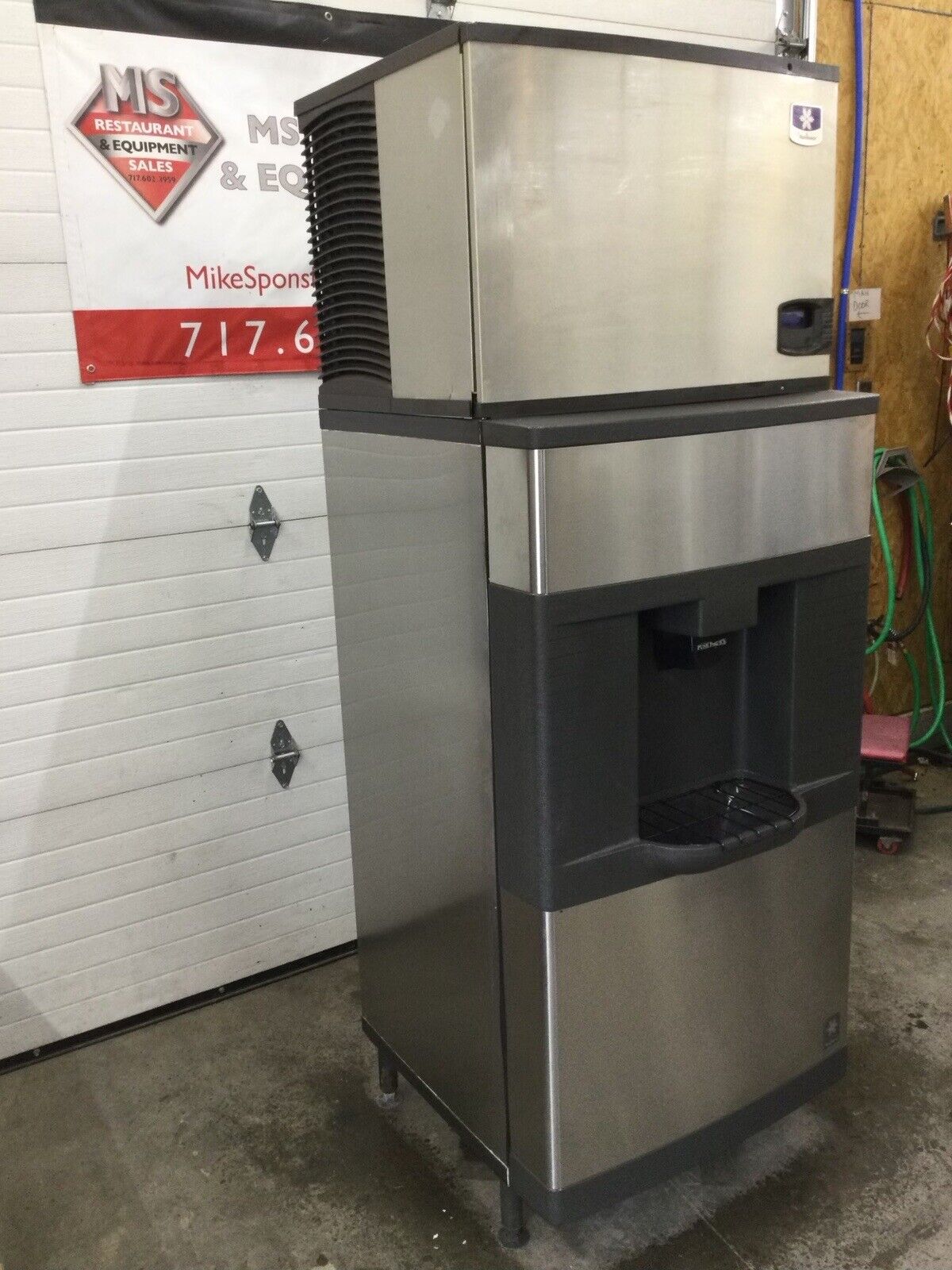

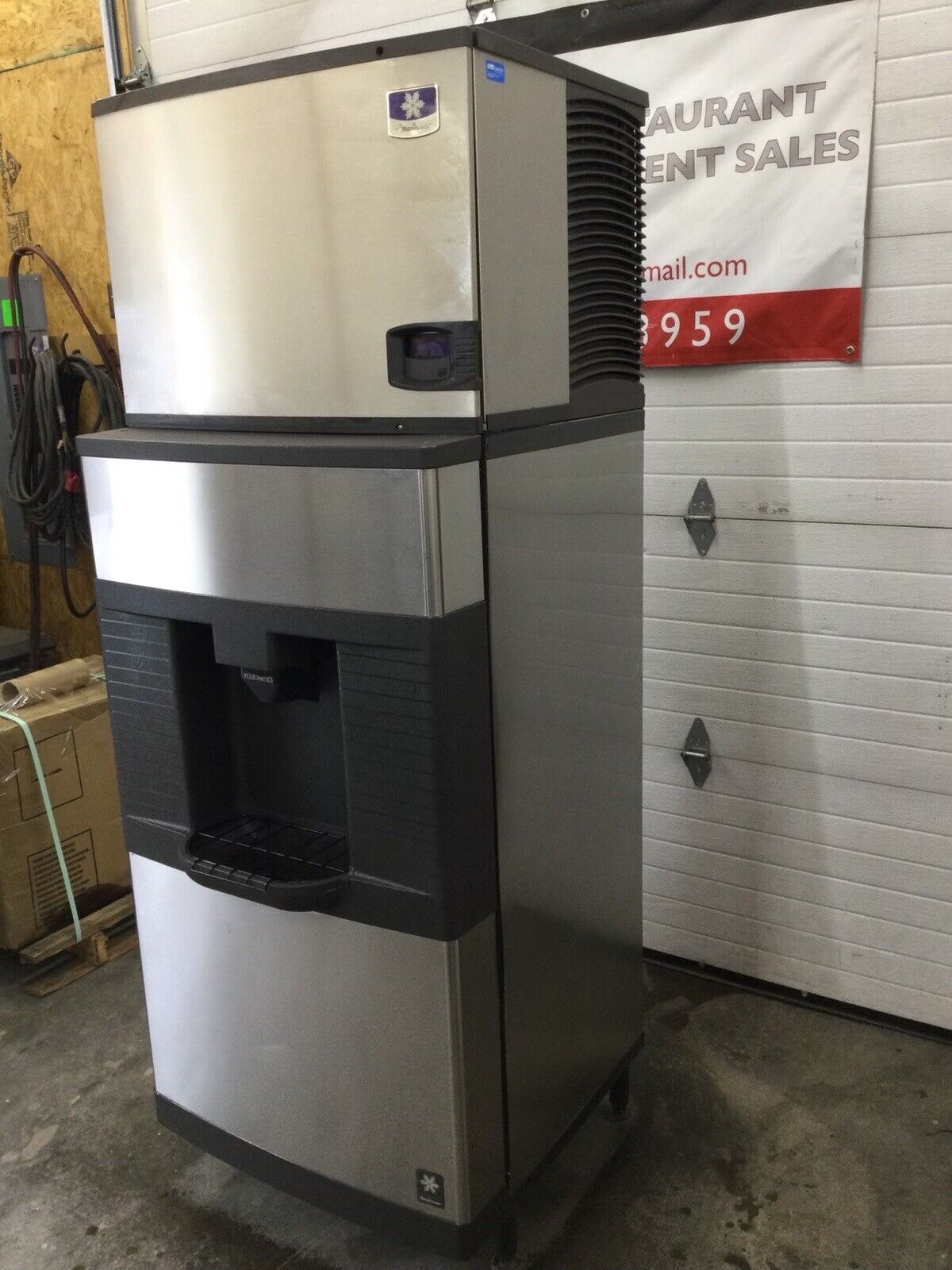

Custom Manitowoc combination Ice maker & hotel ice dispenser
The Manitowoc QPA310 Ice Dispenser is designed for ice bucket filling in hotels, motels, and resorts. It has a patented "push for Ice" rocking chute dispense mechanism which prevents any access to the ice and cross contamination.
• 180 lbs. (82 kgs.) ice storage capacity. Accepts 22" (55.88 cm) or 30" (76.20 cm) wide ice machines
• Only 30" wide, 32” deep, and 82” high
• Stainless steel exterior with gray accents and rounded front blends with any decor
• Patented “Push For Ice” rocking chute dispense mechanism reduces in-flight ice and ice spillage with quick on/off activation
• Efficient built-in agitator assures 100% dispensing.
• Polyethylene bin liner and polyurethane insulation keep ice longer
CAPACITY : 180 lbs
TYPE : Ice Bin
MODEL : QPA310
DIMENSIONS :
W30" x D32" x H60.5"
WEIGHT :
160 lbs
