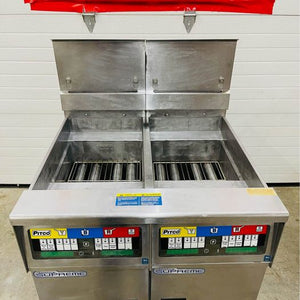

Pitco Model PH-SSHF55 Double
Solstice Supreme Nat Gas Fryer with Filtration Clean Tested & Working!
Pitco PH-SSHF55
is for Energy Saving High Production frying. It utilizes Solstice Supreme Burner Technology which provides very dependable atmospheric heat transfer and fuel saving Energy Star TM* performance without the need for complex power blowers. It is equipped with a space saving under the fryer filter system. This frying system is ideal for cooking Bone-in wings, Boneless wings, Traditional wings, Wedge Fries, Pies, Cheese sticks and other standard YUM freezer to fryer products.
3/16” (.48 cm) door hinges
3/16" (79.2 cm)
Floor min.
6" (15.25 cm)
Combustible material Sides min. Rear min.
6" (15.2cm) 6" (15.2cm)
CLEARANCES
Non-Combustible material Sides min. Rear min.
0" 0"
Fryer Flue Area
Do not block / restrict flue gases from flowing into hood or install vent hood drains over the flue.
3/4 INCH NPT REAR TEE
G (CE3/4INCHBSPADAPTOR
ADDS 3 [7.6] TO CONNECTION)
6 FOOT (183 CM) POWER
P CORD(NEMA5-15PLUG115VAC
UNITS ONLY)
D 1-1/4 INCH (3.2CM) NPT FULL PORT DRAIN VALVE
P
15 5/8 [39.7]
12345 67890
IN [CM]
B oI nn e Wings
BOo un t e Wings
T r a d Wings
ON/OFF
G
4 1/4 [10.8]
T a t e r s
P i e s
C h e e s e Stick
Cook Depth
3-1/4 - 5in (8.3 - 12.7cm)
Oil Capacity
40-50Lbs (18-23 kg)
Gas Input Rate / Hr
80,000BTUs (23 kW) (84 MJ)
Burner Pressure Nat
4"W.C.
(10 mbars / 1 kPa)
12 3/4 [32.4] NOM.
10 [25.4]
11 27/32 [30.1]
Model PH-SSHF55 Solstice Supreme Gas Open Fryer
2X 10 INCH (25.4 CM) ADJUSTABLE LEGS FRONT 2X 10 INCH (25.4 CM) RIGID CASTERS REAR
INDIVIDUAL FRYER SPECIFICATIONS
FILTER SPECIFICATIONS
FRYER SYSTEM SHIPPING INFORMATION (Approximate)
Shipping Crate Size H x W x L
59x23x44in (149.9x58.4x111.8cm)
INSTALLATION INFORMATION
GAS SYSTEM REQUIREMENTS Natural Gas
ELECTRIC SYSTEM REQUIREMENTS
Nat. Gas
115V 60Hz
6.1
208 / 220-240V 50-60 hz
4.1
80,000 BTUs
$199 SHIPPING
We Ship worldwide. Shipping to a commercial address is $199. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
