Pitco PH-SEF184-S & Giles FSH-2-PH COMBO FRYER w/ OIL FILTRATION TESTED WORKING. Condition is "Seller refurbished".
Quantity 3 available
CUSTOM BUNDLE AVAILABLE

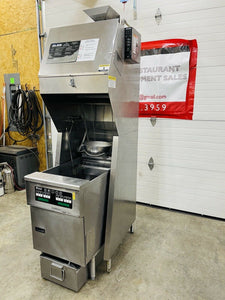

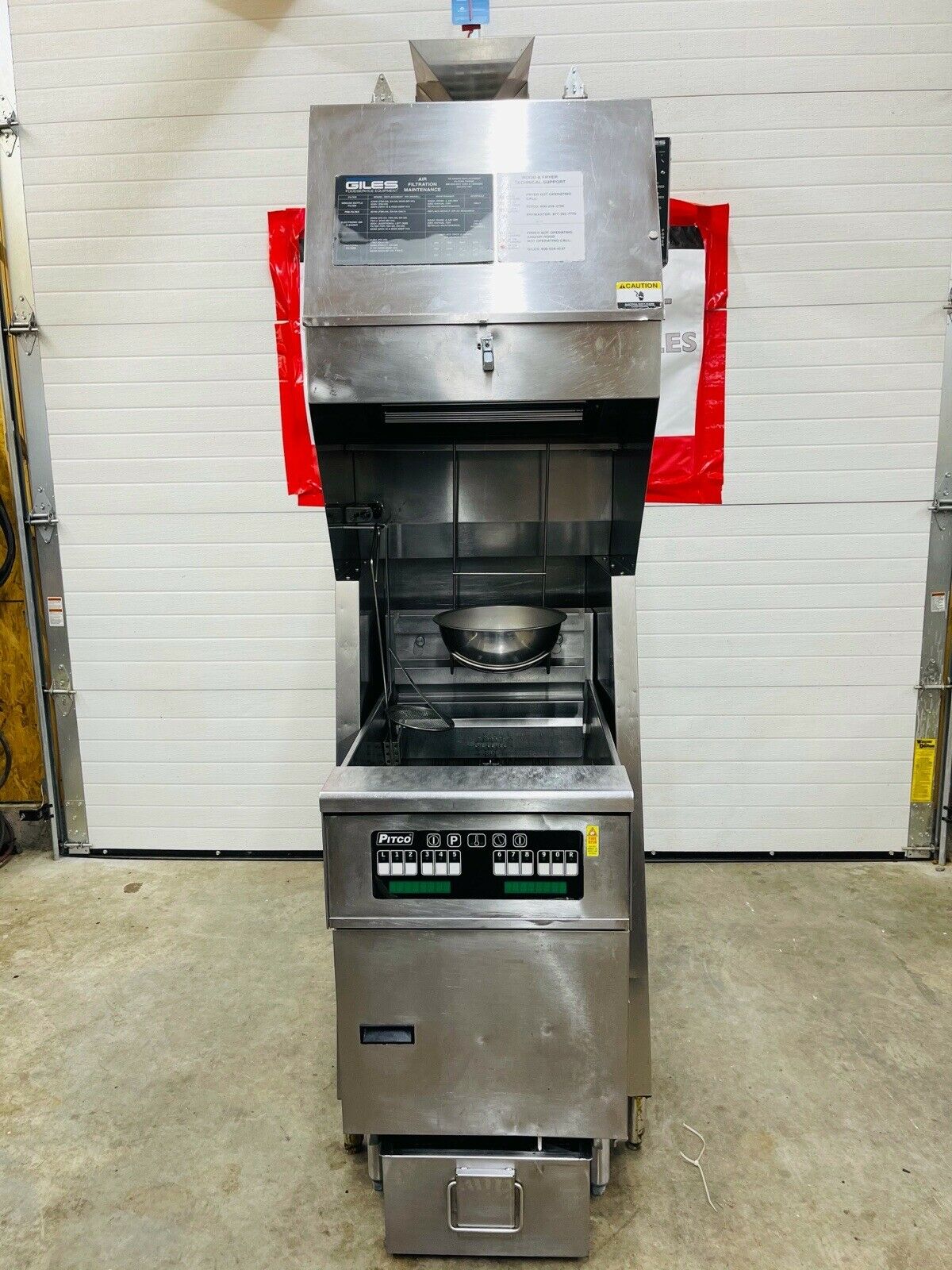

Pitco PH-SEF184-S & Giles FSH-2-PH
COMBO FRYER w/ VENTLESS HOOD & ANSUL SYS. 3PHASE
TESTED & WORKING!

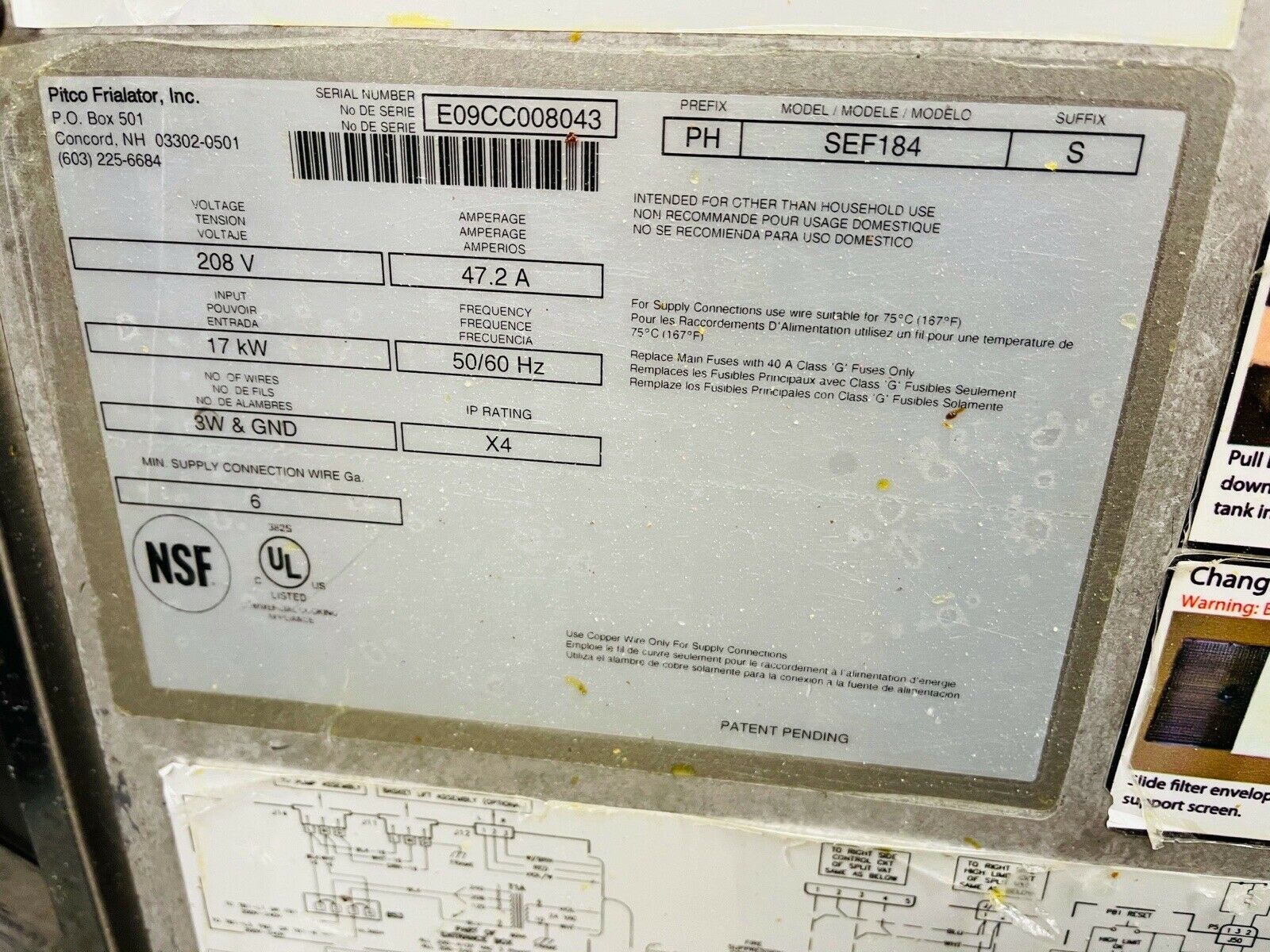

Pitco PH-SEF184-S
STANDARD FRYER FEATURES

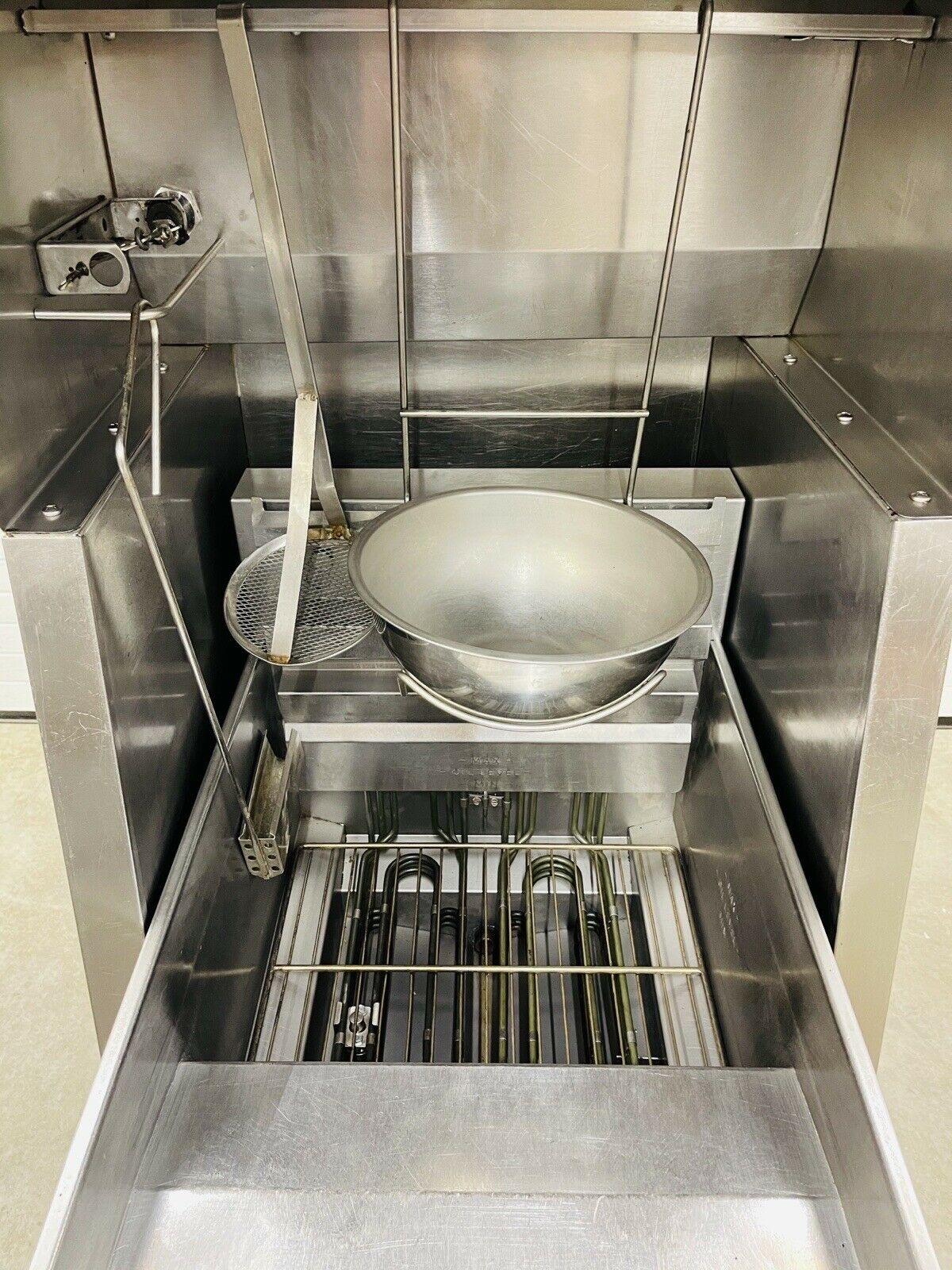

Fry pot constructed of stainless steel
Fixed heating elements
1 1⁄4” (3.2 cm) Full port drain valve
Cabinet-stainless steel sides, front, splash back
WingStreet 4 Color cooking computer
Mercury-free heating contactors
High temperature limit switch
Drain valve interlock
Heavy duty 3/16” (.48 cm) door hinges
10” (25.4 cm) fixed casters rear and front legs
ACCESSORY Available but not included
1 - Fry pot drain clean out rod
1 - Fry pot cleaning brush
1 - Fry pot crumb scoop
1 - Filter shovel scoop
1 - YUM 14” x 22” (35.6 x 55.9 cm) filter paper
1 - 6’ Power Cord (208V & 240V 3 Phase only)
1 - Element rack
1 - Removable basket hanger
APPLICATION:
The PH-SEF184 fryer design offers higher production with increased efficiency and a space saving under the fryer filter system which is ideal for cooking Bone-in wings, Boneless wings, Traditional wings, Wedge Fries, Pies, Cheese sticks and other standard YUM freezer to fryer products.
SHORT FORM DESCRIPTION:
Fryer, Electric Open Fryer with Filtration PH-SEF184 ( voltage, phase), Line up SE184, filter below with WingStreet 4 Color cooking computer, fixed heating elements, drain valve interlock, mercury-free heating contactors, SS sides & front, casters. Accessories includes: (1) clean out rod, (1) brush, (1) crumb scoop, (1) filter shovel scoop, (1) YUM 14” x 22” (35.6 x 55.9 cm) filter paper envelope starter pack, (1) 6’ Power Cord (208V & 240V 3 Phase only), (1) element rack, (1) removable basket hanger, (4) triple baskets. Performance and installation check by a qualified service representative.

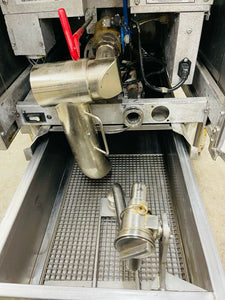

STANDARD FILTER FEATURES:
Filter pump thermally and overload protected
Rear oil return for bottom cleaning
Extra Large 3” (7.6 cm) curved drain spout virtually
eliminates splashing and swivels for oil disposal.
Filter pan is stainless steel with rear wheels for easy
movement during cleaning.
Connection to fryer is self aligning for hands free
operation. Easy two step filtering.
Filter pan lid. Self storing, out of the way.

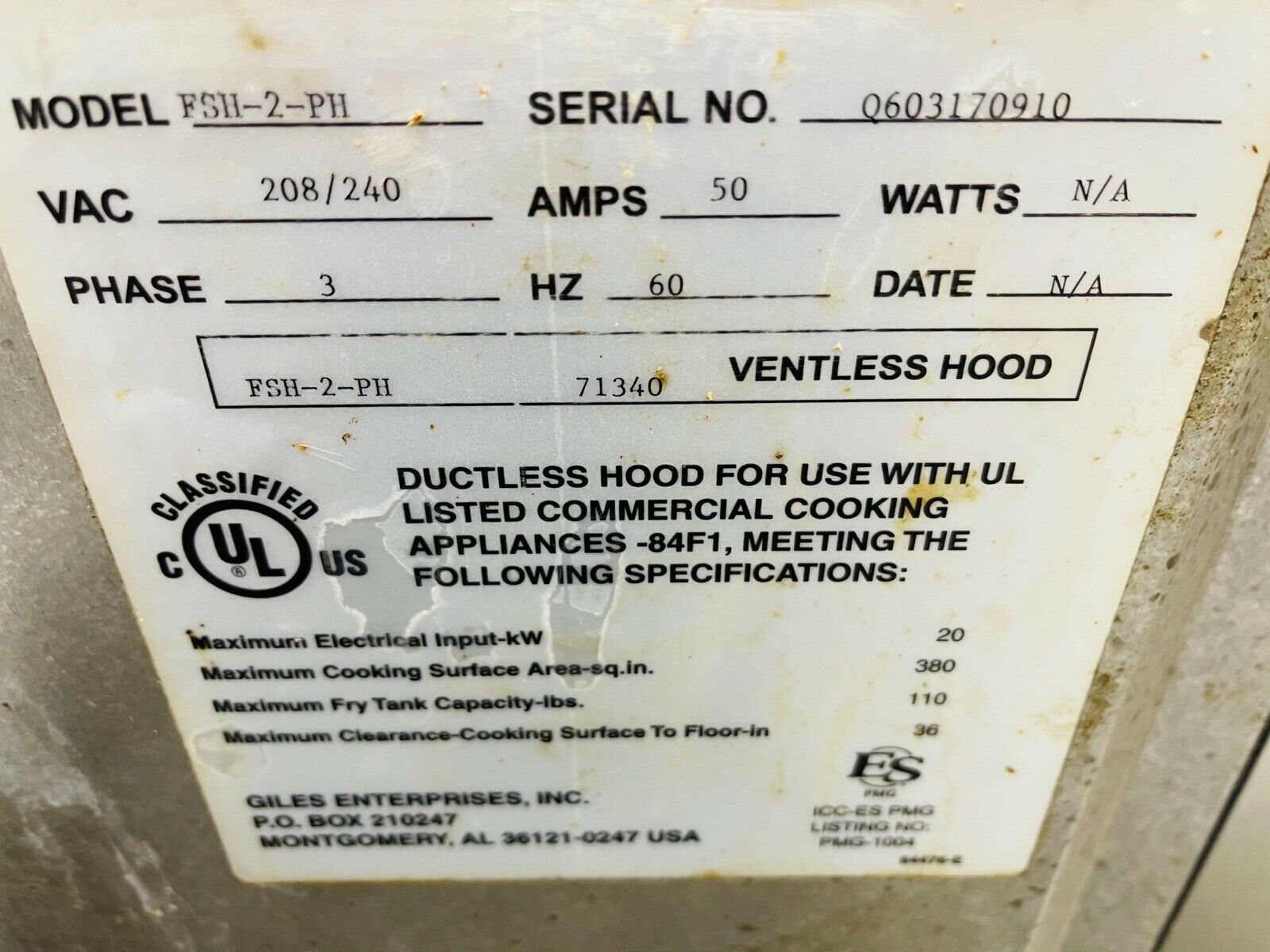

Giles FSH-2-PH
without the need for expensive modifications or the hassles of installing, or expanding existing, conventional ventilation hoods.
Model FSH-2
• No venting outside needed. Generally, can be used here traditional ventilation hood solutions are prohibited or too costly.
Design Features
❸❷
• Hood features a factory installed, self-contained, Ansul® R102 Wet Chemical Fire Suppression System, consisting of Automan release mechanism, 1-1/2 gallon tank, piping, appliance/plenum nozzles, detector link brackets and cable conduit. Customer shall provide for final field installation, set-up, charging and commissioning ... work must be performed by an authorized Ansul® Distributor/Dealer and is not included with hood purchase.

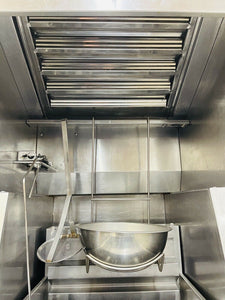

Ventless Hood 3-Stage Air Cleaning:
• The hood is UL listed for use with approved fryers only and features Giles’ proven 3-stage Electronic Air Cleaning, for capturing and removing grease-laden cooking vapors. Listed to UL-YZCT (-7 for Canada) and complies with ANSI/UL710B.
• Accommodates fryers from 10” to 24” wide.
• Exhaust air diverter minimizes required ceiling height clearance.
Standard Features:
❶ electrostatically captures & collects fine particulate
• Exhaust Air Diverter - reduces required ceiling clearance.
IMPORTANT INFORMATION !!
air.
Stage 1 - Stainless steel baffle filter traps large grease
• Built-in Fire Suppression system
particulate.
• PUSH-TO-START switch ... hood must be manually restarted after any power interruption, in order to power appliance underneath.
Stage 2 - Sustainable Electronic Air Cleaner (E.A.C.)
• Adjustable leveling legs.
on fins within the cell.
Stage 3 - Disposable charcoal filter helps to control cooking odors in the recirculated
Orders for GILES Recirculating/Ventless Hood systems will not be accepted until Giles verifies, 1). that the Purchaser has received all necessary approvals from local authorities, 2). that the appliances to be used are within the hood’s listing limitations, and 3). that the Purchaser is aware of specific installation site requirements/limitations (as stated in the GFSE Recirculating/Ventless Hood Approval Letter) which must be complied with during installation. The GFSE Hood Approval Letter (HAL) must be completed, submitted (along with any requested documentation), and approved by Giles prior to order acceptance. The document is available for download at www.gfse.com under the SUPPORT tab in VENTLESS DOCUMENTS.
• Complete Filter Set.
Appliance Limitations:
IMPORTANT! HOOD LISTED ONLY FOR USE WITH ELECTRICALLY HEATED FRYERS ... NO GAS Hood listed for FRYERS only ... must comform to the following limits:
• Maximum power: 20 kW
• Maximum cooking surface area: 380 sq in [2,452 sq cm] • Maximum cooking temp (fryers): 350°F [177°C]
• Maximum shortening capacity: 110 lbs [50 kg]
• Fryer width (side to side): 10” [254 mm] to 24” [610 mm]
We Ship worldwide. Shipping to a commercial address is $399. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
