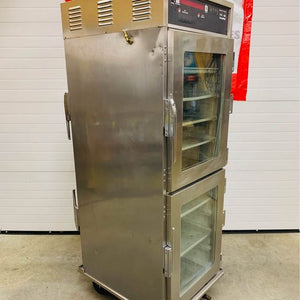

SmartHold® HoldingCabinet with automatic humidity control
HHC980 Fullsize Tested & Working!
SmartHold® HoldingCabinet with automatic humidity control
HHC980 Fullsize
delicious foods that look and taste like they were freshly prepared. Traditional “hard-to-hold” items like pizza can be held twice as long as most holding cabinets.
The SmartHold HHC 980 gives you the control to hold at lower temperatures—as low as 140°F (60°C). Great for delicate items like baked fish, eggs, baked potatoes and rice. And with autofill feature, the water pan never runs low.
Fully insulated cabinet and tight sealing doors contribute to energy efficient operation. Quick-response humidity generation helps maintain precise humidity and food quality during use. Self-closing doors provide for more efficient workflow.
Operators can choose from two different shelf runner styles to better match their application.
Please specify desired configuration
Doors
Stainless steel
Double-pane glass Door hinge
Right
Left
Shelf runners (see back) 10 L-profile
10 C-profile
Style
Pass-through
Solid back
HHC 980 SmartHold full-size heated holding cabinet with automatic humidity control
Standard Features
• Patented closed loop humidity control:
Maintains any humidity level between 10% and 90% RH
Exclusive automatic venting
Self-diagnostic system
Easy to clean and service
• Constant humidity/temperature display
• Separate humidity/temperature set points
• Lower holding range: 140° (60° C)
• 3 gal (11.4 L) stainless steel
recessed heated water pan
• Automatic water fill
• Low water warning light
• Timer alert signal
• Quick-response humidity
generation
Henny Penny SmartHold humidified holding cabinets create and maintain ideal conditions for holding a wide variety of hot foods over extended periods of time prior to serving.
The SmartHold patented automatic humidity control system links water pan heat, fans, and ventilation. This closed loop control automatically measures and maintains precise humidity levels in one-percent increments from 10% to 90% relative humidity.
With such precise humidity control, operators can hold practically any type of food for exceptionally long periods of time without sacrificing freshness or presentation. This translates into higher food quality and less waste throughout the day.
Longer holding times give you the ability to cook in larger quantities during off-peak hours and still serve
• Dual heavy-duty blower motors
• Ventilated side racks
• Fully insulated doors, sidewalls and
control module
• Full perimeter door gasket
• 10 shelf runners, choice of L or C
profile
• Partial pan removal for convenient
loading and unloading (C-profile
runners, only)
• Self-closing, lift-off doors stay open
past 90 degrees
• Magnetic door latch and heavy-duty
plated hinges
• Stainless steel construction for
easy cleaning and long life
• 4 casters, 5 in (127 mm), 2 locking • Optional hose drain connection
APPROVED APPROVED AS NOTED RESUBMIT
AUTHORIZED SIGNATURE DATE
© 2006 Henny Penny Corporation, Eaton, OH 45320 USA Revised 06/15/2015
PROJECT ITEM NO
SmartHold® HoldingCabinet with automatic humidity control
HHC980Fullsize
Cold water connection for auto fill
External drain
Power cord from back or top
FRONT
72.25 in (1835 mm)
PLAN
24.75 in (628 mm)
31.75 in (806 mm)
Dimensions
Heat
140°– 210°F (60°– 99°C)
Humidity
OFF/ON 10%–90% RH
Water pan 3.0 gal (11.4 L)
2.0 gal (7.6 L) for operational use 0.25 in connection for auto water fill External drain connection
Capacity
Full-size sheet pans 18 x 26 in (457 x 660 mm) 10 shelf runners on 4.88 in (124 mm) centers Please specify configuration:
L-profile
Bidding specifications
Provide Henny Penny SmartHold model HHC 980 full- size humidified holding cabinet designed to generate ideal conditions for holding a wide variety of hot foods in quality condition for very long periods of time.
Unit shall incorporate:
• A patented closed loop control system to regulate
precise temperatures and humidity levels
• Lower temperature limit 140°F (60°C) in normal
holding range
• 3 gal (11.4 L) recessed water pan with auto water fill • Choice of L-profile or C-profile shelf runners
• 300 grade stainless steel construction throughout
• Full cabinet circulation with two heavy-duty blower
motors and ventilated side racks
• Perimeter door gasket, fully insulated sidewalls and
control module
• 4 heavy-duty casters, 2 locking
Height Width Depth
Crated
Length Depth Height Volume Weight
72.25 in 24.75 in 31.75 in
75 in 36 in 31 in 48 ft3 367 lb
(1835 mm) (628 mm) (806 mm)
(1900 mm) (900 mm) (790 mm) (1.4 m3) (167 kg)
Required clearances N/A
Electrical
Volts Phase
120 1
Hertz
50/60
C-profile kW Amps Wire
2.88 24.0 2+G
Optional power cord and plug for USA and Canada
120 V high NEMA 5-30P
240 V low NEMA 6-15P
208 V high NEMA 6-20P
We Ship worldwide. Shipping to a commercial address is $149. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
